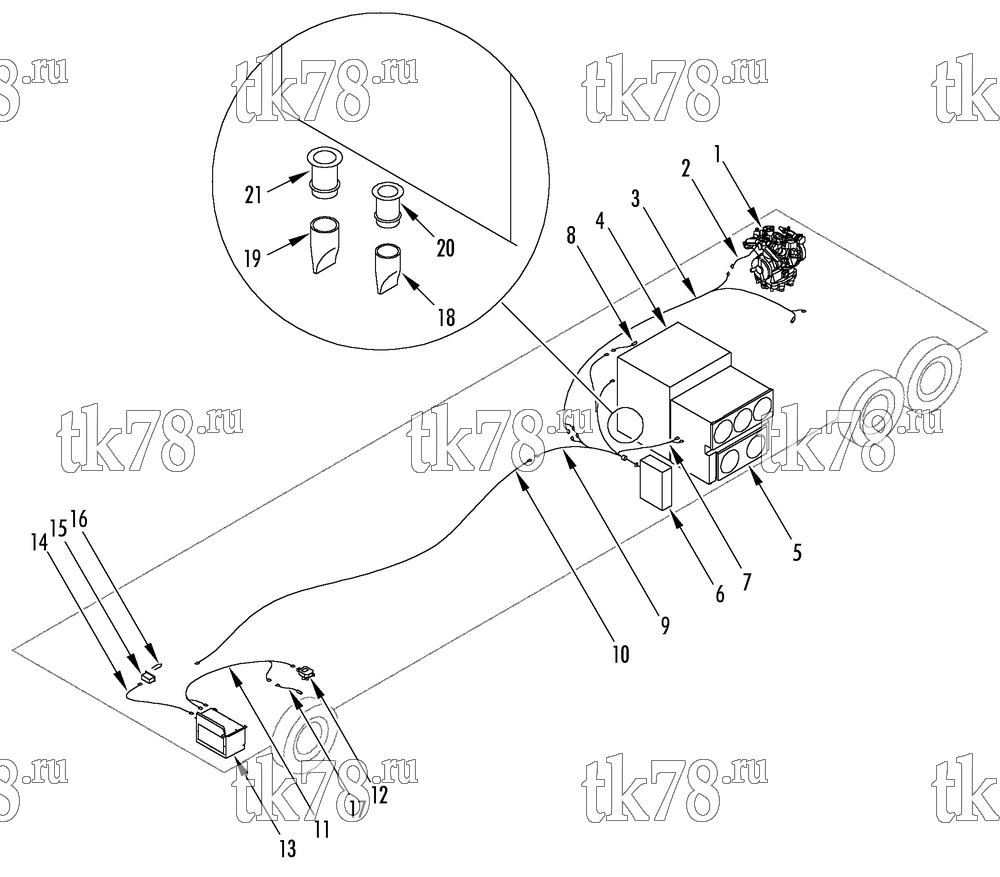

Установкa Thermo King схема UNIT COMPONENTS – 166F3
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see166H9) | 1 | |
| 2 | 41-4130 | HARNESS - compressor (see 166H9) | 1 | |
| 3 | 41-4138 | HARNESS - compressor compartment | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 4 | NSS | CONDENSER - section (see 166E4) | 1 | |
| 5 | NSS | EVAPORATOR - section (see 166F2) | 1 | |
| 6 | NSS | CONTROL - panel (see 166E5) | 1 | |
| 7 | 41-4137 | HARNESS - main | 1 | |
| 44-7872 | CONNECTOR - tower (6-pin) | 2 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-7884 | CONNECTOR - shroud (22-pin) | 1 | ||
| 44-7811 | LOCK - secondary | 2 | ||
| 44-7812 | PLUG - cavity (green) | 3 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 8 | 41-7706 | SENSOR - temperature (return air) | 2 | |
| 9 | 41-4134 | HARNESS - control panel | 1 | |
| 44-7829 | CONNECTOR - tower (22-pin) | 1 | ||
| 44-7811 | LOCK - secondary (nylon) | 2 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 41-4281 | CONNECTOR (6 terminal) | 1 | ||
| 41-4282 | LOCK - connector | 1 | ||
| 10 | 41-4141 | HARNESS - panel to door | 1 | |
| 41-4283 | CONNECTOR (6 terminal) | 2 | ||
| 11 | 41-4139 | HARNESS - door sensor | 1 | |
| 44-5835 | CONNECTOR - shroud (2 terminal) | 1 | ||
| 41-3288 | CONNECTOR - fresh air damper | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 12 | 41-3255 | ACTUATOR - passenger fresh air damper | 1 | |
| 13 | NSS | DRIVERS BOX (see 166E8) | 1 | |
| 14 | 41-4140 | HARNESS - display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 15 | 41-7200 | MODULE - display | 1 | |
| 16 | 92-1216 | KEY - din (display module) | 1 | |
| 17 | 40-975 | KIT - temperature sensor (ambient air) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 18 | 66-1273 | VALVE - check (drain hose, .875 dia) | 4 | |
| 19 | 92-1421 | VALVE - check (drain hose, 2.0 dia) | 2 | |
| 20 | 92-1422 | DRAIN - evaporator (0.875 dia) | 2 | |
| 21 | 92-1423 | DRAIN - evaporator (2.0 dia) | 2 |
