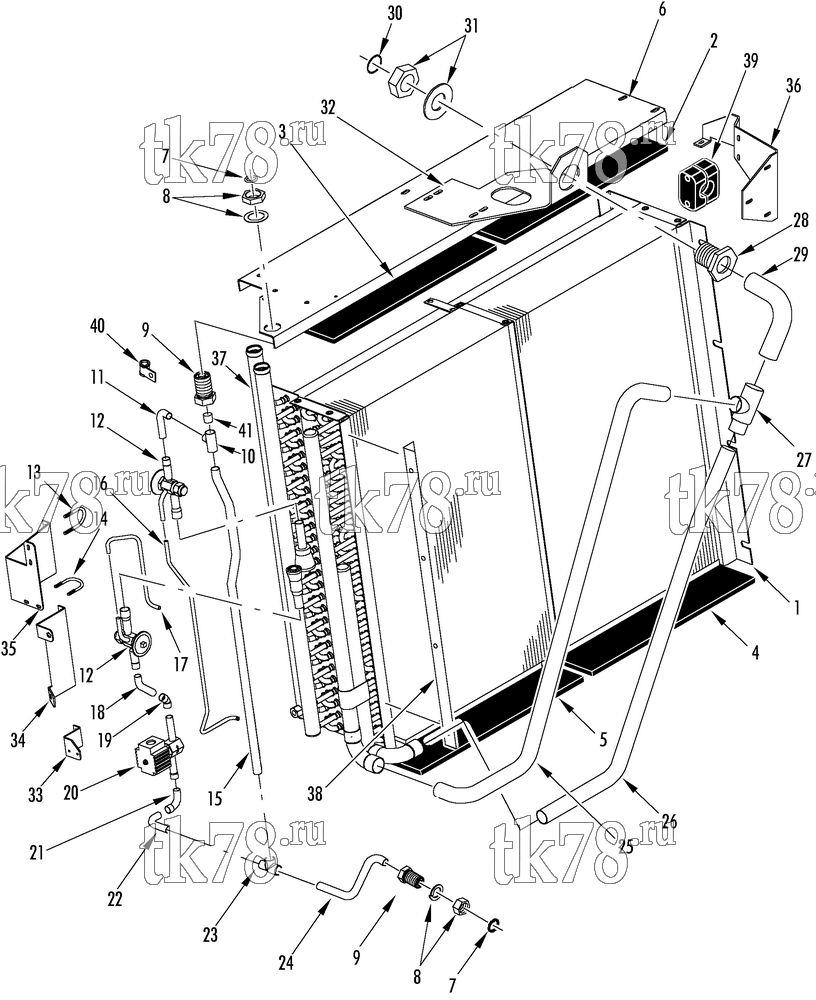

Установкa Thermo King схема EVAPORATOR REFRIGERATION – 166F1
Обновление от: 1/20/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1748 | COIL - evaporator | 1 | |
| 2 | 33-3348 | INSULATION | 1 | |
| 3 | 33-3349 | INSULATION | 1 | |
| 4 | 33-3350 | INSULATION | 1 | |
| 5 | 33-3351 | INSULATION | 1 | |
| 6 | 92-1190 | COVER - coils | 1 | |
| 55-7035 | SCREW - cover | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4414 | WASHER - special | 6 | ||
| 7 | 33-2193 | GASKET - o-ring (11/16 id) | 1 | |
| 8 | 55-6812 | NUT - bulkhead | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 9 | 55-9699 | ADAPTER - bulkhead (#12) | 2 | |
| 10 | 66-620 | TEE (5/8 x 5/8 x 1/2) | 1 | |
| 11 | 61-855 | TUBE - tee to expansion valve | 1 | |
| 12 | 61-922 | VALVE - expansion | 2 | |
| 13 | 55-3547 | U-BOLT - expansion valve | 1 | |
| 14 | 55-6788 | U-BOLT - distributor | 1 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 15 | 61-856 | TUBE - tee to tee (liquid) | 1 | |
| 16 | 61-861 | TUBE - equalizer (#1) | 1 | |
| 17 | 61-860 | TUBE - equalizer (#2) | 1 | |
| 18 | 61-854 | TUBE - elbow to expansion valve | 1 | |
| 55-7013 | CLAMP - tube | 2 | ||
| 19 | 66-4012 | ELBOW | 1 | |
| 20 | 61-869 | VALVE - solenoid (see 166F5) | 1 | |
| 41-4145 | COIL - valve | 1 | ||
| 21 | 55-2183 | ELBOW | 1 | |
| 22 | 61-853 | TUBE - tee to elbow (liquid) | 1 | |
| 23 | 55-5678 | TEE (5/8 x 1/2 x 5/8) | 1 | |
| 24 | 61-857 | TUBE - tee to bulkhead (liquid) | 1 | |
| 25 | 61-859 | TUBE - suction | 1 | |
| 26 | 61-858 | TUBE - suction | 1 | |
| 27 | 55-4308 | TEE - suction (1-3/8 x 1-1/8 x 1-1/8) | 1 | |
| 28 | 61-852 | TUBE - tee to bulkhead | 1 | |
| 29 | 55-6570 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 30 | 33-920 | O-RING (1-1/2 id, 1/8 wide) | 1 | |
| 31 | 55-5999 | LOCKWASHER (2.01 id) | 1 | |
| 55-9422 | NUT - bulkhead adapter (2-12) | 1 | ||
| 32 | 92-1189 | PLATE - suction tube | 1 | |
| 33 | 92-1186 | BRACKET - solenoid | 1 | |
| 34 | 92-1188 | BRACKET - exp/distr (lower) | 1 | |
| 35 | 92-1185 | BRACKET - exp/distr (upper) | 1 | |
| 36 | 92-1187 | BRACKET - bulkhead (suction) | 1 | |
| 37 | 67-1749 | COIL - heater (see 167G0) | 1 | |
| 38 | 92-1184 | BRACKET - support | 1 | |
| 39 | 55-6020 | CLAMP - tube | 2 | |
| 55-9759 | SCREW - clamp | 2 | ||
| 55-4414 | WASHER - special | 4 | ||
| 55-7042 | NUT | 2 | ||
| 40 | 55-4865 | CLAMP (0.562 dia) | 1 | |
| 41 | 61-2155 | TUBE - liquid | 1 |
