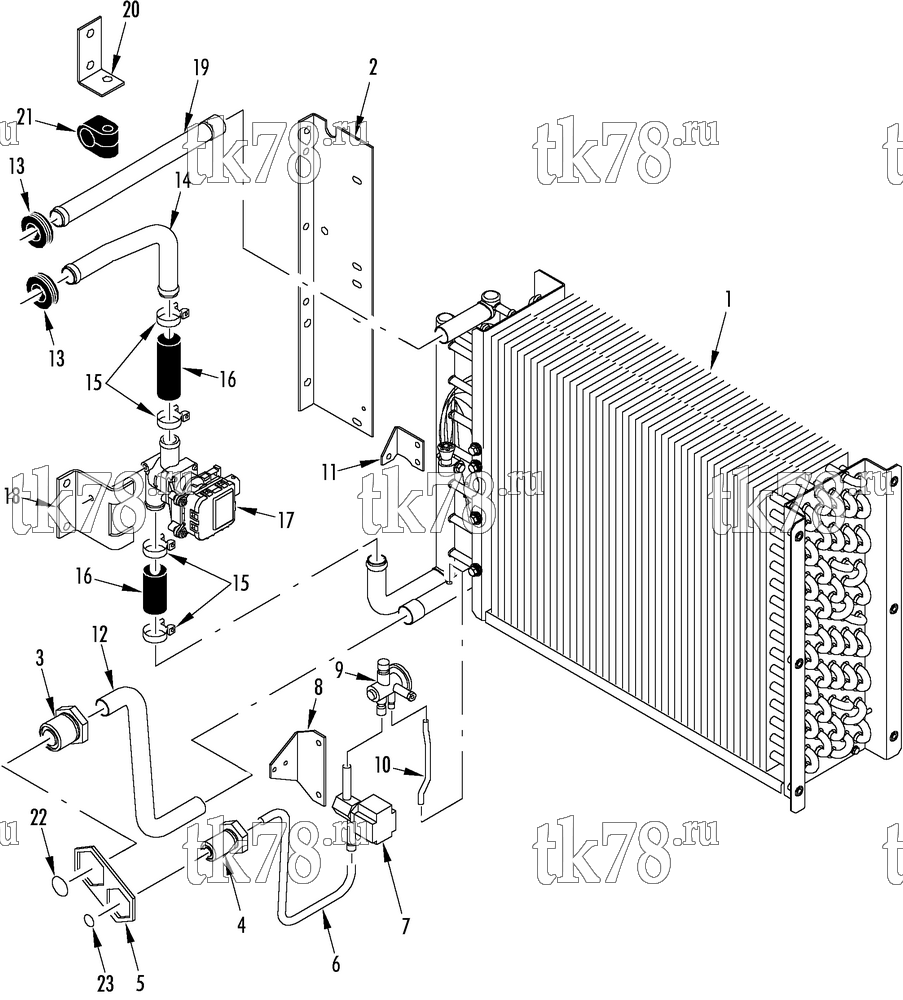

Установкa Thermo King схема DRIVER REFRIGERATION & HEATING – 166E6
Обновление от: 5/23/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1750 | COIL - driver | 1 | |
| 2 | 92-1209 | BRACKET - coil mounting | 1 | |
| 3 | 66-5247 | ADAPTER - bulkhead (#16, o-ring seal) | 1 | |
| 55-5741 | LOCKWASHER (1.5 id) | 1 | ||
| 55-7111 | NUT - bulkhead adapter (1-7/16-12) | 1 | ||
| 4 | 55-7064 | ADAPTER - bulkhead (#10, o-ring seal) | 1 | |
| 55-6843 | LOCKWASHER (1.02 id) | 1 | ||
| 55-6811 | NUT - bulkhead adapter (1-14) | 1 | ||
| 5 | 92-1301 | PLATE - retainer | 1 | |
| 6 | 61-867 | TUBE - liquid line bulkhead | 1 | |
| 55-1804 | BUSHING | 1 | ||
| 7 | 66-8021 | VALVE - solenoid (see 138B12) | 1 | |
| 8 | 92-1202 | BRACKET - liquid valve mounting | 1 | |
| 9 | 61-863 | VALVE - expansion | 1 | |
| 10 | 61-864 | TUBE - equalizer | 1 | |
| 11 | 61-865 | BRACKET - distributor mounting | 1 | |
| 12 | 61-921 | TUBE - suction bulkhead | 1 | |
| 13 | 33-452 | GROMMET (0.875 id, .125 groove) | 2 | |
| 14 | 61-866 | TUBE - heater inlet | 1 | |
| 15 | 92-1213 | CLAMP - hose | 4 | |
| 16 | 11-9334 | HOSE (0.875 id, silicone rubber) | A/R | |
| 17 | 61-862 | VALVE - water | 1 | |
| 18 | 92-1207 | BRACKET - water valve | 1 | |
| 19 | 61-868 | TUBE - heater outlet | 1 | |
| 20 | 92-1302 | BRACKET - heater tube support | 1 | |
| 21 | 55-6389 | CLAMP - tube | 1 | |
| 22 | 33-1785 | O-RING - suction (15/16 id) | 1 | |
| 23 | 33-1223 | O-RING - discharge (9/16 id) | 1 |
