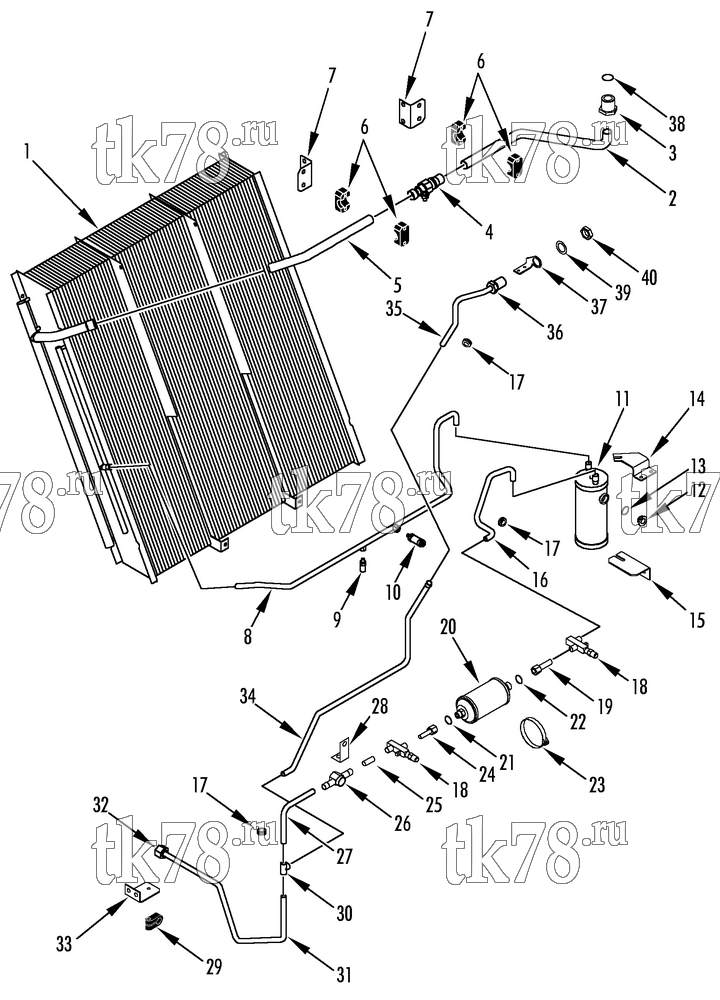

Установкa Thermo King схема CONDENSER REFRIGERATION – 166E3
Обновление от: 3/19/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1747 | COIL - condenser (see 166E2) | 1 | |
| 2 | 61-845 | TUBE - discharge valve to o-ring seal | 1 | |
| 3 | 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 55-9231 | NUT - adapter | 1 | ||
| 55-5742 | LOCKWASHER | 1 | ||
| 4 | 61-846 | VALVE - ball | 1 | |
| 61-3842 | CAP - service port | 1 | ||
| 5 | 61-847 | TUBE - discharge to valve | 1 | |
| 6 | 92-315 | CLAMP - discharge tube | 4 | |
| 55-4414 | WASHER - special | 4 | ||
| 55-7029 | SCREW - clamp | 4 | ||
| 7 | 92-1171 | BRACKET - discharge valve | 2 | |
| 55-7035 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-9698 | INSERT - threaded | 4 | ||
| 8 | 61-844 | TUBE - tank in | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 99-3060 | FITTING - saddle | 1 | ||
| 9 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 10 | 41-7956 | TRANSDUCER - discharge pressure | 1 | |
| 11 | 61-225 | TANK - receiver | 1 | |
| 12 | 66-9918 | INDICATOR - liquid | 1 | |
| 13 | 33-2419 | O-RING | 1 | |
| 55-7144 | WASHER - special | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-4955 | NUT - tank | 2 | ||
| 14 | 92-1172 | BRACKET - top | 1 | |
| 15 | 92-1170 | BRACKET - bottom | 1 | |
| 55-6993 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-9698 | INSERT - threaded | 4 | ||
| 16 | 61-843 | TUBE - liquid out | 1 | |
| 17 | 33-2780 | GROMMET | 4 | |
| 18 | 66-7899 | VALVE - shutoff | 2 | |
| 19 | 66-6110 | TUBE - valve to dehydrator | 1 | |
| 55-6356 | SHOULDER - o-ring | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 20 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 21 | 33-2115 | O-RING (5/8) | 1 | |
| 22 | 33-566 | O-RING (1/2) | 1 | |
| 23 | 55-7800 | CLAMP - dehydrator | 2 | |
| 24 | 55-6838 | NUT - shoulder | 1 | |
| 55-6837 | SHOULDER - o-ring | 1 | ||
| 55-2182 | BUSHING | 1 | ||
| 66-9192 | TUBE | 1 | ||
| 25 | 61-226 | TUBE - valve to indicator | 1 | |
| 26 | 66-2648 | INDICATOR - liquid | 1 | |
| 27 | 61-842 | TUBE - sight glass to tee | 1 | |
| 28 | 92-1173 | BRACKET - sight glass | 1 | |
| 29 | 91-758 | CLAMP - tube | 7 | |
| 55-7027 | SCREW - clamp | 7 | ||
| 30 | 55-904 | TEE (5/8C x 5/8C x 5/8C) | 1 | |
| 31 | 61-848 | TUBE - liquid sight glass out | 1 | |
| 32 | 55-7052 | SLEEVE - adapter (#12) | 1 | |
| 55-7054 | NUT - shoulder | 1 | ||
| 33 | 61-849 | BRACKET - liquid line | 1 | |
| 34 | 61-850 | TUBE - tee to adapter (#1) | 1 | |
| 35 | 61-851 | TUBE - tee to adapter (#2) | 1 | |
| 36 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 37 | 92-1174 | BRACKET - liquid o-ring seal | 1 | |
| 38 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 39 | 33-2193 | O-RING (11/16 id) | 1 | |
| 40 | 55-6812 | NUT - bulkhead | 1 | |
| 55-7199 | LOCKWASHER | 1 |
