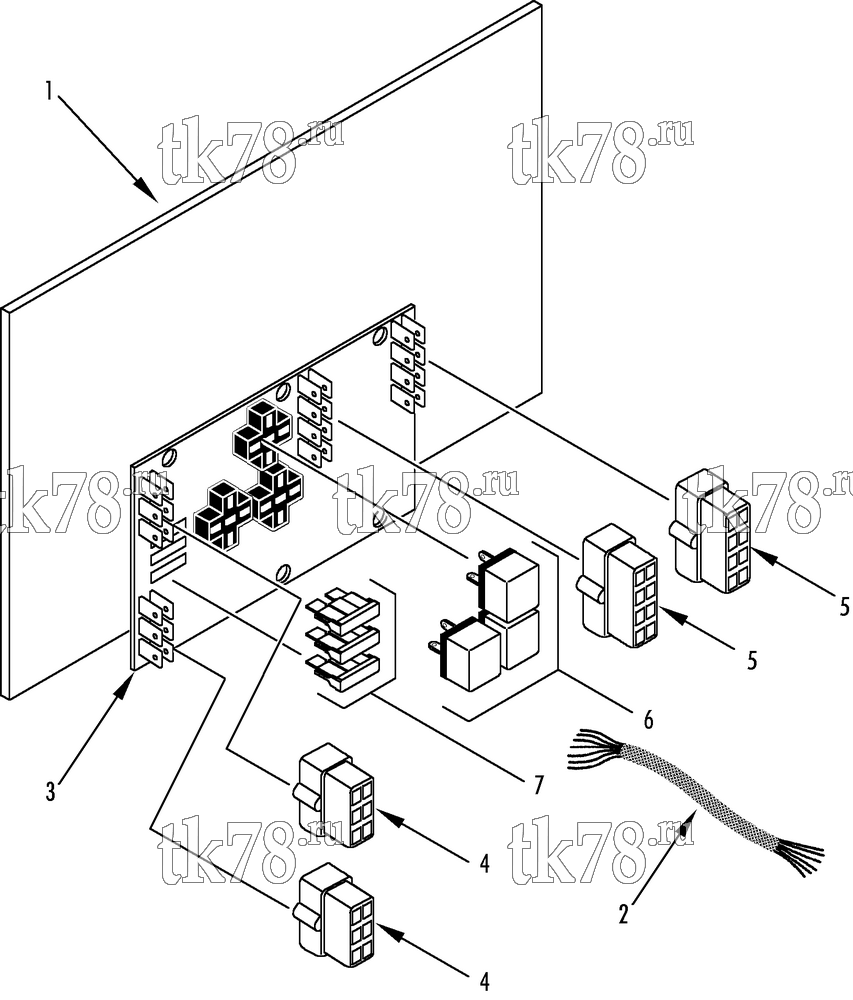

Установкa Thermo King схема CONTROL BOX (VM-400 10) – 165D8
Обновление от: 7/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-923 | BRACKET - control box | 1 | |
| 55-8227 | SCREW - bracket (M4 x 20) | 6 | ||
| 55-7340 | SCREW - bracket (M5 x 10) | 1 | ||
| 55-7404 | LOCKWASHER | 10 | ||
| 2 | 41-4050 | HARNESS - control box | 1 | |
| 3 | 41-4258 | BOARD - printed circuit | 1 | |
| 55-7075 | FLATWASHER | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7354 | NUT | 8 | ||
| 4 | 41-876 | CONNECTOR (6-pin) | 2 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 2 | |
| 6 | 41-895 | RELAY (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 3 | ||
| 7 | 44-9758 | FUSE (10 amp, 24V unit) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp, 12V unit) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp, 24V unit) | 1 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 41-1259 | FUSE (25 amp, 12V unit) | 1 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
