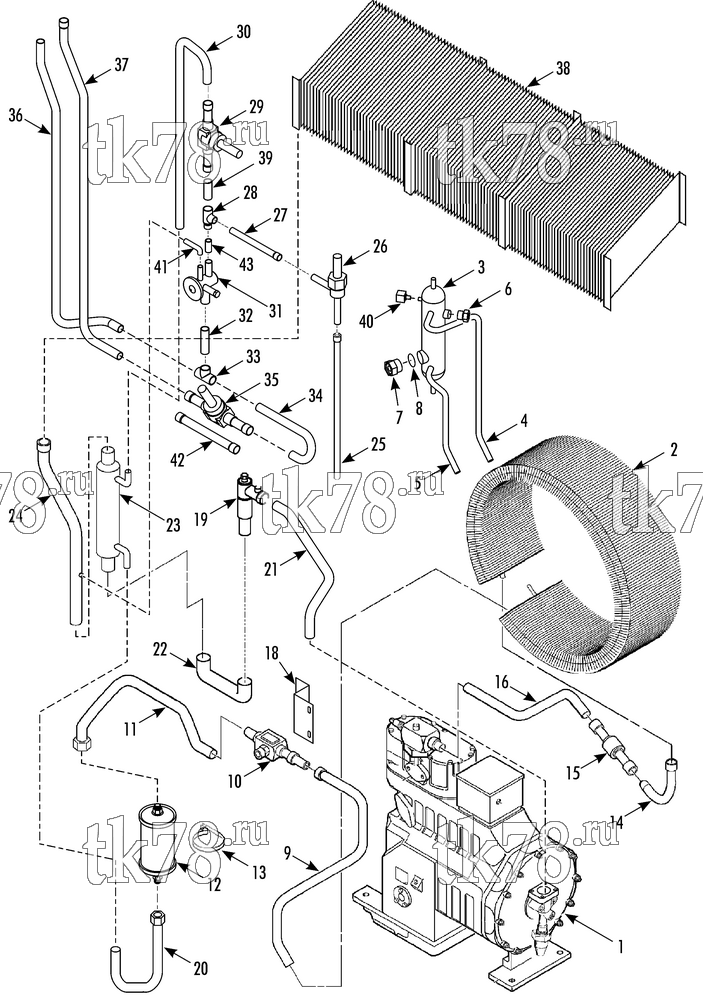

Установкa Thermo King схема REFRIGERATION COMPONENTS (DANFOSS VALVES) – 165C8
Обновление от: 6/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-743 | COMPRESSOR (CRR 40, see 165C9) | 1 | |
| 2 | 60-285 | COIL - condenser (copper fins) | 1 | |
| 60-310 | COIL - condenser (aluminum fins) | 1 | ||
| 33-2949 | GASKET - coil | A/R | ||
| 55-6694 | SCREW - coil | 7 | ||
| 55-6995 | FLATWASHER | 7 | ||
| 55-9054 | WASHER (nylon) | 7 | ||
| 3 | 67-1726 | TANK - receiver | 1 | |
| 4 | 66-9893 | TUBE - condenser to receiver | 1 | |
| 5 | 66-9894 | TUBE - receiver to condenser | 1 | |
| 6 | 506-364 | PLUG - fusible | 1 | |
| 7 | 66-8811 | SIGHT GLASS | 1 | |
| 8 | 33-3007 | GASKET | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 9 | 506-375 | TUBE - condenser to indicator | 1 | |
| 10 | 66-9125 | VALVE - shutoff | 1 | |
| 509-1635 | BRACKET - hand valve | 1 | ||
| 55-7843 | SCREW - valve | 2 | ||
| 55-7368 | WASHER | 2 | ||
| 11 | 61-695 | TUBE - indicator to drier | 1 | |
| 12 | 66-9015 | DEHYDRATOR | 1 | |
| 55-4390 | HANGER - dehydrator | 1 | ||
| 91-8620 | LABEL - dehydrator | 1 | ||
| 13 | 55-8938 | CLAMP - dehydrator | 1 | |
| 55-8891 | SCREW - bracket | 2 | ||
| 14 | 506-369 | TUBE - discharge | 1 | |
| 15 | 66-8467 | VALVE - check | 1 | |
| 16 | 506-370 | TUBE - discharge | 1 | |
| 17 | 66-9164 | TUBE - tee to valve | 1 | |
| 18 | 509-1635 | BRACKET - valve | 1 | |
| 55-8891 | SCREW - bracket | 2 | ||
| 19 | 66-9163 | KVQ - actuator (see 151A5) | 1 | |
| 20 | 61-696 | TUBE - heat exchanger to dehydrator | 1 | |
| 55-8951 | SHOULDER - seal | 1 | ||
| 55-8950 | NUT - shoulder | 1 | ||
| 21 | 61-697 | TUBE - KVQ to compressor | 1 | |
| 22 | 61-726 | TUBE - exchanger to KVQ | 1 | |
| 23 | 67-1650 | HEAT EXCHANGER | 1 | |
| 24 | 61-728 | TUBE - evaporator to exchanger | 1 | |
| 25 | 61-727 | TUBE - solenoid to KVQ | 1 | |
| 26 | 66-9168 | VALVE - solenoid (less coil, pulse) | 1 | |
| 41-5460 | COIL (24V) | 1 | ||
| 27 | 66-9868 | TUBE - valve to tee | 1 | |
| 28 | 55-6218 | TEE | 1 | |
| 29 | 66-9167 | VALVE - solenoid (less coil, normally closed) | 1 | |
| 41-5460 | COIL (24V) | 1 | ||
| 30 | 61-725 | TUBE - valve to exchanger | 1 | |
| 31 | 66-9900 | VALVE - expansion | 1 | |
| 32 | 66-9165 | TUBE - valve to tee | 1 | |
| 33 | 55-2296 | TEE | 1 | |
| 34 | 66-9868 | TUBE - tee to valve | 1 | |
| 35 | 66-9032 | VALVE - solenoid (less coil, dehumidifier, see 146E5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 41-5460 | COIL (24V) | 1 | ||
| 36 | 61-723 | TUBE - valve to coil | 1 | |
| 37 | 61-724 | TUBE - tee to coil | 1 | |
| 38 | 67-1558 | COIL - evaporator (sse 152C1) | 1 | |
| 39 | 66-9035 | TUBE | 1 | |
| 40 | 66-6610 | ADAPTER - service | 1 | |
| 66-7182 | CAP - adapter | 1 | ||
| 41 | 66-9075 | TUBE - equalizer | 1 | |
| 42 | 66-9062 | TUBE - valve replacement | 1 |
