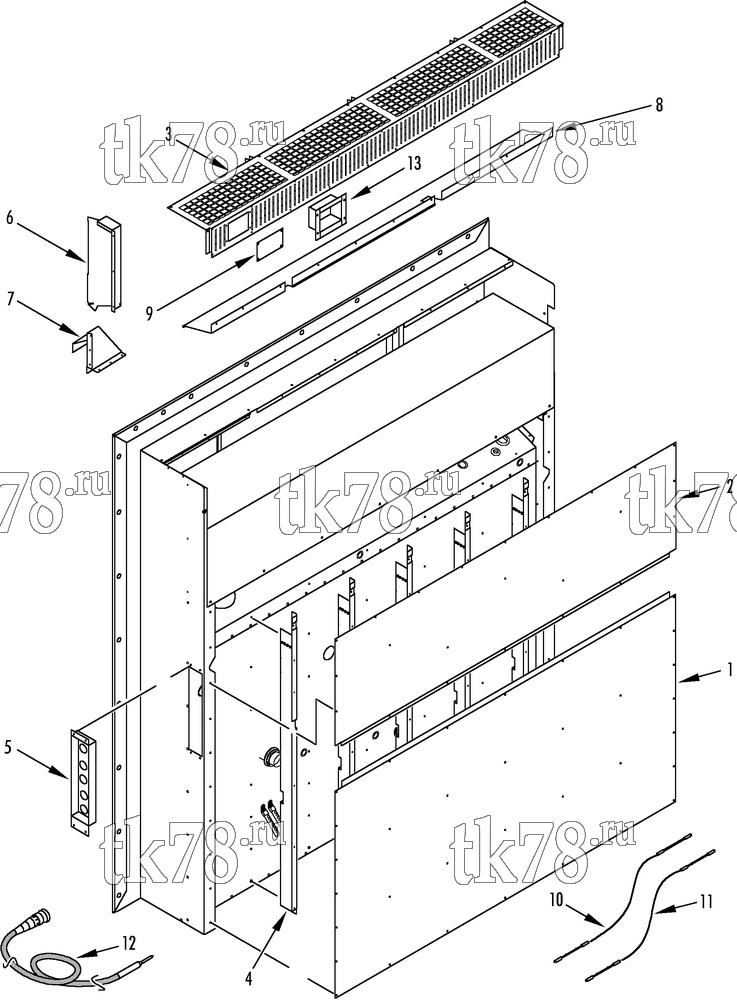

Установкa Thermo King схема EVAPORATOR PANELS (3 FAN UNITS) – 165A3
Обновление от: 1/6/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5773 | PLATE - rear (bottom) | 1 | |
| 2 | 98-5772 | PLATE - rear (top) | 1 | |
| 55-3136 | RIVET - plate | 57 | ||
| 3 | 98-5904 | GRILLE - evaporator (slim line) | 1 | |
| 98-5923 | GRILLE - evaporator | 1 | ||
| 98-5725 | GRILLE - evaporator (Transfresh, option 098152) | 1 | ||
| 55-2264 | RIVET - grille | 17 | ||
| 4 | 92-427 | CHANNEL - Z (100 mm deep) | 5 | |
| 92-2774 | CHANNEL - Z (slim line, 57 mm deep) | 5 | ||
| 55-9055 | RIVET - channel | 28 | ||
| 5 | NSS | PANEL - USDA receptacle (see 165A5) | 1 | |
| 6 | 91-9923 | CHANNEL - air | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 55-8891 | SCREW - channel | 6 | ||
| 7 | 91-9924 | INLET - fresh air | 1 | |
| 51-1417 | RIVET - inlet | 10 | ||
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 8 | 91-8136 | CHANNEL - fresh air | 1 | |
| 55-9162 | RIVET - channel | 8 | ||
| 9 | 98-5775 | PLATE - cover (Transfresh) | 1 | |
| 55-7713 | RIVET - plate | 4 | ||
| 10 | 41-2554 | CABLE - Transfresh (option 098150) | 1 | |
| 11 | 41-2555 | CABLE - Transfresh (option 098150) | 1 | |
| 12 | 41-5405 | SENSOR - PT100 (option 098106) | 2 | |
| 13 | 91-8715 | BOX - Transfresh (option 098152) | 1 | |
| 55-7713 | RIVET - box | 4 |
