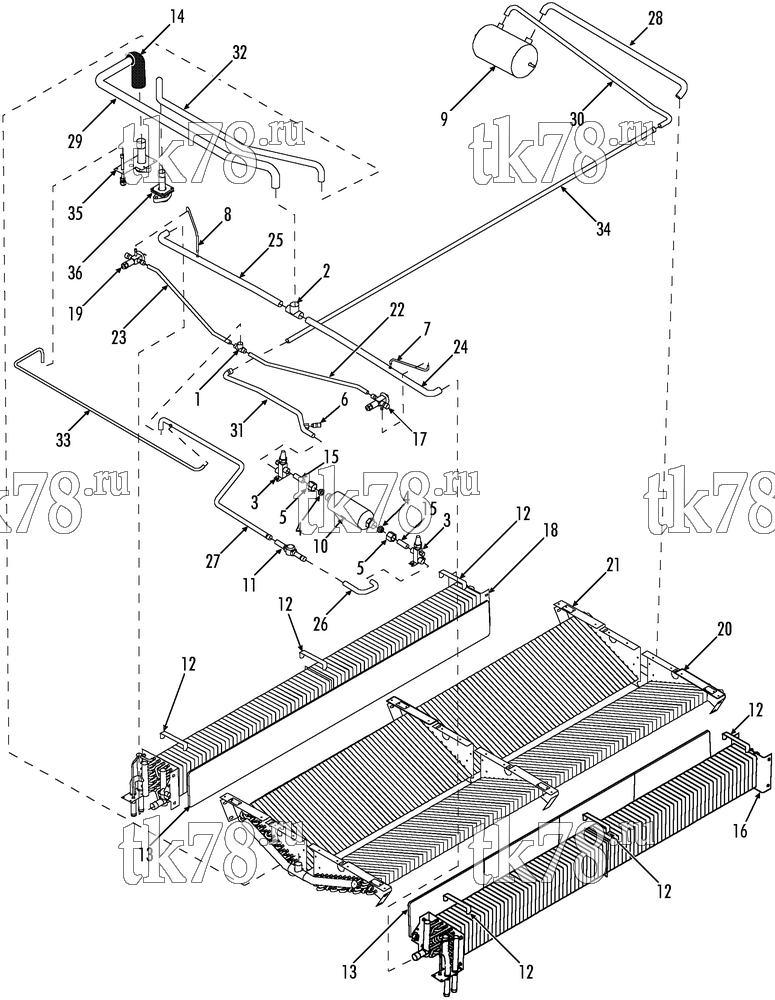

Установкa Thermo King схема REFRIGERATION COMPONENTS – 164H9
Обновление от: 9/7/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-1252 | TEE - liquid line (1/2 x 1/2 x 5/8) | 1 | |
| 2 | 55-6508 | TEE - suction (7/8 x 7/8 x 1-1/8) | 1 | |
| 3 | 66-2104 | VALVE - shutoff | 2 | |
| 55-7172 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 4 | 55-6356 | SHOULDER | 2 | |
| 5 | 55-6396 | NUT - shoulder | 2 | |
| 6 | 66-9356 | VALVE - relief | 1 | |
| 7 | 61-449 | TUBE - equalizer | 1 | |
| 8 | 61-450 | TUBE - equalizer | 1 | |
| 9 | 67-1520 | TANK - receiver | 1 | |
| 10 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 33-1223 | O-RING | 2 | ||
| 11 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 12 | 92-118 | CLIP | 6 | |
| 13 | 92-1283 | FILTER - air | 2 | |
| 14 | 92-145 | INSULATION - tube | 1 | |
| 15 | 66-9913 | TUBE - shutoff dehydrator | 2 | |
| 16 | 67-1777 | COIL - evaporator/heater (roadside) | 1 | |
| 17 | 61-444 | VALVE - expansion | 1 | |
| 18 | 67-1778 | COIL - evaporator/heater (curbside) | 1 | |
| 19 | 61-444 | VALVE - expansion | 1 | |
| 20 | 67-1694 | COIL - condenser (roadside, see 161D3) | 1 | |
| 21 | 67-1695 | COIL - condenser (curbside, see 161D3) | 1 | |
| 22 | 61-459 | TUBE - tee to expansion valve | 1 | |
| 23 | 61-460 | TUBE - tee to expansion valve | 1 | |
| 24 | 61-461 | TUBE - coil to tee | 1 | |
| 25 | 61-462 | TUBE - coil to tee | 1 | |
| 26 | 61-889 | TUBE - valve to indicator | 1 | |
| 27 | 61-1104 | TUBE - indicator to tee | 1 | |
| 28 | 61-1105 | TUBE - condenser to receiver tank | 1 | |
| 29 | 61-1106 | TUBE - tee to adapter outlet | 1 | |
| 30 | 61-1107 | TUBE - receiver tank to crossover tube | 1 | |
| 31 | 61-1108 | TUBE - crossover to valve | 1 | |
| 55-9183 | FITTING - saddle (relief valve) | 1 | ||
| 32 | 61-1109 | TUBE - adapter inlet to condenser | 1 | |
| 33 | 61-1110 | TUBE - front box | 1 | |
| 34 | 61-466 | TUBE | 1 | |
| 35 | NSS | ADAPTER - outlet (see 169B9) | 1 | |
| 36 | NSS | ADAPTER - inlet (see 169B8) | 1 |
