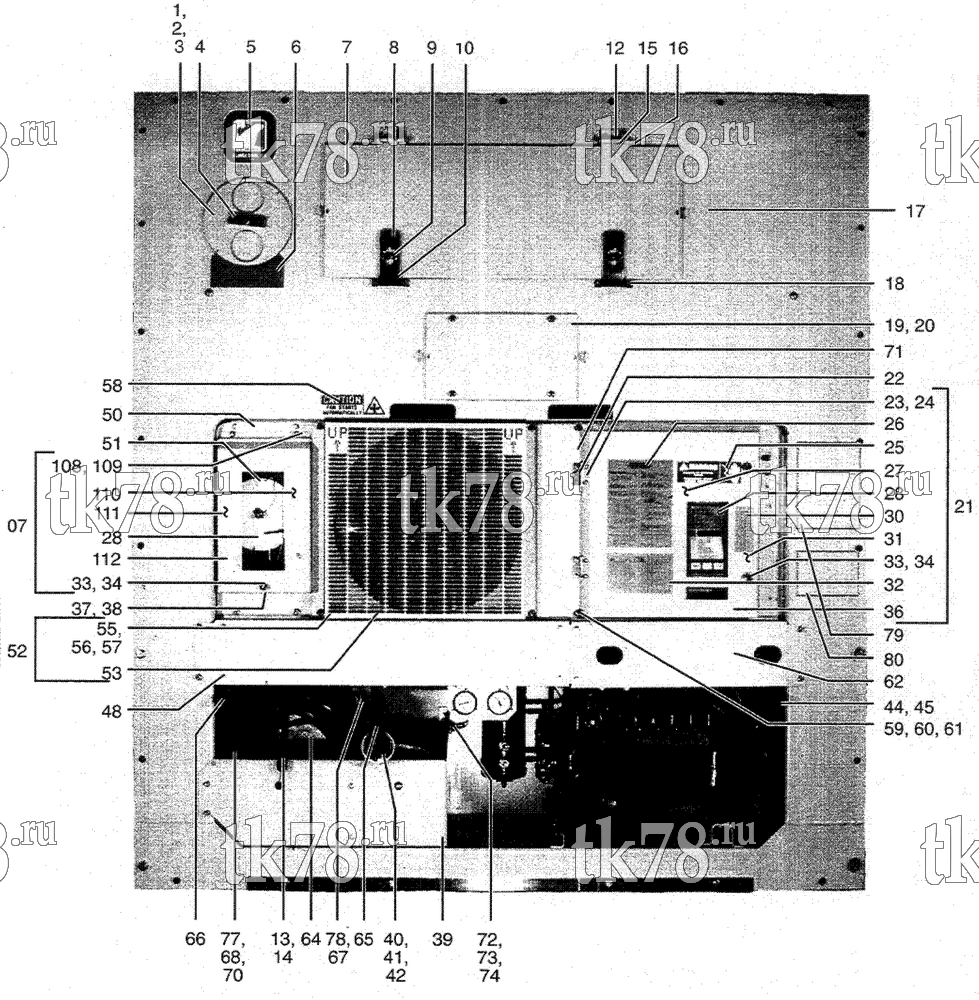

Установкa Thermo King схема REFRIGERATION UNIT - FRONT VIEW – 163G0
Обновление от: 9/10/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 509-691 | PLATE - ventilation (assembly, incl 2-3) (360-53099-00) | 1 | |
| 2 | 509-331 | PLATE - ventilation (060-53100-01) | 1 | |
| 3 | 503-221 | GASKET - air ventilation plate (K28-51593-00) | 1 | |
| 4 | 509-646 | HANDLE - ventilation lock (360-07913-00) | 1 | |
| 5 | 509-1756 | LABEL - Klinge Cool (K35-51994-15) | 1 | |
| 6 | 509-1130 | LABEL - air ventilation (K35-51723-00) | 1 | |
| 7 | 509-695 | DOOR - evap assembly (incl 8-16) (360-53137-00) | 1 | |
| 8 | 91-9041 | LATCH - door (360-07969-00) | 2 | |
| 9 | 91-9040 | KNOB - latch (060-07971-00) | 2 | |
| 10 | 91-8134 | INSULATOR - latch (K28-50067-14) | 2 | |
| 11 | 503-212 | GASKET - evaporator door (K28-51502-00) | 1 | |
| 12 | 505-111 | HINGE - complete (incl 15 & 16) (360-54170-00) | 2 | |
| 13 | 509-937 | RUBBERBAND (15 in) (K28-10691-00) | 1 | |
| 14 | 91-9039 | HOOK - rubber strap (K29-18490-00) | 1 | |
| 15 | 91-9081 | PIN - hinge (K29-51573-00) | 2 | |
| 16 | 509-219 | SPLIT PIN - hinge (K21-51567-00) | 2 | |
| 17 | 509-1092 | LABEL - customs sealed (K35-50048-00) | 6 | |
| 18 | 509-197 | KEEPER - door latch (060-07964-00) | 4 | |
| 19 | 509-690 | DOOR - heat assembly (incl 20) (360-53095-00) | 1 | |
| 20 | 503-227 | GASKET - heat door (K28-51619-00) | 1 | |
| 21 | DOOR | DOOR - electrical assembly (incl 23-28, 30-34, 36) (360-54954-00) | 1 | |
| 22 | 509-1005 | HINGE - complete (K29-17880-00) | 2 | |
| 23 | 91-9381 | HINGE - female part (K29-17880-01) | 2 | |
| 24 | 55-9392 | INSULATOR - hinge (K28-50067-02) | 2 | |
| 25 | LABEL | LABEL - warning (K35-04181-00) | 1 | |
| 26 | 509-1109 | LABEL - instruction (English) (K35-50095-00) | 1 | |
| 27 | 509-1141 | LABEL - electrical diagram (K35-51917-00) | 1 | |
| 28 | DOOR | DOOR - soft plexiglass (060-55758-00) | 1 | |
| 30 | 509-1056 | LABEL - converting F to C (K35-05610-00) | 1 | |
| 31 | 503-218 | GASKET - electrical door (K28-51588-00) | 1 | |
| 32 | 509-1115 | LABEL - alarm code (K35-51562-00) | 1 | |
| 33 | 55-9393 | SCREW - quick open (K21-16181-00) | 3 | |
| 34 | 55-8919 | RETAINER - screw (K21-16182-00) | 3 | |
| 36 | 509-470 | PLATE - door, electrical (060-54984-00) | 1 | |
| 37 | 509-679 | BRACKET (w/ receptacle) (360-50950-00) | 1 | |
| 38 | 55-8920 | RECEPTACLE (K21-16180-00) | 1 | |
| 39 | BRACKET | BRACKET - power cable box (060-54951-00) | 1 | |
| 40 | 504-210 | CABLE - power (w/ plug, 32A, 3x380/440V, incl 41-42) (360-51082-00) | 1 | |
| 41 | 41-1976 | PLUG - 4 pole (380/440V, 32A, ISO) (K25-20474-00) | 1 | |
| 42 | 504-104 | CABLE (4 x 4 mm, w/o plug) (060-51080-00) | 1 | |
| 44 | 509-368 | BRACKET - drain tube (060-53363-01) | 1 | |
| 45 | 506-108 | TUBE - drain (060-53651-12) | 2 | |
| 48 | 509-710 | BRACKET - front condenser coil (360-53325-00) | 1 | |
| 50 | BOX | RECORDER BOX (welded) (360-54956-00) | 1 | |
| 51 | K25-51859-01 | RECORDER | 1 | |
| 203-180 | CHART - recording (deg F) (500-31-F-50) | 50 | ||
| 203-219 | CHART - recording (deg C) (500-31-C-50) | 50 | ||
| 44-9780 | ELEMENT - assembly (K25-51859-10) | 1 | ||
| 44-9781 | INDICATOR - voltage (K25-51859-11) | 1 | ||
| 44-7782 | TIMER (K25-51859-12) | 1 | ||
| 91-4380 | RECORDER PLATE (K25-51859-13) | 1 | ||
| 505-390 | NUT - chart (K25-51859-14) | 1 | ||
| 509-912 | PEN ARM (K25-51859-15) | 1 | ||
| 52 | 509-685 | GRILLE - condenser fan (complete, incl 53, 55-57) (360-53055-00) | 1 | |
| 53 | 509-301 | GRILLE PLATE - condenser fan (060-53071-01) | 1 | |
| 55 | 505-188 | SCREW (K21-16190-00) | 4 | |
| 56 | 55-9541 | WASHER - screw (nylon) (K21-50490-08) | 4 | |
| 57 | 55-8919 | RETAINER (nylon) (K21-16182-00) | 4 | |
| 58 | 509-1048 | LABEL - caution (K35-04602-00) | 1 | |
| 59 | 505-188 | SCREW (K21-16190-00) | 2 | |
| 60 | 55-9541 | WASHER - screw (nylon) (K21-50490-08) | 2 | |
| 61 | 55-8919 | RETAINER (nylon) (K21-16182-00) | 2 | |
| 62 | 509-707 | PLATE COVER - compressor (360-53269-00) | 1 | |
| 64 | 504-895 | TRANSFORMER - dual voltage (15 KVA) (K25-51799-00) | 1 | |
| 65 | PLATE | PLATE - power cable separating (060-54952-00) | 1 | |
| 66 | 504-1031 | INSULATOR - transformer (K28-51775-00) | 2 | |
| 67 | 504-564 | TERMINAL - splice end (K25-16557-00) | 6 | |
| 68 | 41-2490 | CABLE (4 x 6 mm, w/o plug) (060-50118-00) | 1 | |
| 70 | 504-867 | PLUG - 4 pole (220/240V, 60A, ISO) (K25-51683-00) | 1 | |
| 71 | PLATE | SECURING PLATE - door (060-54957-00) | 1 | |
| 72 | 504-1427 | SOCKET - remote monitoring (K25-50034-00) | 1 | |
| 73 | 504-804 | CAP - remote monitoring socket (K25-50033-00) | 1 | |
| 74 | 504-224 | CABLE - remote monitoring socket (complete) (360-53160-12) | 1 | |
| 77 | 504-200 | CABLE - power (w/ plug, 60A, 3x220/240V, incl 68-70) (360-50115-00) | 1 | |
| 78 | 504-893 | PLUG - female adapter (K25-51794-00) | 1 | |
| 79 | 509-1134 | LABEL - instruction (Chinese) (K35-51797-00) | 1 | |
| 80 | 509-1135 | LABEL - alarm code (Chinese) (K35-51804-00) | 1 | |
| 107 | 509-747 | DOOR - recorder box (complete, incl 28,33-34, 108-112) (360-54971-00) | 1 | |
| 108 | 509-1021 | PIN - hinge (K29-58807-00) | 1 | |
| 109 | 505-257 | SPLIT PIN (K21-58813-14) | 1 | |
| 110 | BRACKET | BRACKET (door open) (060-54964-00) | 1 | |
| 111 | 503-241 | GASKET - door (K28-51996-00) | 1 | |
| 112 | DOOR | DOOR - plate (360-54969-00) | 1 |
