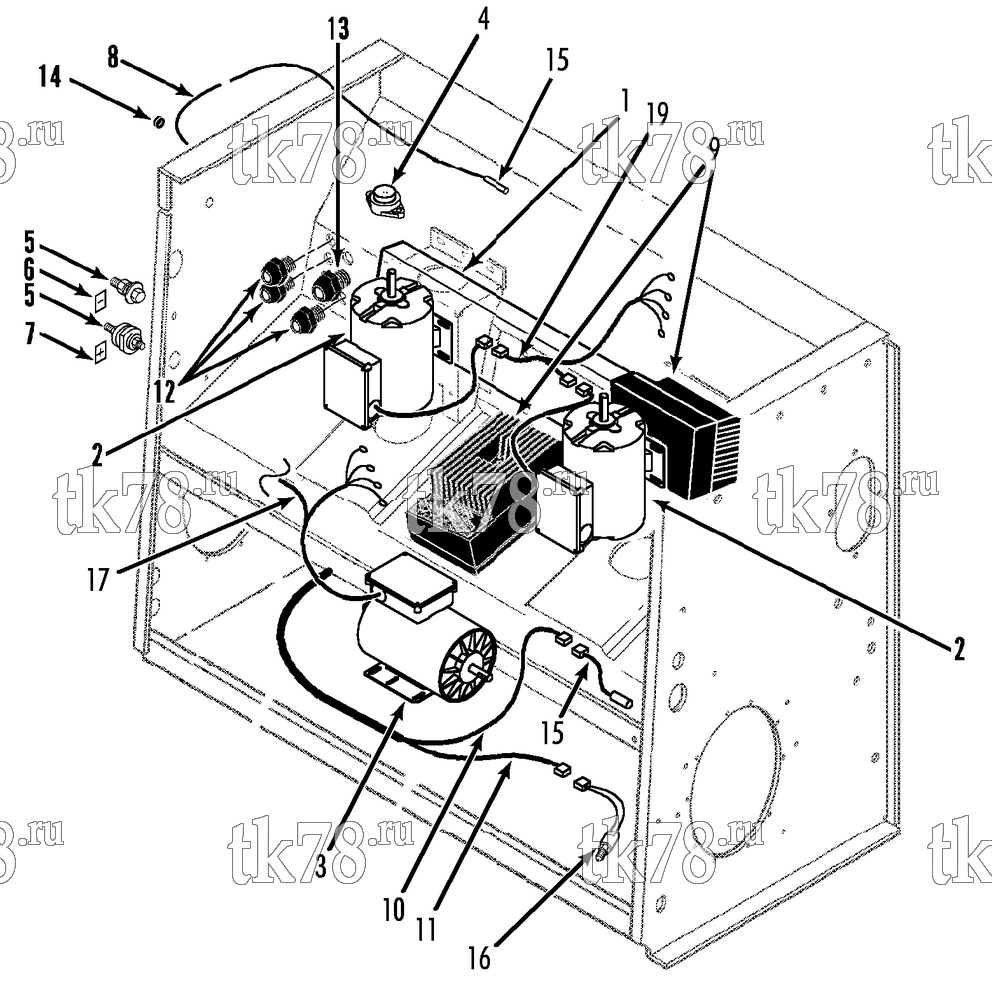

Установкa Thermo King схема ELECTRICAL COMPONENTS – 163F1
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 142A1) | 1 | |
| 2 | 104-740 | MOTOR - condenser | 2 | |
| 3 | 104-741 | MOTOR - evaporator | 1 | |
| 4 | 44-5034 | SWITCH - ambient thermostat | 1 | |
| 5 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | WASHER - spacer (polyester) | 1 | ||
| 55-671 | NUT | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 6 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 7 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 8 | 44-1246 | HARNESS - ambient sensor (for connectors see 115D14) | 1 | |
| 9 | 41-3590 | CONTROLLER - motor | 2 | |
| 55-2991 | SCREW - controller | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 10 | 41-3571 | HARNESS - coil temperature sensor | 1 | |
| 11 | 41-3624 | HARNESS - condenser pressure switch | 1 | |
| 12 | 55-5900 | CONNECTOR - liquid tite | 3 | |
| 13 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 14 | 33-1692 | GROMMET (3/8 id, 3/16 groove) | 2 | |
| 33-547 | GROMMET (3/8 id, 1/8) | 1 | ||
| 33-316 | GROMMET (1 id, 3/16) | 1 | ||
| 15 | 40-975 | KIT - temperature sensor (ambient air) | 3 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 16 | 44-6965 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only | 1 | ||
| 17 | 41-3622 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 19 | 41-3623 | HARNESS - condenser (for connectors see 115D14) | 1 |
