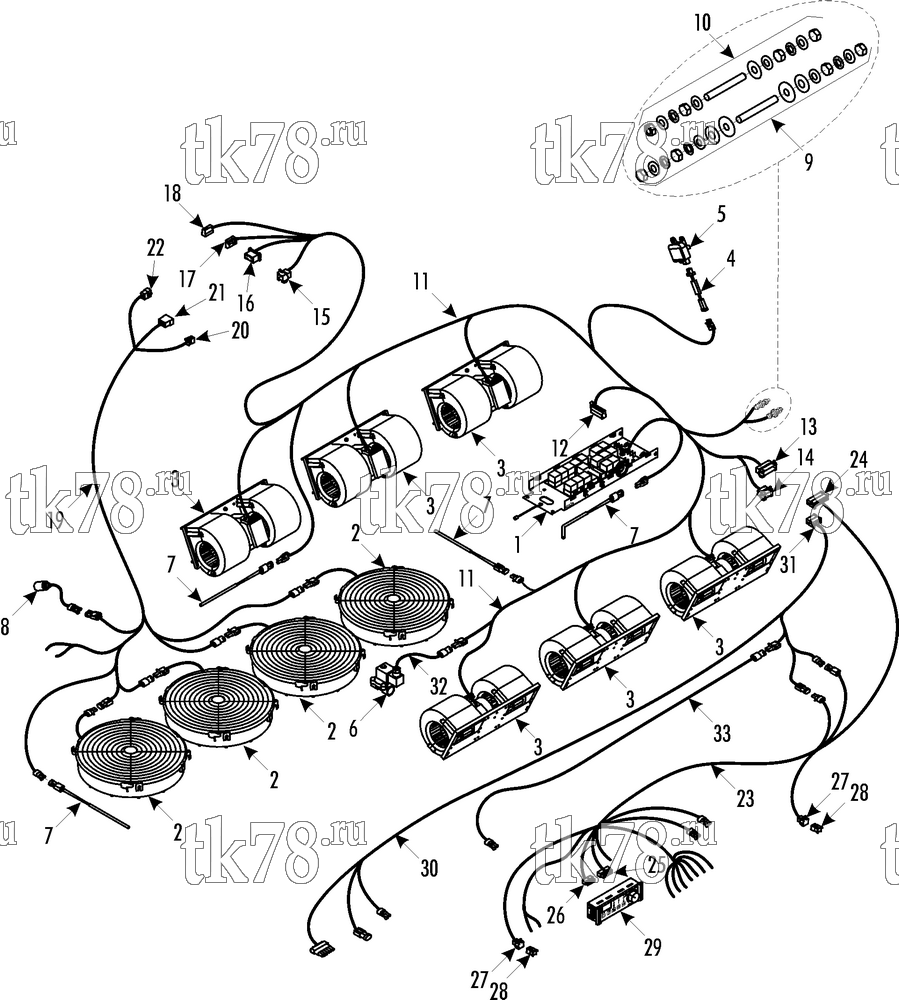

Установкa Thermo King схема ELECTRICAL COMPONENTS - (ClimaAIRE II - 1000/1004, Screw Compressor) – 163B8
Обновление от: 10/23/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL PANEL (see 184E0) | 1 | |
| 2 | NSS | FAN (see 224E4) | 4 | |
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7696 | SCREW - blower | 30 | ||
| 55-7031 | LOCKWASHER | 30 | ||
| 55-7697 | FLATWASHER | 30 | ||
| 4 | 41-3255 | SERVOMOTOR (unit w/ electrical fresh air) | 1 | |
| 5 | 41-7190 | CONTROLLER - servomotor (unit w/ electrical fresh air) | 1 | |
| 6 | 41-4151 | VALVE - solenoid (24 V, unit 1004 w/ heat valve, see 165G2) | 1 | |
| 7 | 41-4157 | SENSOR - temperature | 4 | |
| 8 | 41-5220 | SWITCH - hpco | 1 | |
| 9 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 10 | 55-9367 | STUD - negative (M8) | 1 | |
| 55-8568 | LOCKWASHER | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 41-6039 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 12 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 13 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 14 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 15 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 16 | 41-3862 | CONNECTOR (6-pin) | 1 | |
| 17 | 41-3493 | CONNECTOR (3-pin) | 1 | |
| 18 | 41-2891 | CONNECTOR (2 terminal, male) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 2 | ||
| 19 | 41-5211 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 20 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 21 | 41-3967 | CONNECTOR (6-pin) | 1 | |
| 22 | 41-3966 | CONNECTOR (3-pin) | 1 | |
| 23 | 41-7227 | HARNESS - control panel to ClimaAIRE II (18 m, for connectors see 115D14) | 1 | |
| 41-7226 | HARNESS - control panel to ClimaAIRE II (15 m, for connectors see 115D14) | 1 | ||
| 41-7225 | HARNESS - control panel to ClimaAIRE II (12 m, for connectors see 115D14) | 1 | ||
| 41-7224 | HARNESS - control panel to ClimaAIRE II (9 m, for connectors see 115D14) | 1 | ||
| 24 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 25 | 41-650 | CONNECTOR - in-line (18 terminal) | 1 | |
| 26 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 27 | 41-4949 | CONNECTOR (4-pin, male) | 2 | |
| 28 | 41-2769 | CONNECTOR (4-pin, female) | 2 | |
| 41-3968 | BOARD - pc | 1 | ||
| 41-7228 | RESISTOR (1.8 kOhms) | 1 | ||
| 29 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 30 | 41-7234 | HARNESS - compressor (14 m, for connectors see 115D14) | 1 | |
| 41-7233 | HARNESS - compressor (10 m, for connectors see 115D14) | 1 | ||
| 41-7232 | HARNESS - compressor (8.3 m, for connectors see 115D14) | 1 | ||
| 31 | 41-3855 | CONNECTOR - (10-pin, female) | 1 | |
| 41-5657 | RELAY | 2 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 32 | 41-4024 | HARNESS - valve (unit w/ heat valve, for connectors see 115D14) | 1 | |
| 33 | 41-4143 | HARNESS - boost pump (1004, 14 m, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (1004, 9 m, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (1004, 7.6 m, for connectors see 115D14) | 1 |
