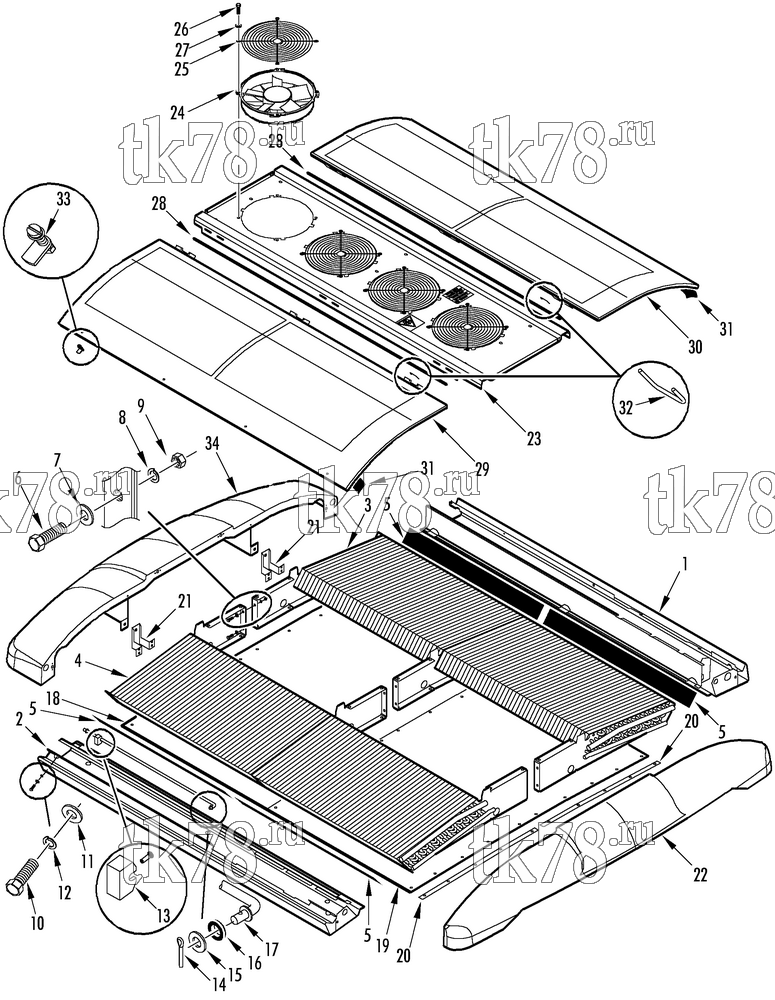

Установкa Thermo King схема CONDENSER STRUCTURAL & FANS (Before 3/02) – 163B1
Обновление от: 8/5/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5622 | FRAME - condenser (left, 5.0 m) | 1 | |
| 98-5712 | FRAME - condenser (left, 7.5 m) | 1 | ||
| 98-5732 | FRAME - condenser (left, 11.5 m) | 1 | ||
| 2 | 98-5623 | FRAME - condenser (right, 5.0 m) | 1 | |
| 98-5713 | FRAME - condenser (right, 7.5 m) | 1 | ||
| 98-5733 | FRAME - condenser (right, 11.5 m) | 1 | ||
| 3 | 67-1810 | COIL - condenser (right) | 1 | |
| 4 | 67-1811 | COIL - condenser (left) | 1 | |
| 5 | 91-9883 | STRIP (neoprene, 2.585 ft) | 4 | |
| 6 | 55-7341 | SCREW - coil | 6 | |
| 7 | 55-7085 | FLATWASHER | 12 | |
| 8 | 55-7342 | LOCKWASHER | 6 | |
| 9 | 55-7825 | NUT | 6 | |
| 10 | 55-6994 | SCREW - frame to coil | 12 | |
| 11 | 55-7170 | LOCKWASHER | 12 | |
| 12 | 55-7075 | FLATWASHER | 12 | |
| 13 | 91-7386 | CLAMP - rod | 2 | |
| 55-5047 | RIVET - clamp | 2 | ||
| 14 | 55-3458 | PIN - cotter | 2 | |
| 15 | 55-6995 | FLATWASHER | 2 | |
| 16 | 33-314 | GROMMET - rod | 2 | |
| 17 | 92-1163 | ROD - cover | 2 | |
| 18 | 98-5629 | PLATE - bottom | 1 | |
| 19 | 98-5628 | PLATE - bottom | 1 | |
| 20 | 91-9880 | STRIP - bottom plate | 6 | |
| 55-5130 | RIVET - strip | 30 | ||
| 21 | 91-9881 | BRACKET - holder | 2 | |
| 22 | 98-5631 | SPOILER - assembly (short, 5.0 m) | 1 | |
| 98-5715 | SPOILER - assembly (short, 7.5 m) | 1 | ||
| 98-5735 | SPOILER - assembly (short, 11.5 m) | 1 | ||
| 23 | 98-5625 | PLATE - top | 1 | |
| 55-6994 | SCREW - plate | 9 | ||
| 55-7170 | LOCKWASHER | 9 | ||
| 55-7075 | FLATWASHER | 9 | ||
| 55-7373 | NUT - captive | 9 | ||
| 24 | 78-1294 | FAN & MOTOR - condenser (for connectors see 115D14) | 1 | |
