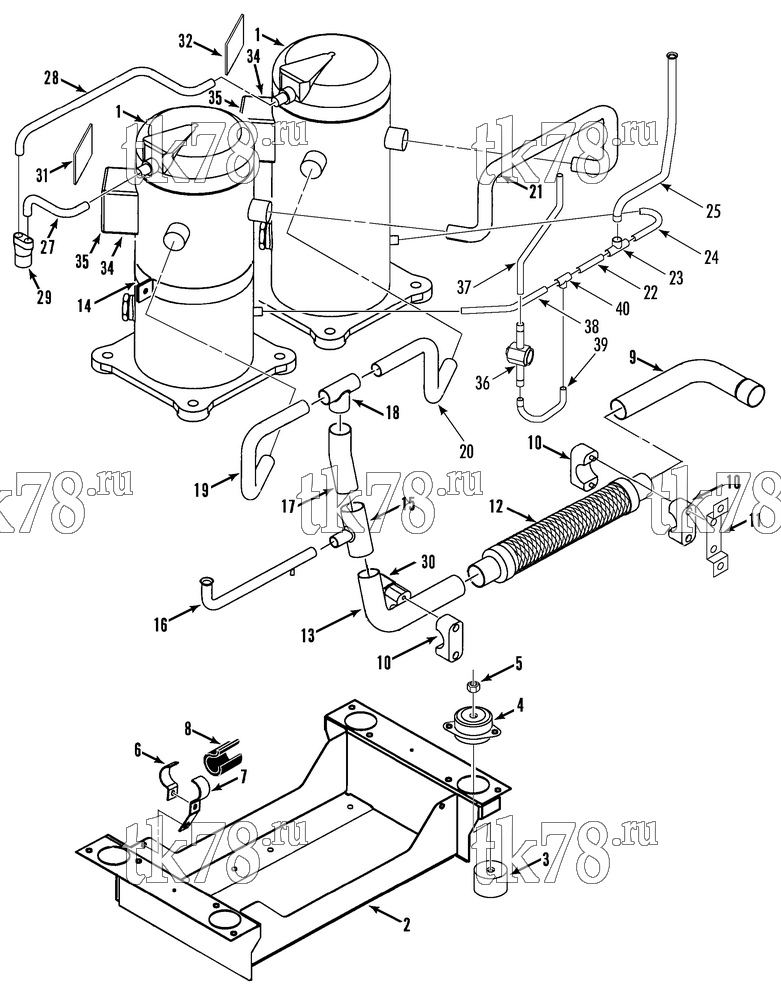

Установкa Thermo King схема COMPRESSOR SECTION – 162E0
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-740 | COMPRESSOR - scroll (208/3/60) | 2 | |
| 55-7825 | NUT - compressor | 8 | ||
| 55-4931 | WASHER - special | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 309-3207 | PAD - compressor | 8 | ||
| 2 | 98-5871 | BASE - compressor | 1 | |
| 3 | 309-3208 | PAD - compressor frame | 4 | |
| 4 | 309-1969 | ISOLATOR - compressor | 4 | |
| 55-7341 | SCREW - isolator | 8 | ||
| 55-6988 | FLATWASHER | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 5 | 55-7348 | NUT - compressor base to frame | 4 | |
| 55-7347 | LOCKWASHER | 4 | ||
| 55-7357 | FLATWASHER | 4 | ||
| 6 | 309-3212 | CLAMP - tube | 1 | |
| 7 | 309-3213 | BRACKET - tube | 1 | |
| 55-7341 | SCREW - tube bracket | 3 | ||
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 3 | ||
| 55-7825 | NUT | 3 | ||
| 8 | 33-2420 | STRIP - gasket (neoprene) | A/R | |
| 9 | 61-531 | TUBE - evaporator to eliminator | 1 | |
| 10 | 55-6020 | CLAMP - suction tube | 4 | |
| 305-1656 | SCREW - clamp | 4 | ||
| 11 | 92-786 | HOLDER - suction tube | 1 | |
| 55-8835 | NUT - captive | 2 | ||
| 55-6994 | SCREW - bracket | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-8835 | NUT - captive | 2 | ||
| 12 | 306-1395 | VIBRASORBER - suction | 1 | |
| 13 | 61-532 | TUBE - eliminator to tee | 1 | |
| 14 | 92-785 | BAND | 1 | |
| 55-8836 | WASHER - square | 2 | ||
| 55-7341 | SCREW - band | 2 | ||
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 15 | 55-7448 | TEE (1-3/8 x 1-3/8 x 5/8) | 1 | |
| 16 | 306-1874 | TUBE - process | 1 | |
| 17 | 61-533 | TUBE - tee to tee (1-1/8) | 1 | |
| 18 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 19 | 61-524 | TUBE - tee to compressor | 1 | |
| 20 | 61-525 | TUBE - tee to compressor | 1 | |
| 21 | 61-523 | TUBE - gas equalizer | 1 | |
| 22 | 306-1801 | TUBE - oil equalizer | 1 | |
| 23 | 55-6222 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 24 | 306-1876 | TUBE - oil equalizer | 1 | |
| 25 | 61-520 | TUBE - oil fill | 1 | |
| 26 | 55-2240 | CLAMP - tube | 1 | |
| 27 | 61-522 | TUBE - discharge (short) | 1 | |
| 28 | 61-521 | TUBE - discharge (long) | 1 | |
| 29 | 306-1802 | TUBE - discharge end | 1 | |
| 31 | 309-3461 | NAMEPLATE - Electrical | 1 | |
| 32 | 309-3462 | NAMEPLATE - Electrical | 1 | |
| 33 | 91-7846 | NAMEPLATE - R407C | 1 | |
| 34 | 91-9954 | BOX - junction (compressor) | 1 | |
| 305-1413 | CONNECTOR - strain relief | 1 | ||
| 305-1408 | NUT - sealing | 1 | ||
| 55-3027 | SCREW - box | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-4526 | NUT - captive | 2 | ||
| 35 | 91-9955 | PLATE - cover | 1 | |
| 33-3173 | GASKET - plate | 1 | ||
| 55-9349 | SCREW - plate | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-8595 | INSERT | 4 | ||
| 36 | 66-1296 | INDICATOR - liquid | 1 | |
| 37 | 61-1004 | TUBE - suction to indicator | 1 | |
| 38 | 61-530 | TUBE - tee to compressor | 1 | |
| 39 | 61-527 | TUBE - tee to indicator | 1 | |
| 40 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 |
