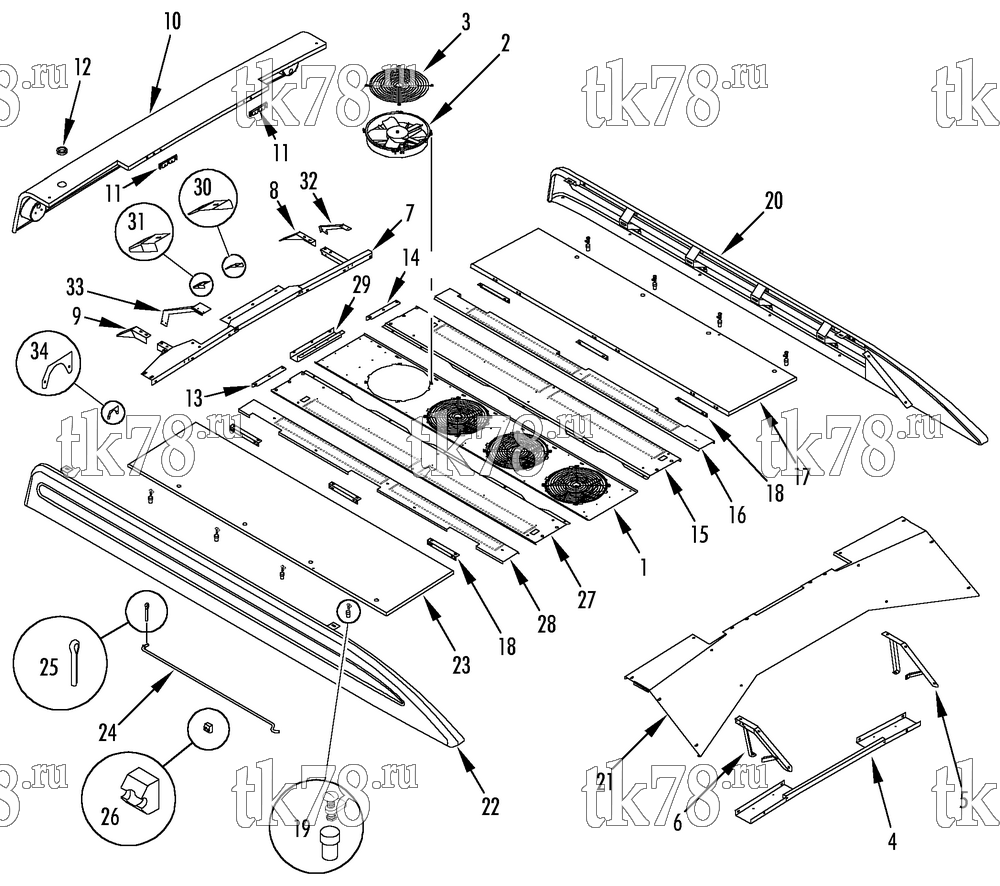

Установкa Thermo King схема UNIT COVERS/BRACKETS/CONDENSER FANS – 161D5
Обновление от: 6/11/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5837 | PANEL - center | 1 | |
| 2 | 78-1344 | FAN & MOTOR (for connectors see 115D14) | 4 | |
| 3 | 98-5425 | GUARD - fan | 4 | |
| 55-7372 | SCREW - fan/guard | 16 | ||
| 55-9190 | LOCKWASHER | 16 | ||
| 55-7373 | NUT - captive | 16 | ||
| 4 | 98-5844 | BRACKET - support (stiffener) | 1 | |
| 5 | 92-706 | BRACKET - front spoiler | 1 | |
| 6 | 92-707 | BRACKET - front spoiler | 1 | |
| 7 | 98-5845 | BRACKET - support (stiffener) | 1 | |
| 8 | 92-704 | BRACKET - rear cover | 1 | |
| 9 | 92-705 | BRACKET - rear cover | 1 | |
| 55-6997 | NUT - captive (M6) | 4 | ||
| 55-6994 | SCREW - bracket | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 10 | 98-5851 | COVER - rear | 1 | |
| 11 | 91-7098 | HINGE - cover | 2 | |
| 55-7036 | SCREW - hinge | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 55-7171 | LOCKWASHER | 6 | ||
| 92-714 | NUTSTRIP | 2 | ||
| 12 | 33-624 | GROMMET - sight glass | 1 | |
| 13 | 92-715 | BRACKET - hinge | 1 | |
| 14 | 92-716 | BRACKET - hinge | 1 | |
| 55-6994 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 15 | 98-5854 | COVER - condenser (roadside) | 1 | |
| 55-5130 | RIVET - cover | 12 | ||
| 16 | 98-5853 | COVER - fresh air (roadside) | 1 | |
| 55-7169 | SCREW - cover | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 17 | 98-5850 | COVER - evaporator (roadside) | 1 | |
| 18 | 91-9183 | HINGE - cover | 6 | |
| 55-7340 | SCREW - hinge | 24 | ||
| 55-7033 | FLATWASHER | 24 | ||
| 55-7171 | LOCKWASHER | 24 | ||
| 55-8375 | NUT - captive | 24 | ||
| 19 | 91-9874 | FASTENER - cover (see 155A8) | 8 | |
| 20 | 98-5848 | SPOILER - roadside | 1 | |
| 33-2376 | GROMMET (1/4 id) | 7 | ||
| 55-5955 | SCREW (M6 x 1.0) | 4 | ||
| 55-7012 | NUT - captive (M6) | 6 | ||
| 55-7373 | NUT - captive (hexagon, M6) | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 21 | 98-5846 | SPOILER - front | 1 | |
| 55-8837 | SCREW - spoiler | 22 | ||
| 55-5970 | WASHER - sealing | 22 | ||
| 22 | 98-5847 | SPOILER - curbside | 1 | |
| 33-2376 | GROMMET (1/4 id) | 7 | ||
| 55-5955 | SCREW (M6 x 1.0) | 4 | ||
| 55-7012 | NUT - captive (M6) | 6 | ||
| 55-7373 | NUT - captive (hexagon, M6) | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 23 | 98-5849 | COVER - evaporator (curbside) | 1 | |
| 24 | 92-680 | ROD - cover | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 25 | 55-3458 | PIN - cotter | 2 | |
| 26 | 91-7386 | CLAMP - rod | 2 | |
| 27 | 98-5855 | COVER - condenser (curbside) | 1 | |
| 55-5130 | RIVET - cover | 12 | ||
| 28 | 98-5852 | COVER - fresh air (curbside) | 1 | |
| 55-7169 | SCREW - cover | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 29 | 92-708 | BRACKET - exhaust blower | 1 | |
| 30 | 92-709 | BRACKET - cover | 1 | |
| 31 | 92-710 | BRACKET - cover | 1 | |
| 32 | 92-711 | BRACKET - cover | 1 | |
| 33 | 92-712 | BRACKET - cover | 1 | |
| 34 | 92-134 | BRACKET - tube support | 2 |
