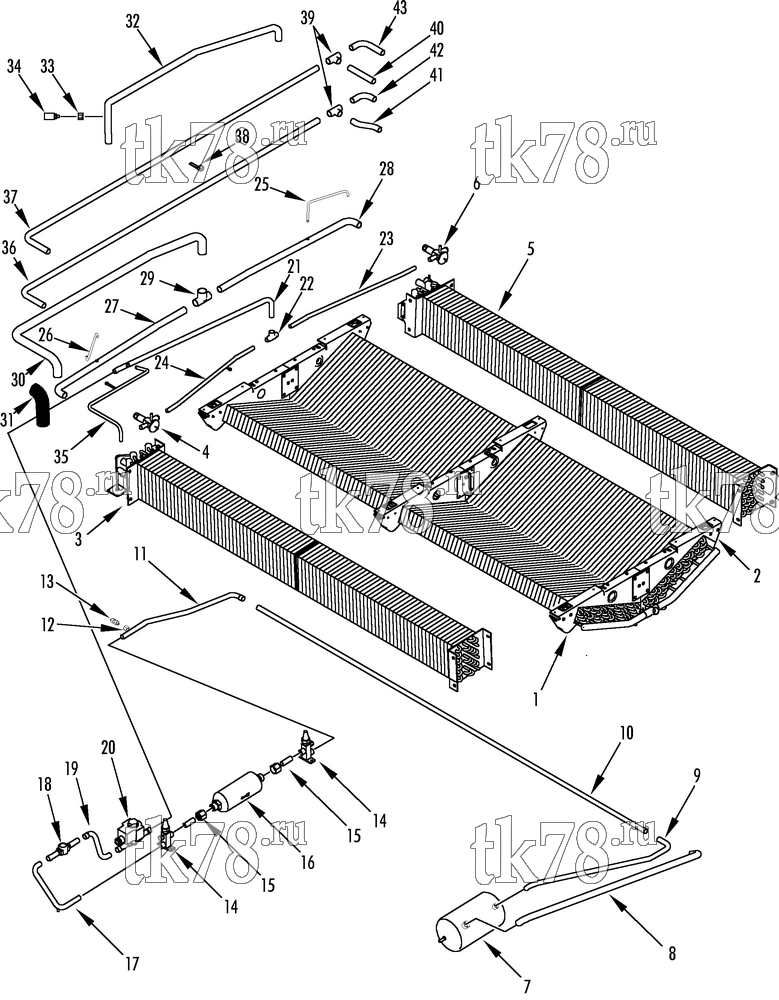

Установкa Thermo King схема REFRIGERATION COMPONENTS – 161D4
Обновление от: 10/26/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1694 | COIL - condenser (curbside, see 161D3) | 1 | |
| 2 | 67-1695 | COIL - condenser (roadside, see 161D3) | 1 | |
| 3 | 67-1696 | COIL - evaporator/heater (curbside) | 1 | |
| 4 | 61-444 | VALVE - expansion | 1 | |
| 5 | 67-1697 | COIL - evaporator/heater (roadside) | 1 | |
| 6 | 61-444 | VALVE - expansion | 1 | |
| 7 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - tank | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 8 | 61-454 | TUBE - condenser to receiver tank | 1 | |
| 9 | 61-455 | TUBE - receiver to crossover tube | 1 | |
| 10 | 61-466 | TUBE - crossover | 1 | |
| 11 | 61-456 | TUBE - crossover to valve | 1 | |
| 12 | 55-9183 | FITTING - saddle (relief valve) | 1 | |
| 13 | 66-9356 | VALVE - relief | 1 | |
| 14 | 66-2104 | VALVE - shutoff | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 15 | 66-9979 | TUBE - shutoff to dehydrator | 2 | |
| 66-9913 | TUBE | 2 | ||
| 55-6396 | NUT - shoulder | 2 | ||
| 55-6356 | SHOULDER | 2 | ||
| 16 | 66-9352 | DEHYDRATOR - filter/drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 33-1223 | O-RING - dehydrator | 2 | ||
| 17 | 61-457 | TUBE - valve to indicator | 1 | |
| 18 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 19 | 61-465 | TUBE - sight glass to solenoid valve | 1 | |
| 20 | 66-9353 | VALVE - solenoid | 1 | |
| 41-3574 | COIL - valve | 1 | ||
| 55-7088 | SCREW - valve | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 21 | 61-458 | TUBE - solenoid to tee | 1 | |
| 22 | 55-1252 | TEE - liquid line (1/2 x 1/2 x 5/8) | 1 | |
| 23 | 61-460 | TUBE - tee to expansion valve | 1 | |
| 24 | 61-459 | TUBE - tee to expansion valve | 1 | |
| 25 | 61-450 | TUBE - equalizer | 1 | |
| 26 | 61-449 | TUBE - equalizer | 1 | |
| 27 | 61-461 | TUBE - coil to tee (suction) | 1 | |
| 28 | 61-462 | TUBE - coil to tee (suction) | 1 | |
| 29 | 55-6508 | TEE - suction (7/8 x 7/8 x 1-1/8) | 1 | |
| 30 | 61-463 | TUBE - tee to bulkhead (suction) | 1 | |
| 31 | 92-145 | INSULATION - tube | 1 | |
| 32 | 61-453 | TUBE - bulkhead to condenser (hot gas) | 1 | |
| 33 | 66-4553 | FITTING - saddle | 1 | |
| 34 | 41-3831 | SWITCH - hpco | 1 | |
| 35 | 61-464 | TUBE - bypass | 1 | |
| 36 | 61-452 | TUBE - water inlet | 1 | |
| 37 | 61-451 | TUBE - water outlet | 1 | |
| 38 | 55-2330 | BANDWRAP | 3 | |
| 39 | 55-5401 | TEE - water tube (3/4 x 3/4 x 3/4) | 2 | |
| 40 | 61-446 | TUBE - tee to coil (water) | 1 | |
| 41 | 61-448 | TUBE - tee to coil (water) | 1 | |
| 42 | 61-447 | TUBE - tee to bulkhead (water) | 1 | |
| 43 | 61-445 | TUBE - tee to bulkhead (water) | 1 |
