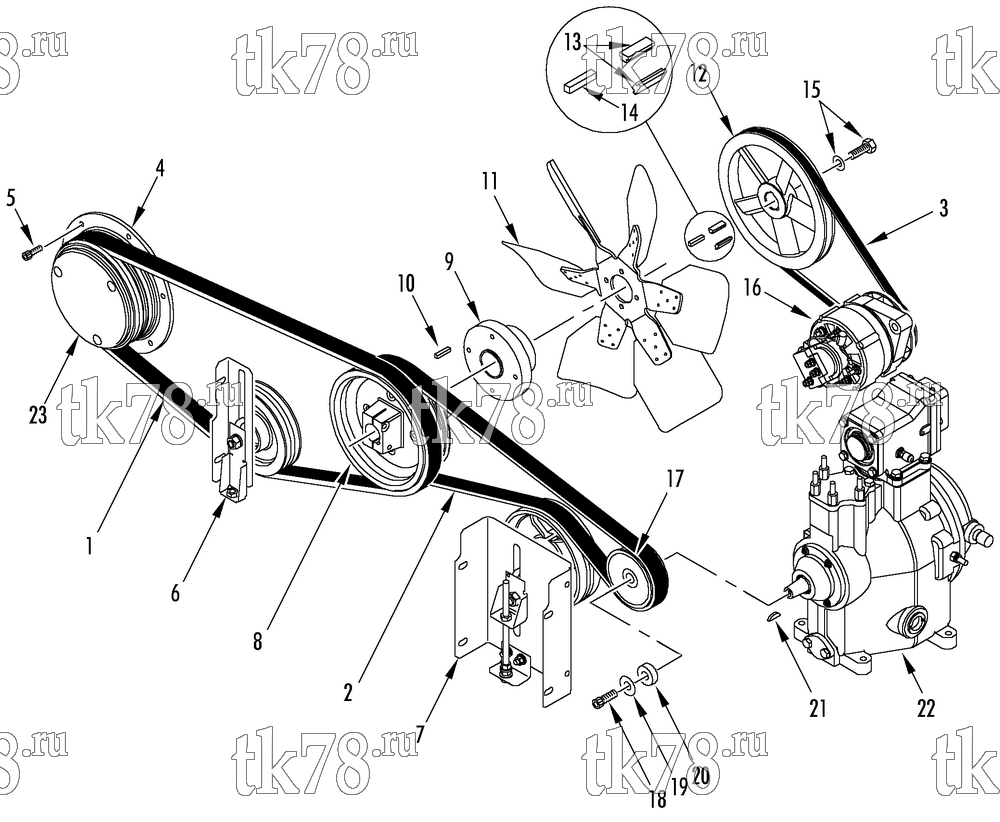

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP – 161A6
Обновление от: 12/8/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1352 | BELT - engine to motor | 1 | |
| 10-78-1352 | Ремень двигатель - электромотор, UT-1200/UTS | 13 210 ₽ |
|
|
|
PP-78-1352 | Ремень двигатель - электромотор, UT-1200/UTS | 6 620 ₽ |
|
| 2 | 78-1345 | BELT - motor to compressor | 1 | |
| US-78-1345 | Ремень электромотор - компрессор, UTS | 14 750 ₽ |
|
|
| 3 | 78-1191 | BELT - alternator | 1 | |
| US-78-1191 | Ремень генератора, UTS | 7 180 ₽ |
|
|
| 4 | 107-348 | CLUTCH (see 145F4) | 1 | |
| 5 | 55-5022 | SCREW - clutch | 7 | |
| 6 | NSS | PULLEY - idler (see 161B1) | 1 | |
| 7 | NSS | PULLEY - idler (see 161B2) | 1 | |
| 8 | 77-2596 | PULLEY - motor | 1 | |
| 55-2962 | SCREW - pulley to shaft | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 9 | 77-2595 | FLANGE - fan hub | 1 | |
| 55-3565 | SCREW - flange | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 10 | 55-7482 | KEY | 1 | |
| 11 | 70-202 | KIT - condenser fan (before 1/04) | 1 | |
| 77-2780 | FAN - condenser (1/04 & after) | 1 | ||
| 55-2969 | SCREW - fan | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 12 | 77-2594 | PULLEY - alternator | 1 | |
| 13 | 51-322 | KEY - stepper (before S/N 09252S0449) | 2 | |
| 14 | 55-9462 | KEY (S/N 09252S0449 & after) | 1 | |
| 15 | 55-3490 | SCREW - pulley | 1 | |
| 55-8423 | WASHER - belleville | 1 | ||
| 55-3298 | WASHER - special | 1 | ||
| 16 | 45-1706 | ALTERNATOR (see 132A12 & 161B4) | 1 | |
| 10-45-1706 | Генератор 90A, URD | 43 600 ₽ |
|
|
| 17 | 77-2633 | PULLEY - compressor | 1 | |
| 18 | 55-1769 | SCREW - pulley | 1 | |
| 19 | 55-8423 | WASHER - belleville | 1 | |
| 20 | 55-4923 | WASHER - special | 1 | |
| 21 | 55-5371 | KEY | 1 | |
| 22 | NSS | COMPRESSOR (see 139E8) | 1 | |
| 23 | 91-7423 | SHIELD - clutch | 1 | |
| 55-1587 | SCREW - shield | 3 | ||
| 91-4299 | SPACER - shield | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 203-400 | SEALER - thread | A/R |
