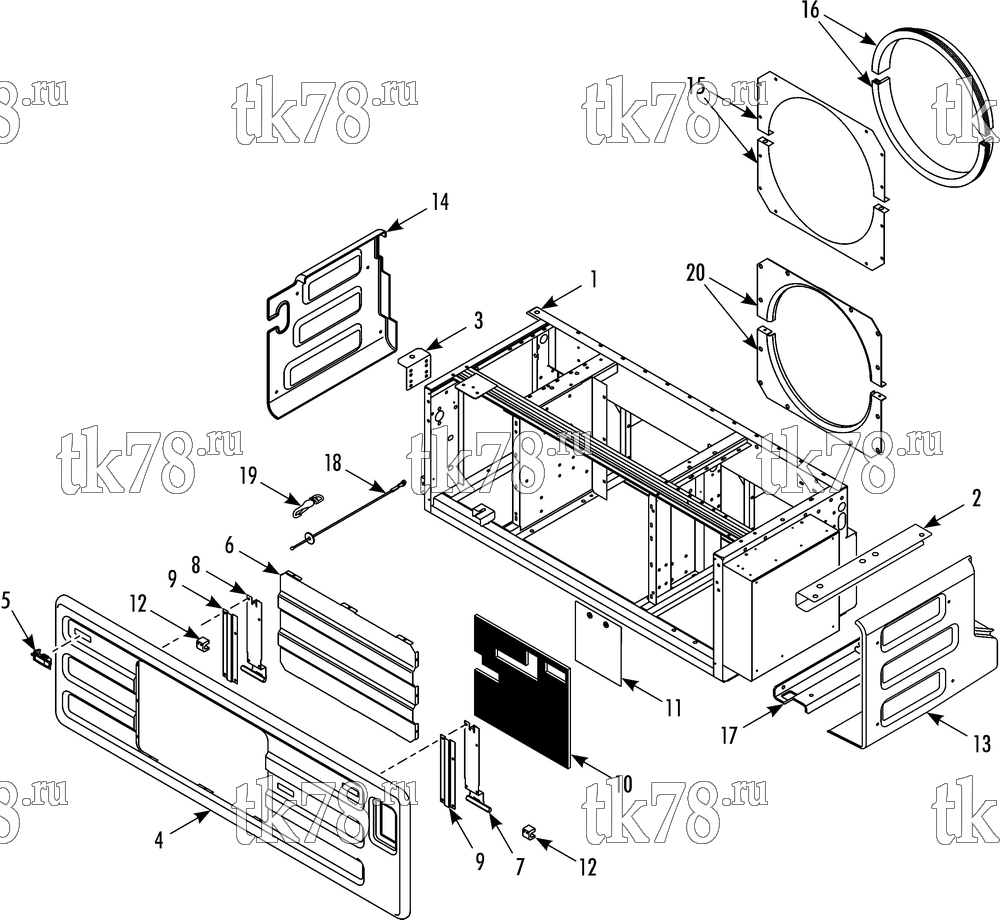

Установкa Thermo King схема FRAME AND SKIN GROUP – 161A1
Обновление от: 12/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6662 | FRAME - condenser | 1 | |
| 55-8798 | INSERT - threaded (#10-32) | 2 | ||
| 55-8711 | INSERT - threaded (1/4-20) | 13 | ||
| 55-9159 | INSERT - threaded (5/16-18) | 21 | ||
| 55-8978 | INSERT - threaded (3/8-16) | 2 | ||
| 2 | 92-3191 | BRACKET - unit support | 1 | |
| 55-3048 | SCREW - bracket | 8 | ||
| 55-7122 | WASHER - belleville | 8 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 3 | 91-8766 | BRACKET - unit | 1 | |
| 91-7433 | NUTSTRIP | 2 | ||
| 55-2683 | SCREW - bracket | 4 | ||
| 55-7122 | WASHER - belleville | 4 | ||
| 55-8659 | FLATWASHER | 4 | ||
| 4 | 98-5809 | DOOR - side | 1 | |
| 5 | 90-349 | KIT - door latch | 3 | |
| 92-1587 | LATCH - compression/turn | 1 | ||
| 92-3004 | ADAPTER - plate | 1 | ||
| 55-3843 | SCREW - latch | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 92-2991 | LATCH - compression/turn (tool secure, optional) | 1 | ||
|
10-92-2991 | Замок двери, New MD & TS | 12 190 ₽ |
|
| 6 | 98-5808 | GRILLE - side door | 1 | |
| 55-3015 | SCREW - grille | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-2965 | NUT | 12 | ||
| 7 | 92-516 | HINGE - door (right) | 1 | |
| 8 | 92-517 | HINGE - door (left) | 1 | |
| 9 | 92-518 | RETAINER - hinge | 2 | |
| 55-3018 | SCREW - hinge | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 10 | 33-3273 | INSULATION - door | 1 | |
| 11 | 91-5703 | POUCH - records | 1 | |
| 12 | 92-3003 | HINGE - retainer | 2 | |
| 55-2977 | SCREW - hinge | 4 | ||
| 13 | 98-5811 | PANEL - rear | 1 | |
| 14 | 98-5810 | PANEL - front | 1 | |
| 55-9330 | SCREW - panel | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 55-8782 | WASHER - special | 8 | ||
| 55-9440 | NUT - U | 8 | ||
| 15 | 77-2592 | ORIFICE - condenser (flexible pvc) | 2 | |
| 16 | 77-2791 | PLATE - orifice | 2 | |
| 55-1587 | SCREW - orifice | 14 | ||
| 55-3045 | WASHER - dome | 14 | ||
| 17 | 92-3192 | BRACKET - lower | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-7791 | FLATWASHER | 2 | ||
| 55-8423 | WASHER - belleville | 2 | ||
| 18 | 92-4682 | CABLE - door | 2 | |
| 55-2991 | SCREW - cable | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 19 | 55-9430 | SNAP - swivel | 2 | |
| 91-6826 | RING - swivel snap | 2 | ||
| 20 | 77-2791 | ORIFICE - condenser | 2 |
