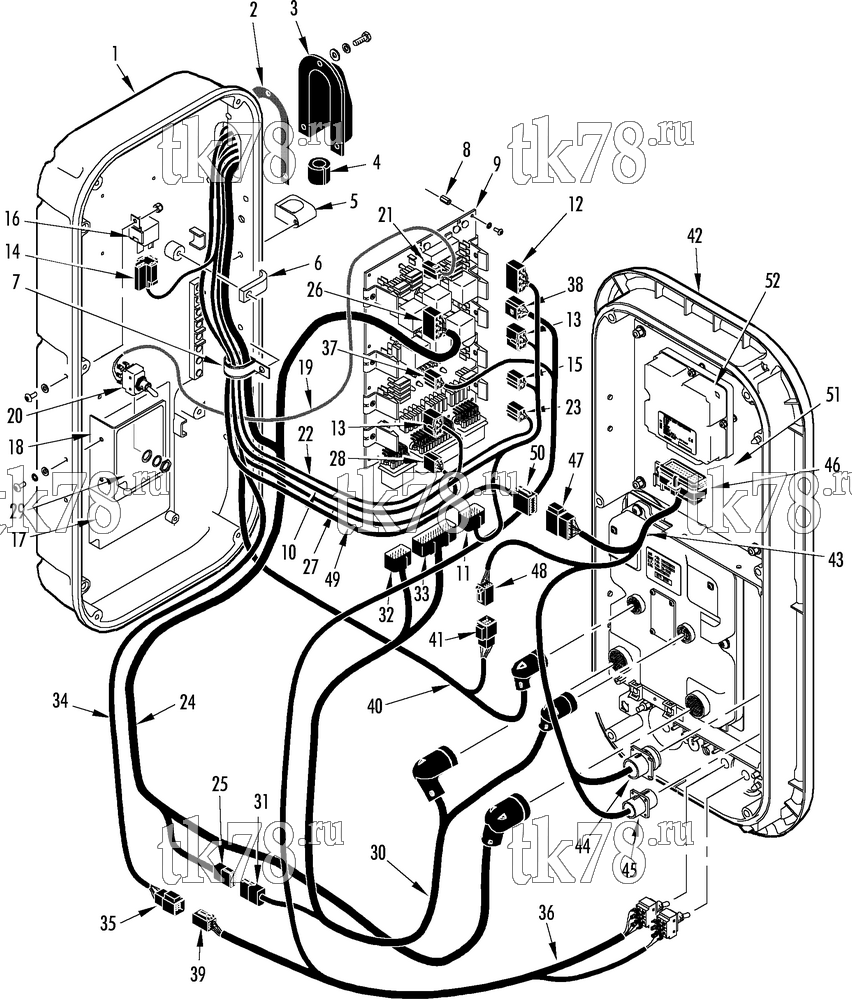

Установкa Thermo King схема CONTROL BOX GROUP (SUPER-II 50 WHISPER) – 160E0
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5797 | BOX - control | 1 | |
| 2 | 33-2786 | GASKET - shield | 1 | |
| 3 | 91-4503 | COVER - harness | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 4 | 92-465 | HOSE - harness | 1 | |
| 5 | 91-3886 | CLAMP - harness | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 6 | 91-1375 | CLAMP - harness | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 7 | 55-5274 | CLAMP - harness | 1 | |
| 55-1801 | NUT - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 8 | 99-9889 | SPACER - standoff (pc board) | 10 | |
| 9 | 41-4915 | BOARD - relay (see 153E9) | 1 | |
| 55-4576 | SCREW - spacer & relay board | 20 | ||
| 55-2998 | LOCKWASHER | 20 | ||
| 10 | 41-3708 | HARNESS - main | 1 | |
| 11 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - connector | 1 | ||
| 12 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 13 | 44-5030 | CONNECTOR (6-pin) | 2 | |
| 14 | 41-1325 | SOCKET - mini plug | 1 | |
| 15 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 41-478 | RELAY (1pst) | 1 | |
| 17 | 92-1701 | NAMEPLATE - relay | 1 | |
| 18 | 91-7087 | BRACKET - switch | 1 | |
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 19 | 41-3676 | HARNESS - on/off | 1 | |
| 41-3709 | HARNESS - sleep (optional) | 1 | ||
| 20 | 44-7929 | SWITCH - black handle | 1 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 21 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 22 | 41-3710 | HARNESS - alternator | 1 | |
| 23 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 24 | 41-3711 | HARNESS - sensor (before 1/02) | 1 | |
| 41-5164 | HARNESS - sensor (1/02 & after, hardwired sensors) | 1 | ||
| 25 | 44-9600 | PLUG (12-pin) | 1 | |
| 44-9601 | WEDGE | 1 | ||
| 26 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 27 | 41-3712 | HARNESS - ETV | 1 | |
| 28 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 29 | 92-102 | NAMEPLATE - microprocessor on | 1 | |
| 30 | 41-2849 | HARNESS - interconnect (before 2/04) | 1 | |
| 41-5847 | HARNESS - interconnect (2/04 & after) | 1 | ||
| 31 | 44-9904 | CONNECTOR (12-pin) | 1 | |
| 32 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - receptacle | 1 | ||
| 33 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - receptacle | 1 | ||
| 34 | 41-3713 | HARNESS - high voltage | 1 | |
| 35 | 44-8914 | CONNECTOR (6-pin) | 1 | |
| 36 | 41-3714 | HARNESS - switch | 1 | |
| 37 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 38 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 39 | 44-8920 | CONNECTOR (6-pin) | 1 | |
| 40 | 41-3715 | HARNESS - communication | 1 | |
| 41 | 44-8914 | RECEPTACLE (6-pin) | 1 | |
| 42 | NSS | COVER - control box (see 160E8) | 1 | |
| 43 | 41-3679 | HARNESS - datalog | 1 | |
| 41-5411 | HARNESS - DAS (optional) | 1 | ||
| 44 | 44-8329 | RECEPTACLE (6-pin) | 1 | |
| 45 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 46 | 41-3359 | CONNECTOR - plug (35-pin, female) | 1 | |
| 47 | 44-9904 | RECEPTACLE (12-pin) | 1 | |
| 48 | 44-8920 | CONNECTOR (6-pin) | 1 | |
| 55-3427 | SCREW - receptacle | 8 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 8 | ||
| 55-2361 | NUT | 8 | ||
| 49 | 41-5411 | HARNESS - DAS | 1 | |
| 50 | 44-9600 | CONNECTOR (12-pin) | 1 | |
| 51 | 92-466 | PLATE (das) | 1 | |
| 55-4953 | NUT - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 52 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 55-5754 | NUT - datalogger | 3 | ||
| 55-3013 | FLATWASHER | 3 |
