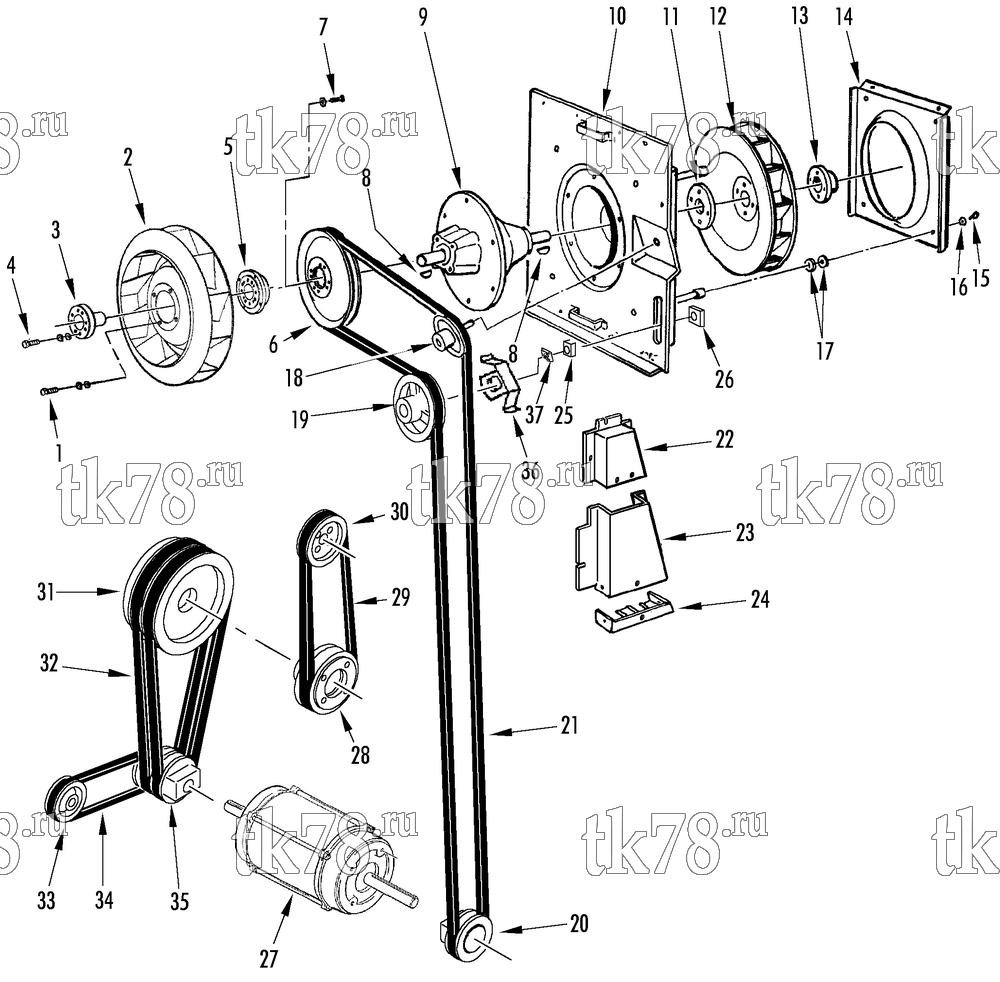

Установкa Thermo King схема FANS, BELTS & PULLEYS GROUP (50s, WHISPER) – 158E8
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-533 | SCREW - wheel | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 2 | 78-1527 | WHEEL - blower (condenser) | 1 | |
| 3 | 77-2237 | BUSHING - taper | 1 | |
| 4 | 55-6011 | SCREW - bushing | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 5 | 77-2357 | MOUNT - blower | 1 | |
| 6 | 77-2356 | PULLEY - condenser blower | 1 | |
| 7 | 55-7801 | SCREW - pulley | 8 | |
| 55-402 | FLATWASHER | 8 | ||
| 8 | 55-457 | KEY - fan | 2 | |
| 9 | 78-707 | FANSHAFT - assembly (see 80F6) | 1 | |
| 55-129 | SCREW - fanshaft | 6 | ||
| 55-402 | FLATWASHER | 12 | ||
| 55-5078 | NUT | 6 | ||
| 10 | 98-3502 | PANEL - bulkhead | 1 | |
| 55-2683 | SCREW - panel | 11 | ||
| 55-2363 | LOCKWASHER | 11 | ||
| 55-2641 | FLATWASHER | 11 | ||
| 11 | 77-1771 | RING - blower | 1 | |
| 12 | 78-930 | WHEEL - blower (evaporator) | 1 | |
| 13 | 77-1592 | HUB - evaporator blower | 1 | |
| 55-3490 | SCREW - hub to blower | 4 | ||
| 55-8974 | SCREW - hub to shaft | 2 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 4 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 14 | 78-704 | ORIFICE - evaporator | 1 | |
| 15 | 55-2977 | SCREW - orifice to bulkhead | 4 | |
| 16 | 55-3045 | WASHER - dome | 4 | |
| 17 | 55-2904 | WASHER - special | A/R | |
| 18 | 77-2004 | PULLEY - idler (V-groove, see 80F11) | 1 | |
|
10-77-2004 | Ролик-успокоитель | 33 440 ₽ |
|
| 19 | 77-2003 | PULLEY - idler (flat groove, see 80F11) | 1 | |
|
10-77-2003 | Ролик-успокоитель | 33 210 ₽ |
|
| 20 | 78-1131 | PULLEY - fan drive (7.0 dia, before 1/02) | 1 | |
| 77-2480 | PULLEY - fan drive (5.65 dia, 1/02 & after) | 1 | ||
| 55-139 | SCREW - pulley | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 21 | 78-1180 | BELT - fan drive (before 1/02, Reliance motor) | 1 | |
| 78-1203 | BELT - fan drive (1/02 & after, Leroy Somer motor) | 1 | ||
| 22 | 91-2676 | GUARD - belt (upper) | 1 | |
| 23 | 91-8346 | GUARD - belt (lower) | 1 | |
| 55-3021 | SCREW - guard | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 24 | 91-8346 | CAP - guard (bottom) | 1 | |
| 55-2991 | SCREW - cap | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 3 | ||
| 25 | 91-1415 | CHANNEL - idler | 1 | |
| 26 | 91-1433 | PLATE - threaded | 1 | |
| 27 | 104-735 | MOTOR (before 1/02, Reliance motor) | 1 | |
| 104-735 | MOTOR (Leroy Somer, 1/02 & after) | 1 | ||
| 28 | 70-212 | PULLEY - crankshaft (see 142C14) | 1 | |
| 29 | 78-1340 | BELT - crankshaft & water pump | 1 | |
|
20-78-1968 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 5 210 ₽ |
|
| 10-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 3 460 ₽ |
|
|
|
PP-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 890 ₽ |
|
| 30 | 77-1426 | PULLEY - water pump | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 31 | 107-343 | CLUTCH (see 149B9) | 1 | |
|
10-107-343 | Сцепление, 8 втулок (large shaft) | 130 520 ₽ |
|
| 32 | 78-1069 | BELT - clutch (set of 2) | 1 | |
| 33 | 77-2359 | PULLEY - alternator | 1 | |
| 34 | 78-843 | BELT - alternator | 1 | |
| 35 | 78-1071 | PULLEY - clutch | 1 | |
| 55-139 | SCREW - pulley | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 36 | 91-4270 | GRID - belt | 1 | |
| 37 | 91-1416 | WASHER - idler | 1 |
