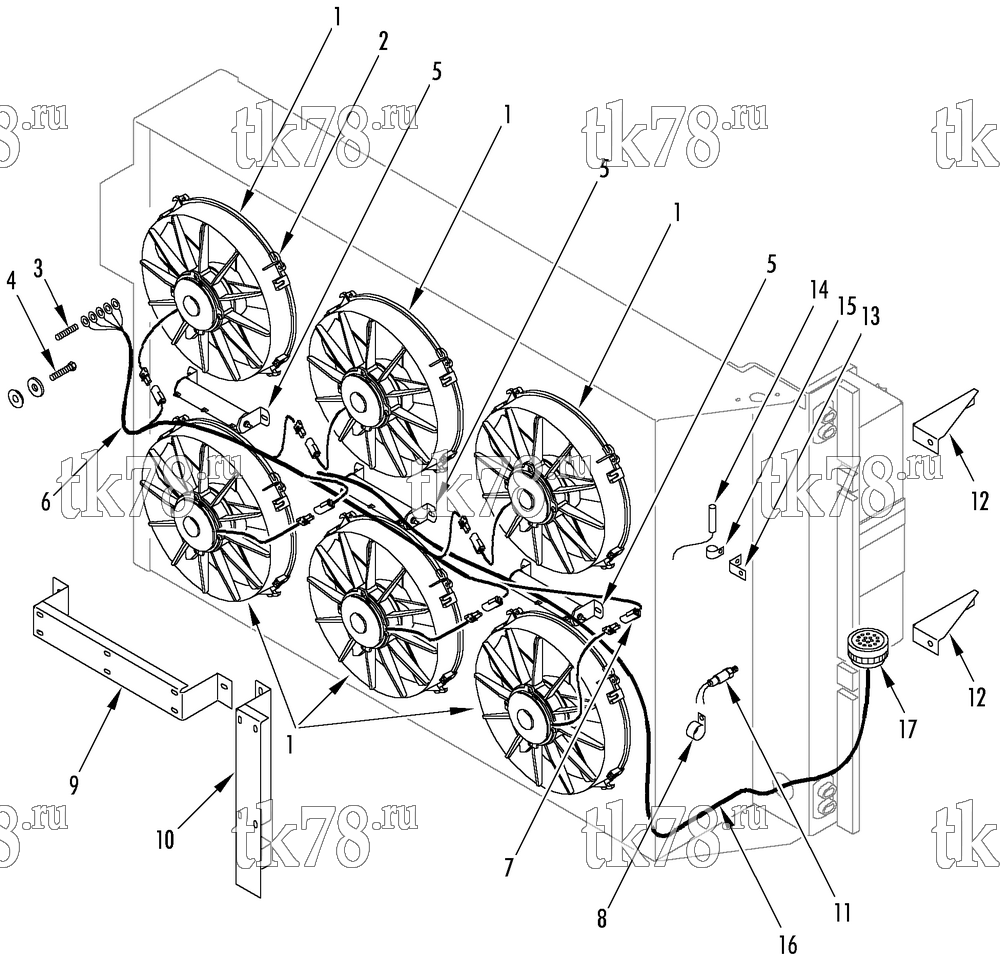

Установкa Thermo King схема CONDENSER ELECTRICAL COMPONENTS – 158E0
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1294 | FAN & MOTOR - condenser | 6 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 2 | 91-7096 | BRACKET - condenser fan | 24 | |
| 55-3490 | SCREW - bracket | 24 | ||
| 55-1800 | LOCKWASHER | 24 | ||
| 55-2086 | FLATWASHER | 24 | ||
| 3 | 55-3167 | STUD - terminal | 1 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-671 | NUT | 2 | ||
| 4 | 55-3812 | SCREW - terminal | 1 | |
| 55-5901 | WASHER - shoulder (thermoplastic) | 1 | ||
| 55-5902 | FLATWASHER - shield (thermoplastic) | 1 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-671 | NUT | 3 | ||
| 5 | 41-3628 | RESISTOR (2.0 ohm) | 3 | |
| 55-3027 | SCREW - resistor | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 6 | 41-3629 | HARNESS - condenser motor | 1 | |
| 7 | 44-5835 | CONNECTOR - 2 terminal | 6 | |
| 8 | 55-6147 | CLAMP - harness | 4 | |
| 55-1587 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 9 | 92-308 | BRACKET (horizontal) | 1 | |
| 10 | 92-309 | BRACKET (vertical) | 1 | |
| 55-2957 | SCREW - brackets | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 11 | 44-6349 | SWITCH - hpco | 1 | |
| 44-6427 | SWITCH | 1 | ||
| 12 | 92-310 | BRACKET - control box | 2 | |
| 55-2957 | SCREW - bracket | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 13 | 91-9740 | BRACKET - sensor | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 14 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 15 | 55-2239 | CLAMP - sensor | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 16 | 41-3630 | HARNESS - control box to condenser | 1 | |
| 17 | 44-6835 | PLUG (16-pin) | 1 |
