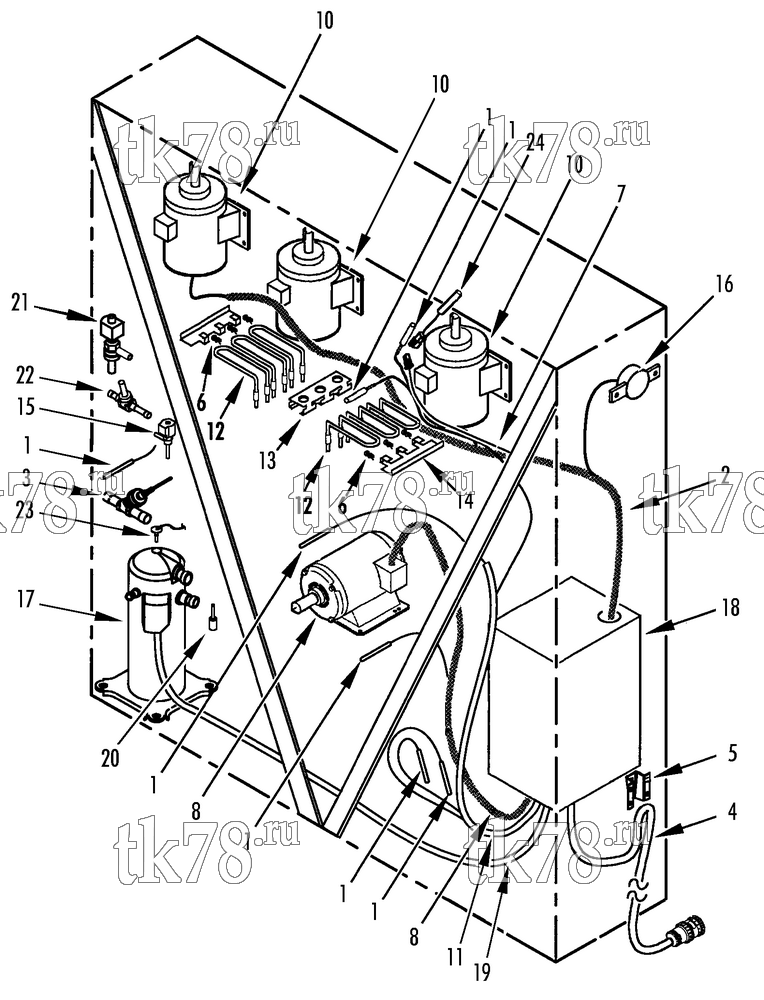

Установкa Thermo King схема ELECTRICAL COMPONENTS - UNITS w/o HEATER DOOR – 158B7
Обновление от: 6/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-791 | KIT - sensor (universal) | A/R | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 2 | 41-4002 | HARNESS - evaporator fans & heaters | 1 | |
| 3 | 66-9934 | VALVE - stepper | 1 | |
| 4 | 41-2503 | CABLE - power | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 5 | 92-270 | BRACKET - cable restraint | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 6 | 91-8199 | SPRING - heater | 6 | |
| 7 | 41-2838 | HARNESS - sensor (humidity, MPC) | 1 | |
| 8 | 104-753 | MOTOR - condenser fan (see 155D4) | 1 | |
| 9 | 41-2953 | HARNESS - condenser fan (see 155D4) | 1 | |
| 10 | 104-753 | MOTOR - evaporator fan (see 155E1) | 3 | |
| 11 | 41-3593 | HARNESS - control box | 1 | |
| 12 | 45-1927 | HEATER | 6 | |
| 13 | 91-8634 | BRACKET - heater | 1 | |
| 14 | 91-8629 | BRACKET - heater | 2 | |
| 55-8891 | SCREW - bracket | 11 | ||
| 15 | 60-328 | VALVE - solenoid (see 158B6) | 1 | |
| 41-3592 | COIL - valve | 1 | ||
| 16 | 41-3401 | THERMOSTAT | 1 | |
| 55-9166 | SCREW - thermostat | 2 | ||
| 17 | 102-671 | COMPRESSOR - scroll (hermetic, see 152A4) | 1 | |
| 102-796 | COMPRESSOR (w/ service valves see 155D13, flanged see 158B3) | 1 | ||
| 18 | NSS | BOX - control (see 158A3) | 1 | |
| 19 | 40-782 | CABLE - compressor | 1 | |
| 20 | 41-3394 | SWITCH - hpco | 1 | |
| 21 | 60-327 | VALVE - solenoid (liquid injection) | 1 | |
| 22 | 66-9032 | VALVE - solenoid (dehumidify, see 146E5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 23 | 40-776 | KIT - thermistor | 1 | |
| 24 | 41-9220 | SENSOR - humidity | 1 |
