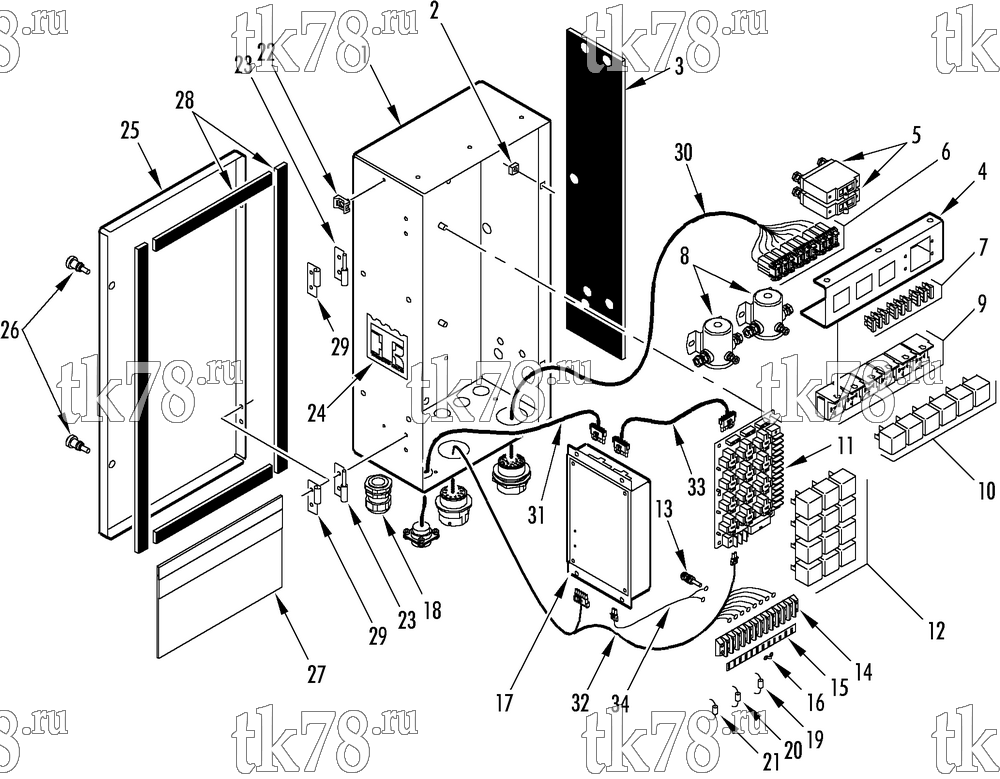

Установкa Thermo King схема CONTROL BOX ASSEMBLY – 158A9
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5740 | BOX - control | 1 | |
| 55-8752 | INSERT (10-32) | 13 | ||
| 55-8711 | INSERT (1/4-20) | 8 | ||
| 2 | 55-3059 | NUT - captive | 2 | |
| 3 | 33-3234 | INSULATION - control box | 1 | |
| 4 | 92-297 | BRACKET - circuit panel | 1 | |
| 55-3027 | SCREW - bracket | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 5 | 41-2455 | BREAKER - circuit (85 amp, manual reset) | 2 | |
| 55-3513 | SCREW - circuit breaker | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 6 | 41-2973 | HOLDER - fuse | 9 | |
| 7 | 44-9344 | FUSE (15 amp, 32VDC) | 9 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-3987 | SOLENOID (24V) | 2 | |
| 55-3018 | SCREW - solenoid | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2993 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1801 | NUT | 2 | ||
| 9 | 44-5537 | SOCKET - relay | 6 | |
| 55-3015 | SCREW - socket | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 10 | 44-9392 | RELAY (dpst) | 6 | |
| 11 | 41-2117 | BOARD - relay (pc) | 1 | |
| 55-2989 | SCREW - board | 5 | ||
| 55-3800 | LOCKWASHER | 5 | ||
| 12 | 41-896 | RELAY (1pdt) | 12 | |
| 13 | 55-3031 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2996 | LOCKWASHER - int th | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 14 | 44-4062 | BOARD - terminal (20 amp) | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 15 | 91-8057 | MARKSTRIP | 1 | |
| 16 | 44-3579 | STRIP - jumper | 1 | |
| 17 | NSS | BOARD - pc controller (see 154D1) | 1 | |
| 18 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 19 | 41-2261 | RESISTOR - assembly | 6 | |
| 20 | 41-2122 | DIODE - clutch | 1 | |
| 21 | 41-2123 | DIODE - complete | 5 | |
| 22 | 99-6093 | MOUNT - cable tie | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 23 | 99-8057 | HINGE - box | 2 | |
| 55-3015 | SCREW - hinge | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2965 | NUT | 4 | ||
| 24 | 99-2789 | NAMEPLATE - TK Logo | 2 | |
| 25 | 92-298 | COVER - control box | 1 | |
| 26 | 55-6771 | SCREW - retaining | 2 | |
| 27 | 92-299 | NAMEPLATE - wiring diagram | 1 | |
| 28 | 99-8986 | STRIP - sealing | A/R | |
| 29 | 99-8056 | HINGE - door | 2 | |
| 55-3015 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 30 | 41-3631 | HARNESS - fuse | 1 | |
| 31 | 41-3632 | HARNESS - diagnostic | 1 | |
| 32 | 41-3633 | HARNESS - control box | 1 | |
| 33 | 41-3634 | HARNESS - interconnecting | 1 | |
| 34 | 41-3635 | HARNESS - power | 1 |
