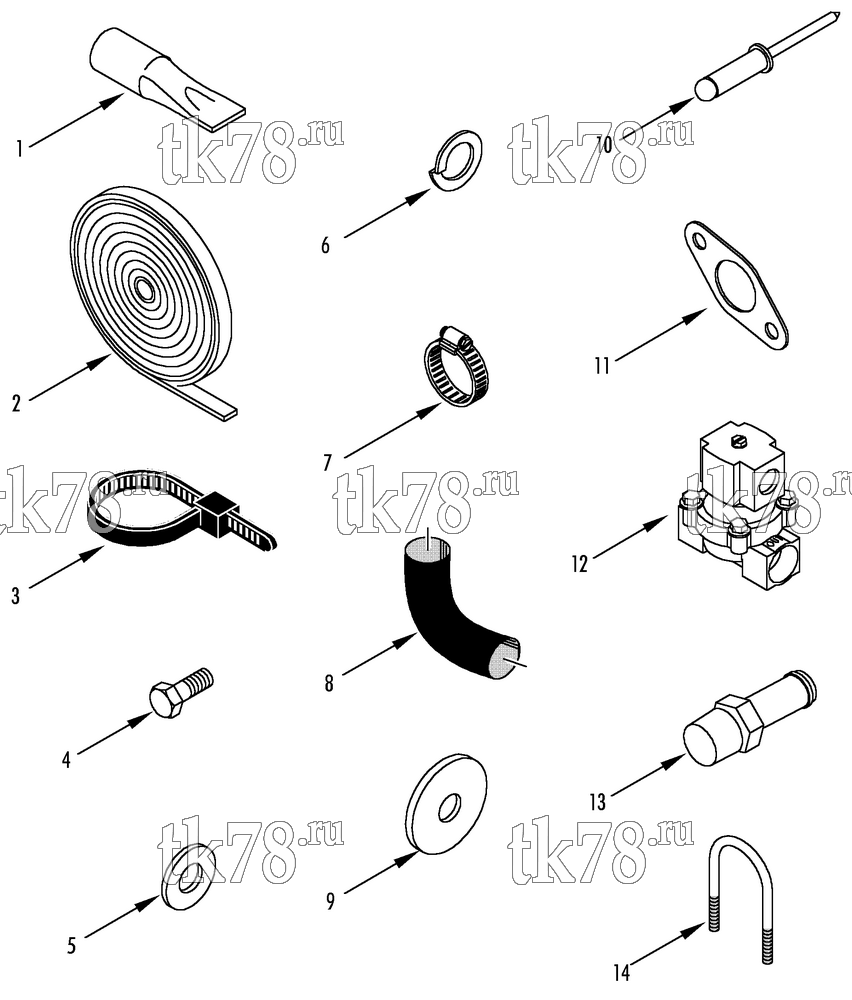

Установкa Thermo King схема INSTALLATION COMPONENTS (818221) – 156D11
Обновление от: 5/13/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check (drain hose) | 4 | |
| 2 | 203-391 | SEALER - tape (1 in wide x 40 in long) | 1 | |
| 3 | 55-2330 | BANDWRAP | 8 | |
| 4 | 55-2957 | SCREW (1/4-20 x 7/8) | 12 | |
| 5 | 55-2086 | FLATWASHER (1/4) | 12 | |
| 6 | 55-1800 | LOCKWASHER (1/4) | 12 | |
| 7 | 55-6726 | CLAMP - hose | 4 | |
| 8 | 91-9006 | HOSE - water (16mm id) | 1 | |
| 9 | 55-8542 | WASHER - special | 6 | |
| 10 | 55-5130 | RIVET - blind | 3 | |
| 11 | 33-2541 | GASKET - suction valve | 1 | |
| 33-2805 | GASKET - discharge valve | 1 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | |
| 13 | 61-140 | TUBE & ADAPTER - valve | 2 | |
| 14 | 55-6788 | U-BOLT - water valve | 2 | |
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 |
