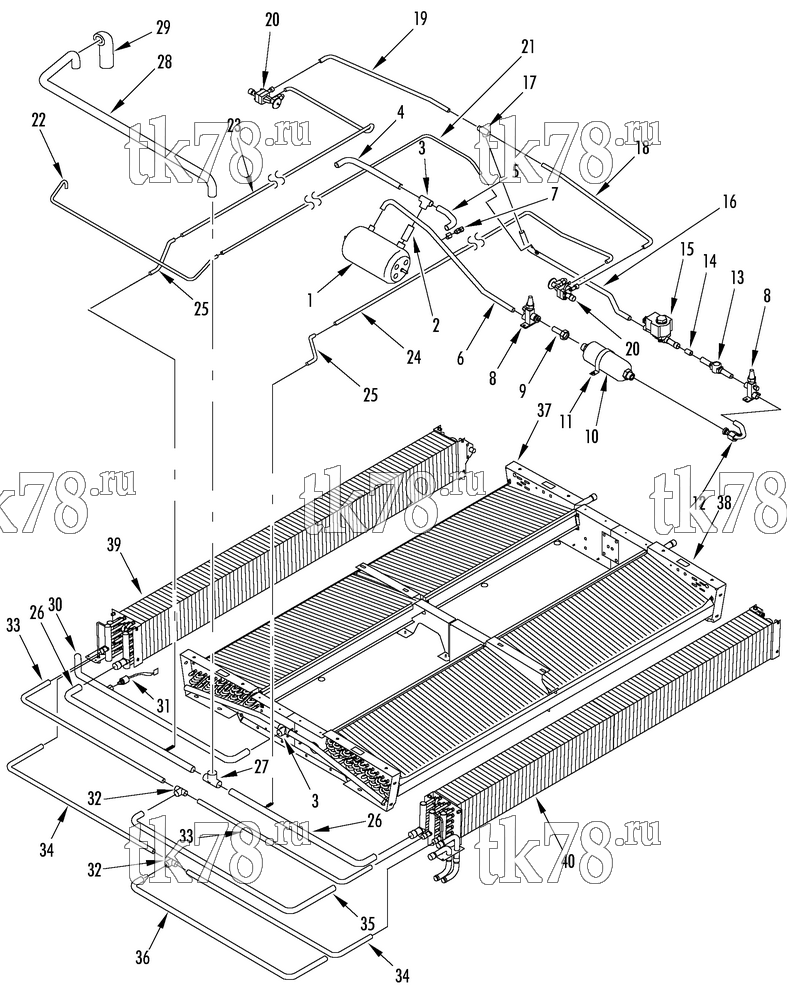

Установкa Thermo King схема REFRIGERATION/HEATING COMPONENTS – 156C3
Обновление от: 3/9/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - tank | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 2 | 66-9993 | TUBE - receiver to tee | 1 | |
| 3 | 55-2950 | TEE (3/4 x 3/4 x 7/8) | 2 | |
| 4 | 66-9995 | TUBE - coil to receiver | 1 | |
| 5 | 66-9994 | TUBE - coil to receiver | 1 | |
| 6 | 66-9988 | TUBE - receiver to valve | 1 | |
| 7 | 66-9356 | VALVE - relief | 1 | |
| 55-9183 | FITTING - saddle | 1 | ||
| 8 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 1 | ||
| 9 | 66-9979 | TUBE - shutoff to dehydrator | 1 | |
| 66-9913 | TUBE | 1 | ||
| 55-6356 | SHOUDLER | 1 | ||
| 55-6396 | NUT | 1 | ||
| 10 | 66-9352 | DEHYDRATOR - filter/drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 11 | 55-2688 | CLAMP - dehydrator | 1 | |
| 12 | 66-9980 | TUBE - dehydrator to shutoff | 1 | |
| 55-6356 | SHOULDER | 1 | ||
| 55-6396 | NUT | 1 | ||
| 13 | 66-9856 | SIGHT GLASS | 1 | |
| 14 | 66-9981 | TUBE - sight glass to valve | 1 | |
| 15 | 66-9353 | VALVE - solenoid | 1 | |
| 41-3574 | COIL - valve | 1 | ||
| 16 | 66-9996 | TUBE - solenoid to tee | 1 | |
| 17 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 18 | 66-9989 | TUBE - tee to expansion valve (curbside) | 1 | |
| 19 | 66-9987 | TUBE - tee to expansion valve (roadside) | 1 | |
| 20 | 66-9855 | VALVE - expansion | 2 | |
| 21 | 66-9985 | TUBE - hot gas (roadside) | 1 | |
| 22 | 66-9984 | TUBE - hot gas (roadside) | 1 | |
| 23 | 66-9983 | TUBE - equalizer (roadside) | 1 | |
| 24 | 66-9986 | TUBE - equalizer (roadside) | 1 | |
| 25 | 66-9982 | TUBE - equalizer | 2 | |
| 26 | 66-9992 | TUBE - coil to tee | 2 | |
| 27 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 28 | 66-9991 | TUBE - tee to bulkhead | 1 | |
| 29 | 92-145 | TUBE - insulation | 1 | |
| 30 | 66-9990 | TUBE - bulkhead to coil | 1 | |
| 31 | 44-7991 | SWITCH - hpco | 1 | |
| 66-4553 | FITTING - saddle (hpco) | 1 | ||
| 32 | 55-7065 | TEE (5/8 x 5/8 x 3/4) | 2 | |
| 33 | 66-9997 | TUBE - water outlet | 2 | |
| 34 | 66-9998 | TUBE - water inlet | 2 | |
| 35 | 66-9999 | TUBE - water outlet | 1 | |
| 36 | 61-101 | TUBE - water inlet | 1 | |
| 37 | 67-1624 | COIL - condenser (roadside, see 156C2) | 1 | |
| 38 | 67-1623 | COIL - condenser (curbside, see 156C2) | 1 | |
| 39 | 67-1625 | COIL - evaporator (roadside, see 155C12) | 1 | |
| 40 | 67-1626 | COIL - evaporator (curbside, see 155C12) | 1 |
