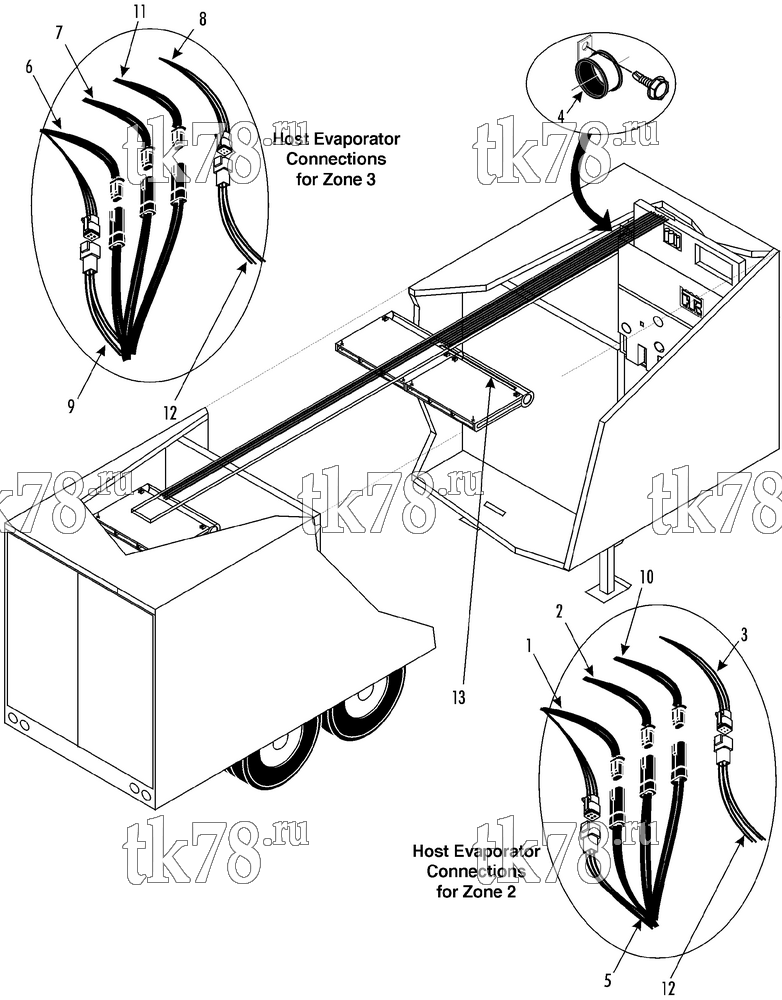

Установкa Thermo King схема TLE-3 ZONE 3 INSTALLATION (KIT 818068) – 156B11
Обновление от: 2/4/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2271 | HARNESS - remote evaporator (zone 2) | 1 | |
| 2 | 41-2617 | HARNESS - TLE (zone 2, fan 2) | 1 | |
| 3 | 41-1381 | HARNESS - evaporator sensor (zone 2) | 1 | |
| 4 | 55-3359 | CLAMP - harness | 30 | |
| 55-6350 | SCREW - clamp | 30 | ||
| 5 | 41-3468 | HARNESS - evaporator (remote, host unit, zone 2) | 1 | |
| 6 | 41-2272 | HARNESS - remote evaporator (zone 3) | 1 | |
| 7 | 41-2619 | HARNESS - TLE (zone 3, fan 2) | 1 | |
| 8 | 41-1382 | HARNESS - evaporator sensor (zone 3) | 1 | |
| 9 | 41-2892 | HARNESS - evaporator (remote, host unit, zone 3) | 1 | |
| 10 | 41-2618 | HARNESS - TLE (zone 2, fan 2) | 1 | |
| 11 | 41-2686 | HARNESS - TLE (zone 3, fan 3) | 1 | |
| 12 | 41-3267 | HARNESS - sensor | 1 | |
| 13 | 41-3471 | HARNESS - interconnecting | 1 |
