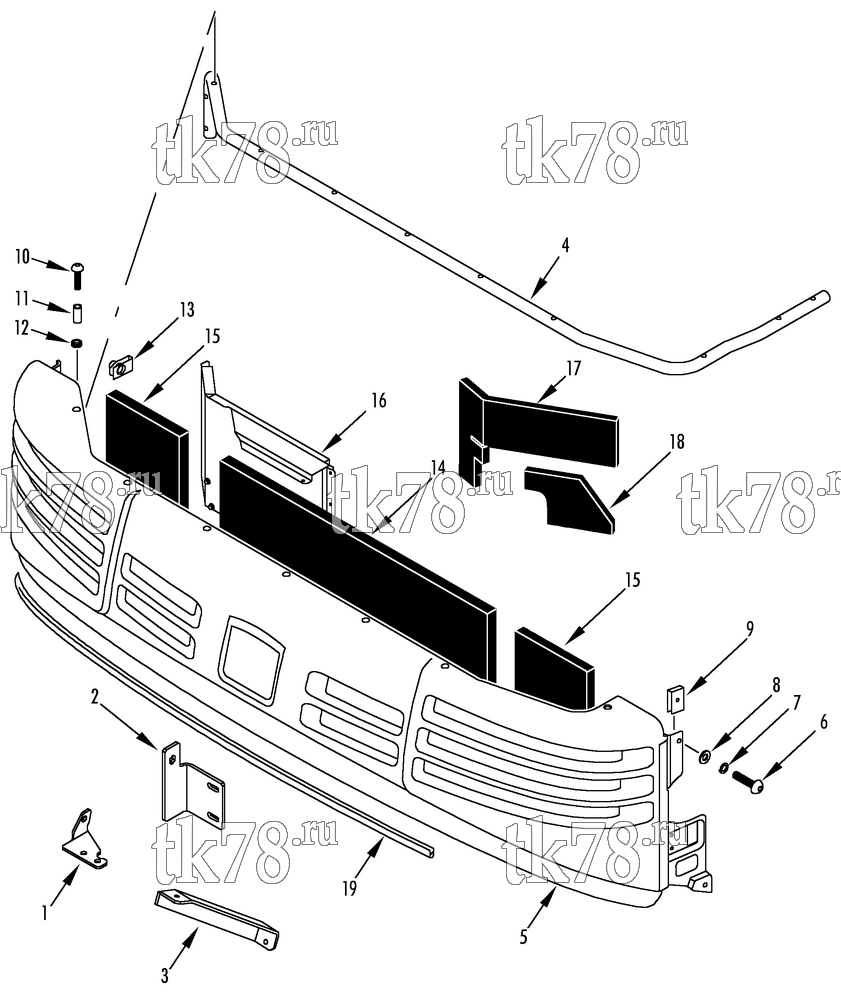

Установкa Thermo King схема FRONT GRILLE GROUP (Before 8/01 TSA, Before 1/02 IRE) – 156A4
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9457 | BRACKET - cover (before 5/00) | 1 | |
| 55-2963 | SCREW - bracket (Before 5/00) | 2 | ||
| 55-2959 | LOCKWASHER (Before 5/00) | 2 | ||
| 55-2958 | FLATWASHER (before 5/00) | 2 | ||
| 55-9159 | INSERT (before 5/00) | 2 | ||
| 2 | 91-9933 | BRACKET - panel (lower, curbside, before 5/00) | 1 | |
| 55-8979 | INSERT (before 5/00) | 1 | ||
| 55-4953 | NUT - bracket (Before 5/00) | 2 | ||
| 55-2086 | FLATWASHER (before 5/00) | 2 | ||
| 3 | 91-9459 | SUPPORT - cover | 1 | |
| 55-2977 | SCREW - support | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 4 | 98-5541 | TUBE - grille support | 1 | |
| 55-3675 | SCREW - tube (1/4-20 x 1.75 in) | 4 | ||
| 55-2977 | SCREW - tube (1/4-20 x 1.75 in) | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-8711 | INSERT | 8 | ||
| 55-4953 | NUT | 4 | ||
| 5 | 98-5536 | GRILLE - front | 1 | |
| 6 | 55-2969 | SCREW - grille | 5 | |
| 7 | 55-2959 | LOCKWASHER | 5 | |
| 8 | 55-2958 | FLATWASHER | 5 | |
| 9 | 55-9324 | NUT - blind | 5 | |
| 10 | 55-5965 | SCREW - grille | 7 | |
| 55-2086 | FLATWASHER | 8 | ||
| 11 | 99-9485 | SPACER | 7 | |
| 12 | 33-547 | GROMMET (0.375 id) | 7 | |
| 55-5970 | WASHER - sealing | 1 | ||
| 55-4742 | WASHER - special | 6 | ||
| 13 | 55-9325 | NUT - U | 1 | |
| 14 | 91-9934 | PANEL - insulation, center | 1 | |
| 15 | 91-9840 | INSULATION - panel (sides) | 2 | |
| 16 | 91-9458 | PANEL - blockoff | 1 | |
| 55-2957 | SCREW - panel | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 17 | 91-9935 | INSULATION - blockoff panel | 1 | |
| 18 | 91-9936 | INSULATION - blockoff panel | 1 | |
| 19 | 33-3268 | EXTRUSION - sealing (59.5 in lg) | 1 |
