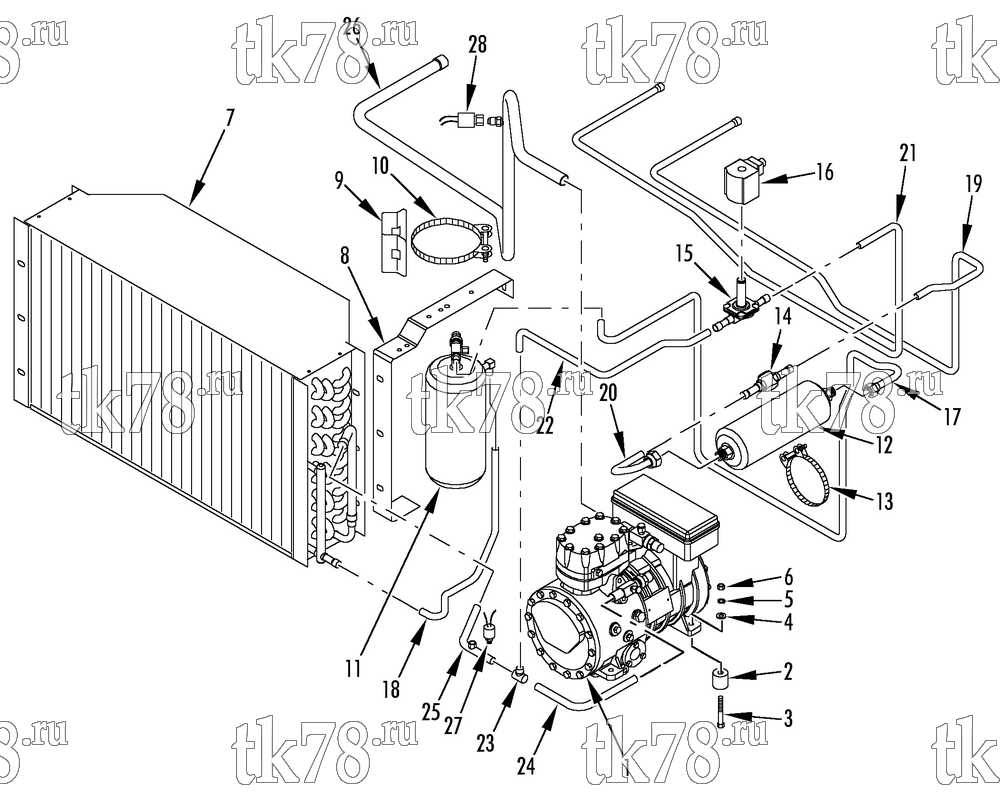

Установкa Thermo King схема REFRIGERATION GROUP – 155E5
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-722 | COMPRESSOR (D2 11) | 1 | |
| 41-6450 | BOX - junction | 1 | ||
| 203-513 | OIL - compressor | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 2 | 51-173 | SPACER - compressor support | 4 | |
| 3 | 55-7660 | SCREW - compressor | 4 | |
| 4 | 55-7085 | FLATWASHER | 4 | |
| 5 | 55-8577 | WASHER - special | 4 | |
| 6 | 55-7006 | NUT | 4 | |
| 7 | 67-1619 | COIL - condenser | 1 | |
| 55-8893 | WASHER - special | 3 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7354 | NUT | 2 | ||
| 8 | 91-9985 | BRACKET - condenser coil | 1 | |
| 55-7035 | SCREW - bracket | 3 | ||
| 55-8893 | WASHER - fender | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 9 | 91-9986 | SUPPORT - receiver tank | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 10 | 91-9987 | CLAMP - receiver tank | 1 | |
| 11 | 67-1798 | TANK - receiver | 1 | |
| 12 | 66-8471 | DEHYDRATOR | 1 | |
|
14-00326-03 OEM | Дегидратор, Supra/Xarios | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios | 1 300 ₽ |
|
| 33-1015 | O-RING (3/8) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 55-9486 | CLAMP - dehydrator | 1 | |
| 14 | 61-4565 | INDICATOR - liquid | 1 | |
| 15 | 66-7878 | BODY - solenoid | 1 | |
| 16 | 41-5051 | COIL - valve (24V) | 1 | |
| 55-9002 | SCREW - coil | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 17 | 66-9966 | TUBE - receiver tank to dehydrator | 1 | |
| 18 | 66-9967 | TUBE - condenser coil to receiver | 1 | |
| 92-1502 | CLAMP - tube | 1 | ||
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 19 | 66-9968 | TUBE - sight glass to evaporator | 1 | |
| 20 | 66-9969 | TUBE - dehydrator to sight glass | 1 | |
| 21 | 66-9970 | TUBE - solenoid to evaporator | 1 | |
| 22 | 66-9971 | TUBE - tee to solenoid | 1 | |
| 23 | 55-2181 | TEE | 1 | |
| 24 | 66-9972 | TUBE - compressor to tee | 1 | |
| 25 | 66-9973 | TUBE - tee to condenser coil | 1 | |
| 26 | 66-9974 | TUBE - evaporator to compressor | 1 | |
| 55-9506 | ADAPTER - lpco switch | 1 | ||
| 27 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 28 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
