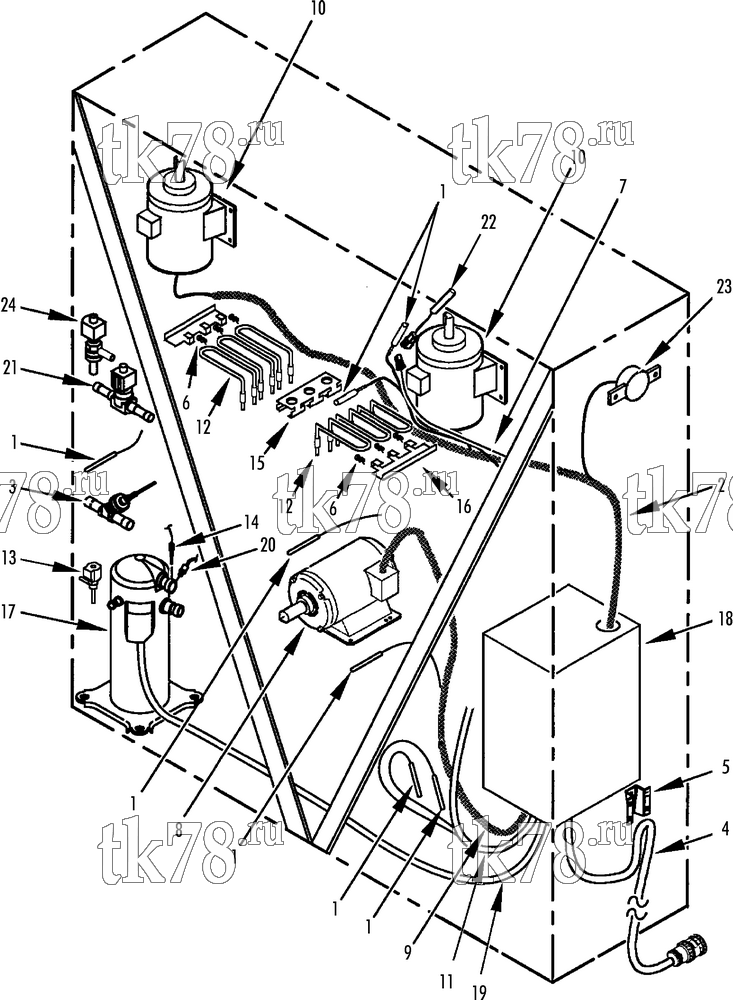

Установкa Thermo King схема ELECTRICAL COMPONENTS – 155D6
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-791 | SENSOR - kit | A/R | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 2 | 41-3277 | HARNESS - evaporator fans & heaters (see 152C1) | 1 | |
| 3 | 66-9934 | VALVE - stepper | 1 | |
| 4 | 45-1992 | CABLE - power | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 5 | 91-6988 | BRACKET - cable restraint | 1 | |
| 92-2777 | BRACKET - cable power | 1 | ||
| 55-9164 | SCREW - cable | 1 | ||
| 55-7357 | FLATWASHER | 1 | ||
| 55-7344 | NUT | 1 | ||
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 6 | 91-8140 | SPRING - heater | 6 | |
| 7 | 41-2838 | HARNESS - sensor (humidity, MPC) | 1 | |
| 8 | 104-753 | MOTOR - condenser fan (see 140D2) | 1 | |
| 9 | 41-2953 | HARNESS - condenser fan (see 140D2) | 1 | |
| 10 | 104-691 | MOTOR - evaporator fan (see 152C1) | 2 | |
| 11 | 41-3593 | HARNESS - control box | 1 | |
| 12 | 45-1791 | HEATER (600 mm wire) | 6 | |
| 45-1927 | HEATER (2000 mm wire) | 1 | ||
| 13 | 60-327 | VALVE - solenoid (see 154E9) | 1 | |
| 14 | 41-2447 | SENSOR - head temperature | 1 | |
| 15 | 91-8142 | BRACKET - heater | 1 | |
| 16 | 91-8467 | BRACKET - heater | 2 | |
| 55-8891 | SCREW - bracket | 11 | ||
| 17 | 102-796 | COMPRESSOR - scroll (see 152A4) | 1 | |
| 18 | NSS | BOX - control (see 152A3) | 1 | |
| 55-9810 | SCREW - control box | 4 | ||
| 55-8893 | WASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 4 | ||
| 19 | 40-782 | CABLE - compressor | 1 | |
| 20 | 41-4004 | SWITCH - hpco | 1 | |
| 21 | 60-324 | SOLENOID - dehumidifier | 1 | |
| 22 | 41-4568 | SENSOR - humidity | 1 | |
| 23 | 41-3401 | THERMOSTAT | 1 | |
| 55-9166 | SCREW - thermostat | 2 | ||
| 24 | 60-328 | VALVE - solenoid | 1 |
