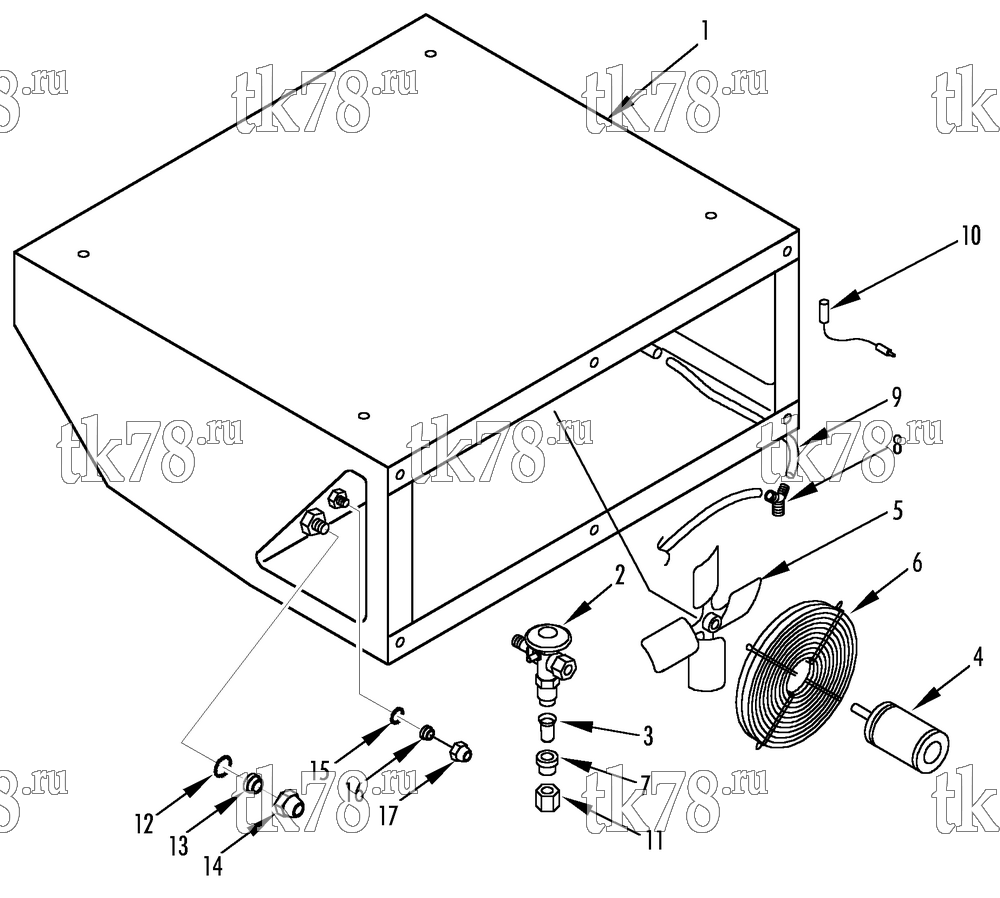

Установкa Thermo King схема EVAPORATOR GROUP (270 mm) – 154E7
Обновление от: 1/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1584 | COIL - evaporator | 1 | |
| 2 | 66-9314 | VALVE - expansion | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 66-9319 | NOZZLE | 1 | |
| 4 | 41-2281 | MOTOR (14V) | 1 | |
|
10-41-2281 | Электромотор вентилятора 12V, V/VM-Series | 8 750 ₽ |
|
| 41-2282 | MOTOR (27V) | 1 | ||
| 41-2501 | BRUSH | 2 | ||
| 41-934 | CAP - brush | 2 | ||
| 22-988 | SEAL - shaft | 2 | ||
| 5 | 78-964 | FAN | 1 | |
| 6 | 91-6350 | GUARD - fan | 1 | |
| 55-8549 | SCREW | 1 | ||
| 55-8893 | FLATWASHER | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 7 | 66-9324 | SHOULDER - expansion valve | 1 | |
| 8 | 55-9258 | TEE - hose | 1 | |
| 9 | 11-9223 | HOSE - drain | 1 | |
| 10 | 41-3143 | SENSOR | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 1 | ||
| 11 | 55-9290 | NUT - expansion valve | 1 | |
| 12 | 33-2115 | O-RING (#10) | 1 | |
| 13 | 55-9288 | SHOULDER - o-ring (#10) | 1 | |
| 14 | 55-9289 | NUT - adapter (o-ring, #10) | 1 | |
| 15 | 33-1015 | O-RING (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 55-9286 | SHOULDER - o-ring (#6) | 1 | |
| 17 | 55-9287 | NUT - adapter (#6) | 1 |
