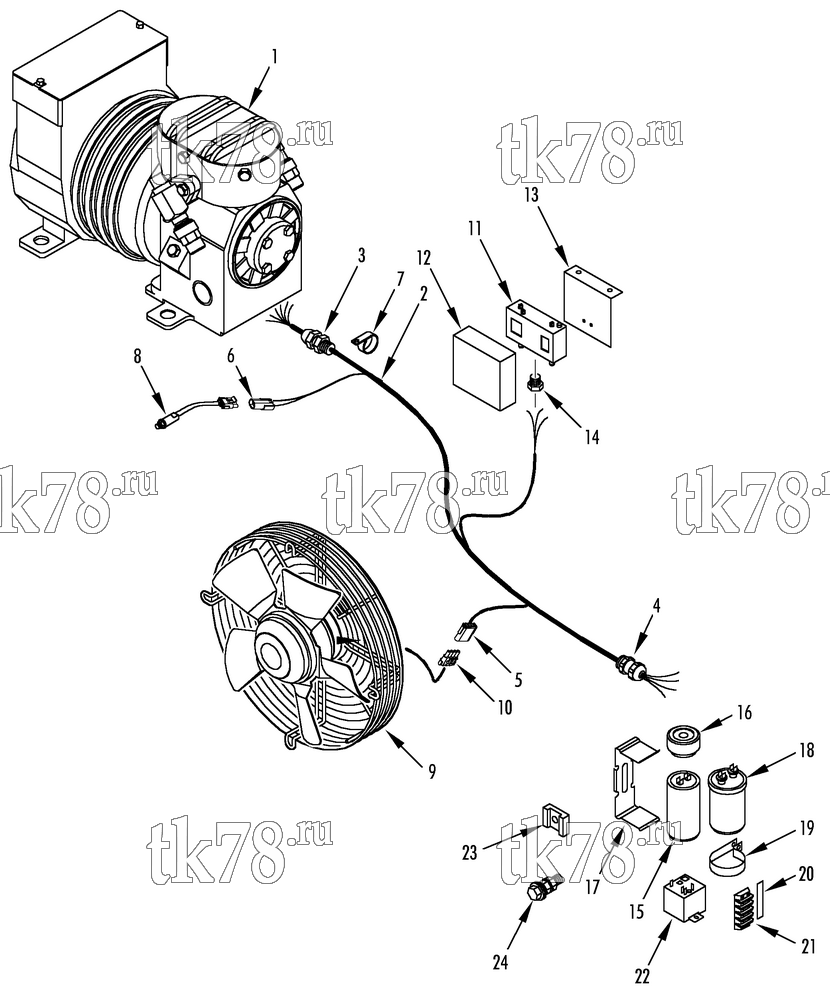

Установкa Thermo King схема ELECTRICAL COMPONENTS – 154A7
Обновление от: 3/23/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-679 | COMPRESSOR (1/2hp, 115V, see 154A6) | 1 | |
| 2 | 41-3152 | HARNESS - main | 1 | |
| 3 | 55-5111 | CONNECTOR - liquid tite | 1 | |
| 4 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 5 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 6 | 44-5835 | CONNECTOR - shroud (2 terminal) | 1 | |
| 7 | 55-4865 | CLAMP | 2 | |
| 55-1587 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 55-2330 | BANDWRAP | 3 | ||
| 8 | 41-3146 | SWITCH - hpco | 1 | |
| 9 | 41-3144 | MOTOR/FAN/GRILLE | 1 | |
| 55-3843 | SCREW - fan | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 10 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 11 | 41-3145 | SWITCH - dual pressure (see 154A7, before 9/00) | 1 | |
| 41-4781 | SWITCH - dual pressure (see 154A7, 9/00 & after) | 1 | ||
| 55-2989 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 12 | 91-9650 | COVER - switch | 1 | |
| 13 | 91-9649 | BRACKET - gauge | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 14 | 33-415 | GROMMET | 1 | |
| 15 | 41-3147 | CAPACITOR - compressor (400 MFD) | 1 | |
| 16 | 41-3148 | COVER - capacitor | 1 | |
| 17 | 41-3149 | BRACKET - capacitor | 1 | |
| 55-3564 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 18 | 41-3150 | CAPACITOR - fan (12.5 MFD) | 1 | |
| 19 | 55-7147 | CLAMP - capacitor | 2 | |
| 55-3099 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 20 | 91-9653 | MARKSTRIP | 1 | |
| 21 | 44-4341 | BOARD - terminal | 1 | |
| 55-3099 | SCREW - board | 2 | ||
| 55-396 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 22 | 41-3151 | RELAY - motor starting | 1 | |
| 55-3256 | SCREW - relay | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-5754 | NUT | 1 | ||
| 23 | 99-6093 | MOUNT - cable tie | 1 | |
| 55-3136 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 4 | ||
| 24 | 55-3000 | SCREW - ground | 1 | |
| 55-396 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 1 |
