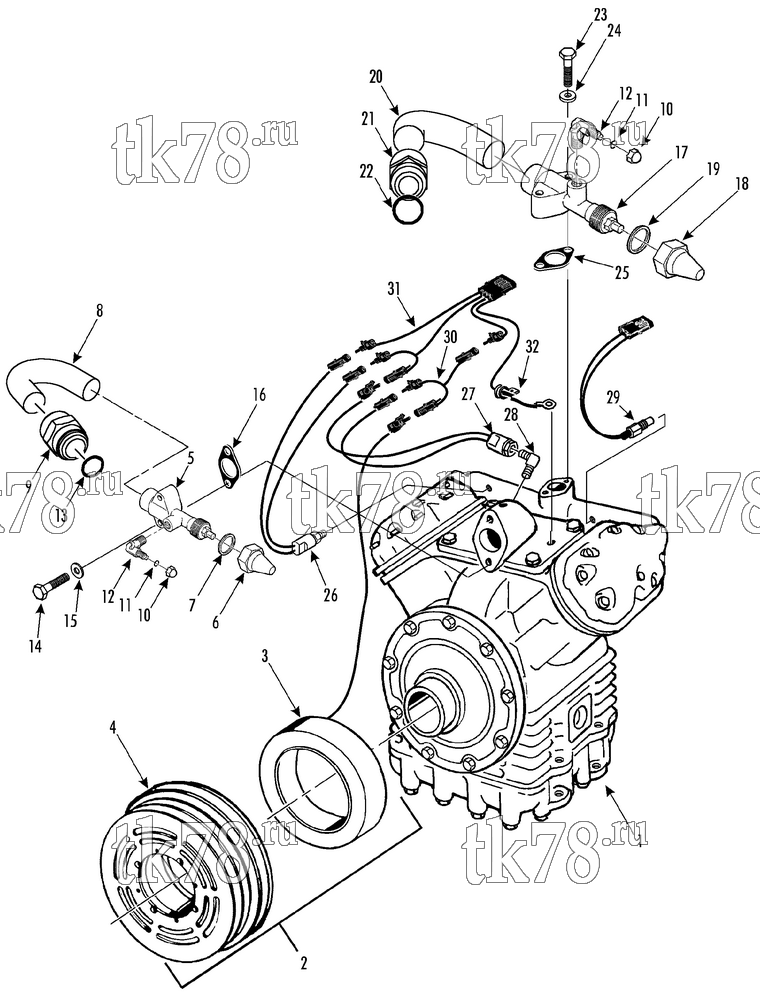

Установкa Thermo King схема COMPRESSOR GROUP (9180C29G10, KIT 718304) – 153E6
Обновление от: 12/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 8102-916 | COMPRESSOR - X426 C5 (bus, reman, see 230C5) | 1 | ||
| 102-913 | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | ||
| 8102-913 | COMPRESSOR - X426 C5 (subassembly, reman, see 231A2) | 1 | ||
| 2 | 107-150 | KIT - clutch drive repair (clutch does not incl pulley or field, see 153E7) | 1 | |
| 3 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 4 | 77-1414 | PULLEY (3-3V grooves, 8.0 in od) | 1 | |
| 5 | 66-9576 | TUBE & VALVE - suction | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 6 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 7 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 8 | 66-9721 | TUBE - suction | 1 | |
| 9 | 55-4185 | ADAPTER | 1 | |
| 10 | 55-1983 | CAP | 2 | |
| 11 | 33-768 | GASKET (copper) | 2 | |
| 12 | 55-466 | ELBOW | 2 | |
| 13 | 33-544 | O-RING | 1 | |
| 14 | 55-201 | SCREW - suction valve | 2 | |
| 15 | 55-895 | FLATWASHER | 2 | |
| 16 | 33-2541 | GASKET - suction valve | 1 | |
| 17 | 66-9575 | TUBE & VALVE - discharge (before 4/01, long tube) | 1 | |
| 61-875 | TUBE & VALVE - discharge (4/01 & after, short tube) | 1 | ||
| 66-2140 | VALVE - discharge | 1 | ||
| 18 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 19 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 20 | 66-9722 | TUBE - discharge (before 4/01, long tube) | 1 | |
| 66-9383 | TUBE - discharge (4/01 & after, short tube) | 1 | ||
| 21 | 55-3808 | ADAPTER | 1 | |
| 22 | 33-594 | O-RING | 1 | |
| 23 | 55-6776 | SCREW - discharge valve | 2 | |
| 24 | 55-6804 | WASHER - sealing | 2 | |
| 25 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 26 | 44-7814 | SWITCH - hpco | 1 | |
| 27 | 44-7813 | SWITCH - lpco | 1 | |
| 28 | 55-308 | ELBOW | 1 | |
| 29 | 41-3345 | SENSOR - high temperature | 1 | |
| 30 | 41-2179 | HARNESS - compressor | 1 | |
| 31 | 41-1236 | HARNESS - compressor | 1 | |
| 55-3024 | SCREW - ground | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 32 | 55-5261 | CLAMP - harness | 3 |
