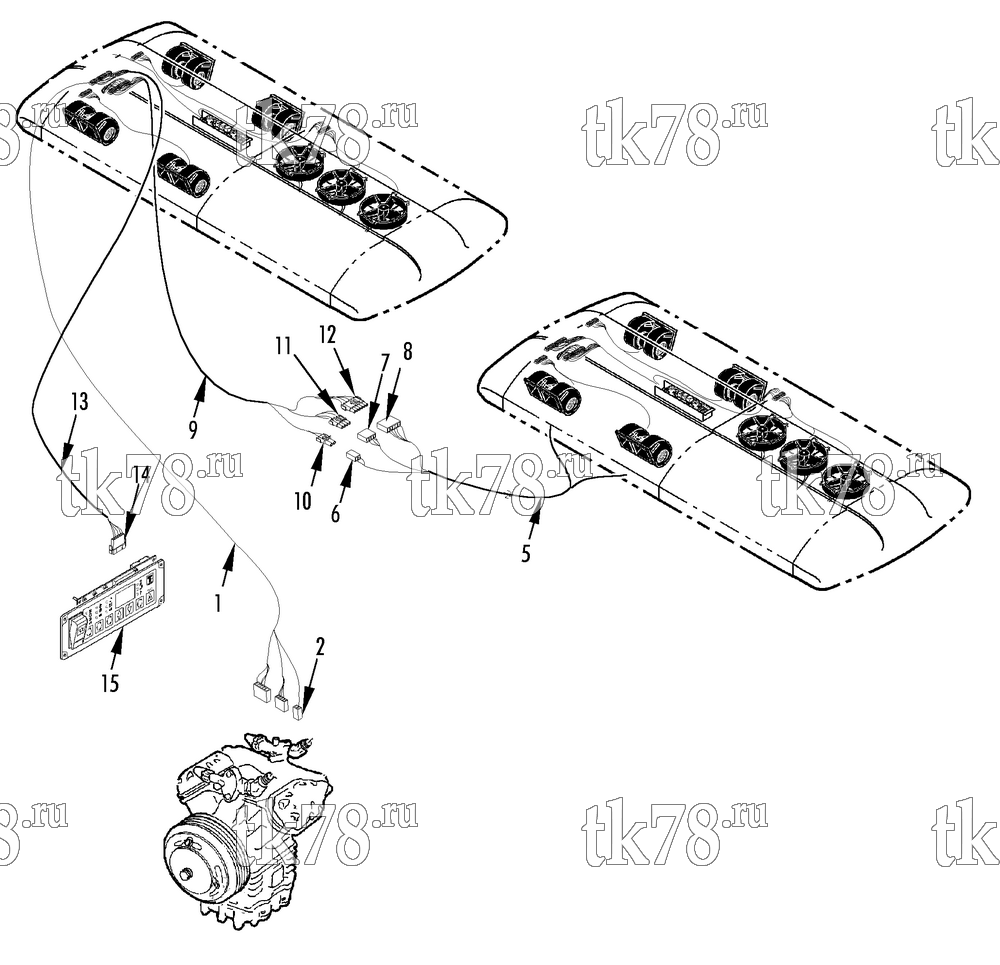

Установкa Thermo King схема HARNESS CONNECTIONS (KIT 715416) – 152B11
Обновление от: 3/12/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2887 | HARNESS - compressor (14 meters) | 1 | |
| 2 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 4 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 5 | 41-2888 | HARNESS - interconnect | 1 | |
| 6 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 7 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 8 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 9 | 41-2889 | HARNESS - interconnect | 1 | |
| 10 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 11 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 12 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 13 | 41-2882 | HARNESS - driver panel | 1 | |
| 14 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 15 | 45-1773 | PANEL - control | 1 |
