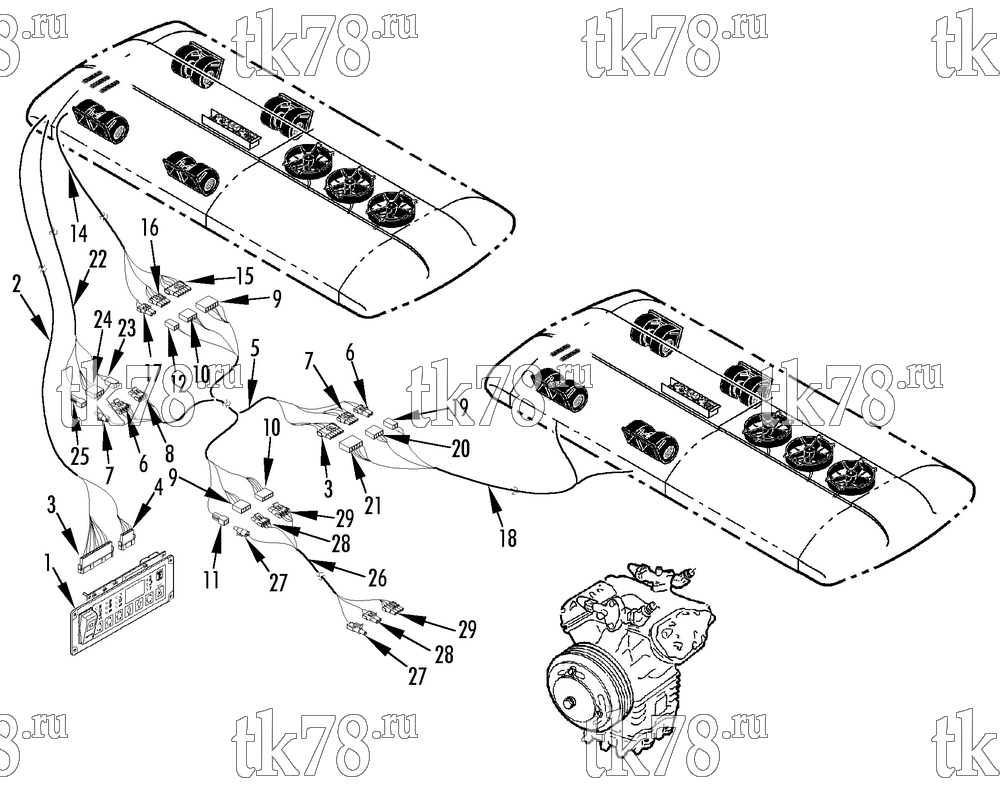

Установкa Thermo King схема HARNESS ART ARTICULATION (099062) – 152B10
Обновление от: 3/12/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 2 | 41-2882 | HARNESS - driver panel (8 m) | 1 | |
| 3 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 4 | 41-1508 | SOCKET - special switch (8-pin) | 1 | |
| 5 | 41-2883 | HARNESS - interconnecting | 1 | |
| 6 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 7 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 8 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 9 | 44-5835 | CONNECTOR (2-pin) | 2 | |
| 10 | 44-7880 | CONNECTOR - shroud (4-pin) | 2 | |
| 11 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 12 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 13 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 14 | 41-2884 | HARNESS - master | 1 | |
| 15 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 16 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 17 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 18 | 41-2890 | HARNESS - slave | 1 | |
| 19 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 20 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 21 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 22 | 41-2885 | HARNESS - compressor (master) | 1 | |
| 23 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 24 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 25 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 26 | 41-2886 | HARNESS - compressor | 1 | |
| 27 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 28 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 29 | 44-7881 | CONNECTOR - tower (4-pin) | 2 |
