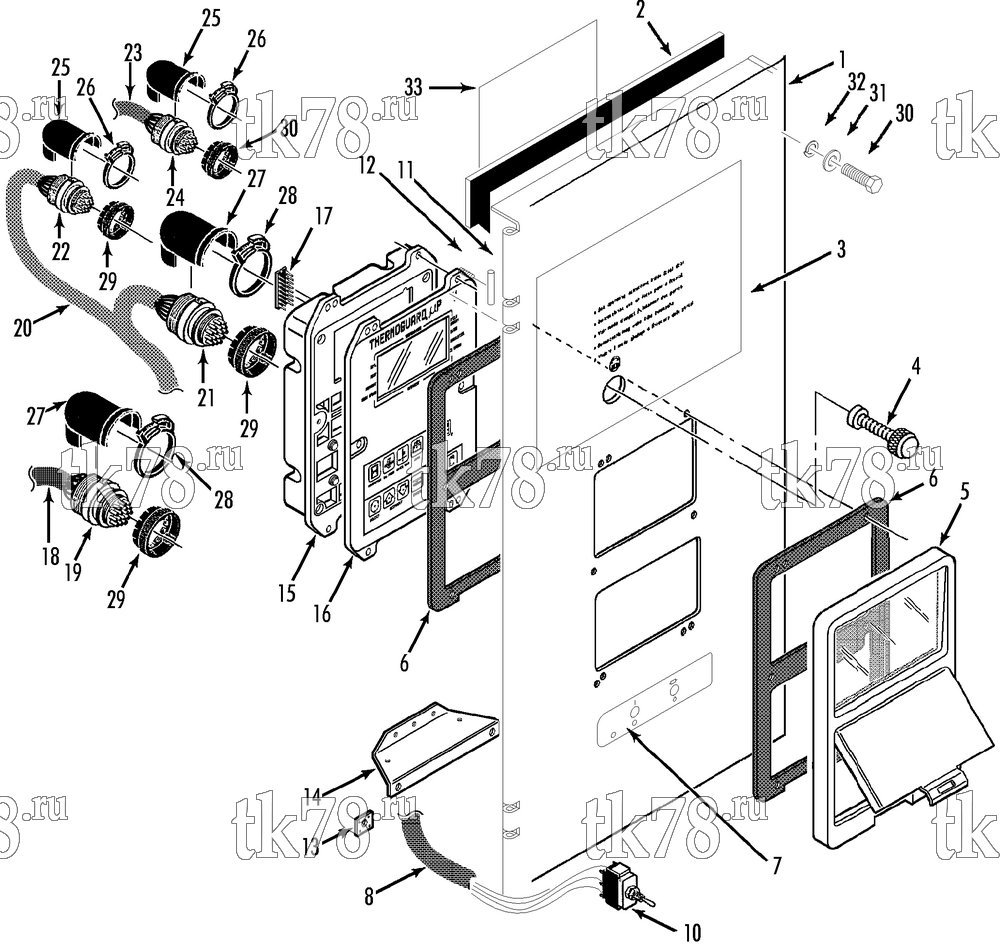

Установкa Thermo King схема CONTROL BOX COVER (SL-300 30 SR) – 152A9
Обновление от: 11/2/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5230 | COVER - control box | 1 | |
| 2 | 33-2973 | GASKET - cover | 1 | |
| 3 | 91-8271 | NAMEPLATE - See Operating Instructions | 1 | |
| 4 | 91-8270 | BUTTON - reset (380V) | 1 | |
| 44-7198 | BUTTON - reset (230V) | 1 | ||
| 5 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 6 | 33-2894 | GASKET - bezel | 2 | |
| 7 | 91-7921 | NAMEPLATE - switch panel | 1 | |
| 8 | 41-2855 | HARNESS - switch | 1 | |
| 44-5719 | CONNECTOR (8-pin) | 1 | ||
| 44-5622 | CONNECTOR (6-pin) | 1 | ||
| 10 | 44-7792 | SWITCH - on/off | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 11 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 12 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 13 | 91-7718 | COVER - access | 1 | |
| 55-3427 | SCREW - cover | 4 | ||
| 55-2359 | FLATWASHER | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 14 | 91-5728 | BRACKET - harness | 1 | |
| 15 | 45-1801 | CONTROLLER - microprocessor (w/ communications) | 1 | |
| 45-1802 | CONTROLLER - microprocessor (w/o communications) | 1 | ||
| 55-4580 | SCREW - controller | 4 | ||
| 55-4331 | SCREW - controller | 2 | ||
| 55-2993 | LOCKWASHER (internal tooth) | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 16 | 91-9806 | FLACEPLATE - Thermoguard uP-V | 1 | |
| 17 | 40-771 | KIT - eprom chip (V612) | 1 | |
| 18 | 41-1917 | HARNESS - sensor | 1 | |
| 19 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 20 | 41-2715 | HARNESS - interconnecting | 1 | |
| 21 | 41-743 | CONNECTOR - circular (17-pin) | 1 | |
| 22 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 23 | 41-1923 | HARNESS - communications | 1 | |
| 24 | 41-746 | CONNECTOR - circular (17-pin) | 1 | |
| 25 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 26 | 55-7617 | CLAMP (plastic) | 2 | |
| 27 | 41-2255 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 28 | 55-7618 | CLAMP (plastic) | 2 | |
| 29 | 91-8066 | NAMEPLATE - Factory Settings | 1 | |
| 30 | 55-6352 | SCREW - cover | 3 | |
| 31 | 55-6772 | LOCKWASHER | 3 | |
| 32 | 55-3028 | WASHER - sealing | 3 | |
| 33 | 92-174 | NAMEPLATE - relay | 1 |
