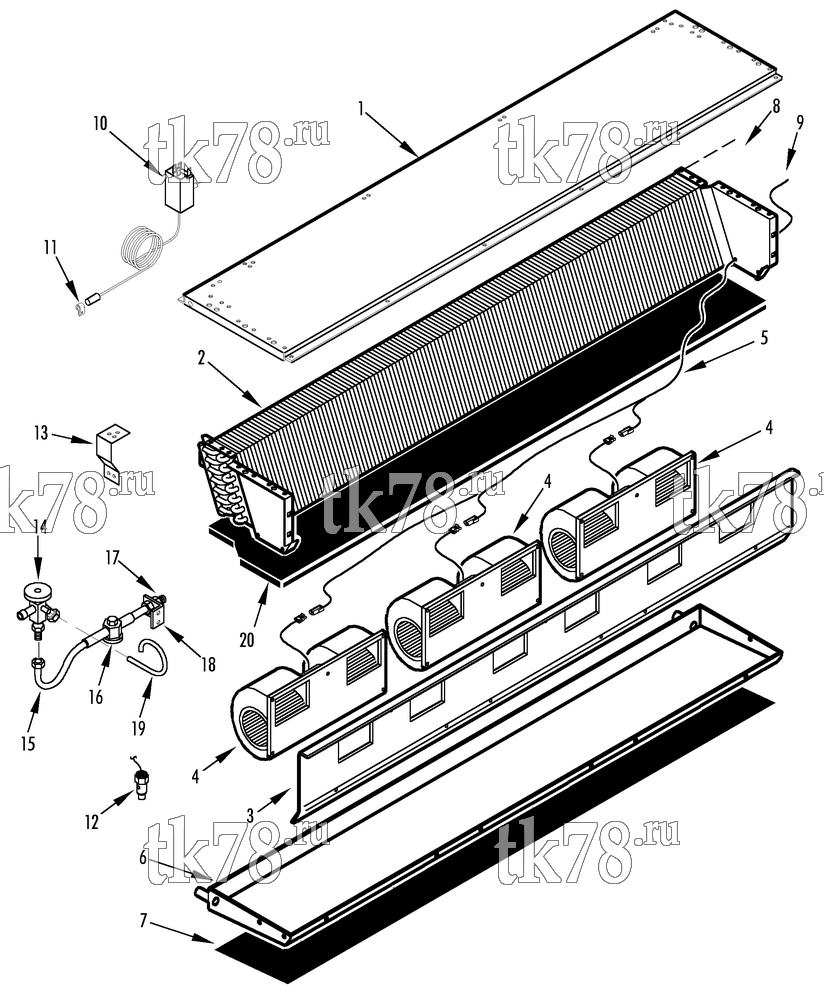

Установкa Thermo King схема EVAPORATOR COMPONENTS (S-30 LP 1000) – 151D4
Обновление от: 9/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5488 | PANEL - top | 1 | |
| 55-8256 | RIVET - threaded | 4 | ||
| 2 | 67-1563 | COIL - evaporator | 1 | |
| 3 | 91-9345 | PANEL - blower housing | 1 | |
| 55-1587 | SCREW - panel | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 4 | 41-2914 | BLOWER (12V) | 3 | |
| 41-2915 | BLOWER (24V) | 3 | ||
| 55-1844 | SCREW - blower | 10 | ||
| 55-2201 | FLATWASHER | 10 | ||
| 55-4223 | NUT | 10 | ||
| 5 | 41-2916 | HARNESS - evaporator (12V) | 1 | |
| 41-2917 | HARNESS - evaporator (24V) | 1 | ||
| 6 | 98-5489 | PAN - drain | 1 | |
| 7 | 91-9358 | GASKET - drain pan | A/R | |
| 8 | 44-9428 | BOARD - terminal | 1 | |
| 91-9342 | MARKSTRIP | 1 | ||
| 55-3442 | SCREW - board | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 9 | 33-415 | GROMMET | 1 | |
| 10 | 41-1719 | THERMOSTAT - mechanical | 1 | |
| 91-9894 | KNOB - thermostat | 1 | ||
| 41-2909 | THERMOSTAT - digital (12V) | 1 | ||
| 41-2910 | THERMOSTAT - digital (24V) | 1 | ||
| 11 | 55-546 | CLAMP - sensor | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 1 | ||
| 12 | 41-4175 | SWITCH - lpco | 1 | |
| 13 | 91-7515 | BRACKET - support | 1 | |
| 55-3018 | SCREW - bracket | 1 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 14 | 66-8345 | VALVE - expansion | 1 | |
| 15 | 66-8346 | TUBE - liquid indicator | 1 | |
| 16 | 66-1188 | INDICATOR - liquid | 1 | |
| 17 | 55-8692 | ADAPTER (o-ring seal) | 1 | |
| 18 | 61-4895 | ADAPTER & BRACKET | 1 | |
| 91-7516 | BRACKET - liquid indicator | 1 | ||
| 55-3018 | SCREW - bracket | 5 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-4560 | NUT | 5 | ||
| 19 | 66-9573 | TUBE - equalizer | 2 | |
| 20 | 91-9510 | PAD - foam (condensate) | 1 |
