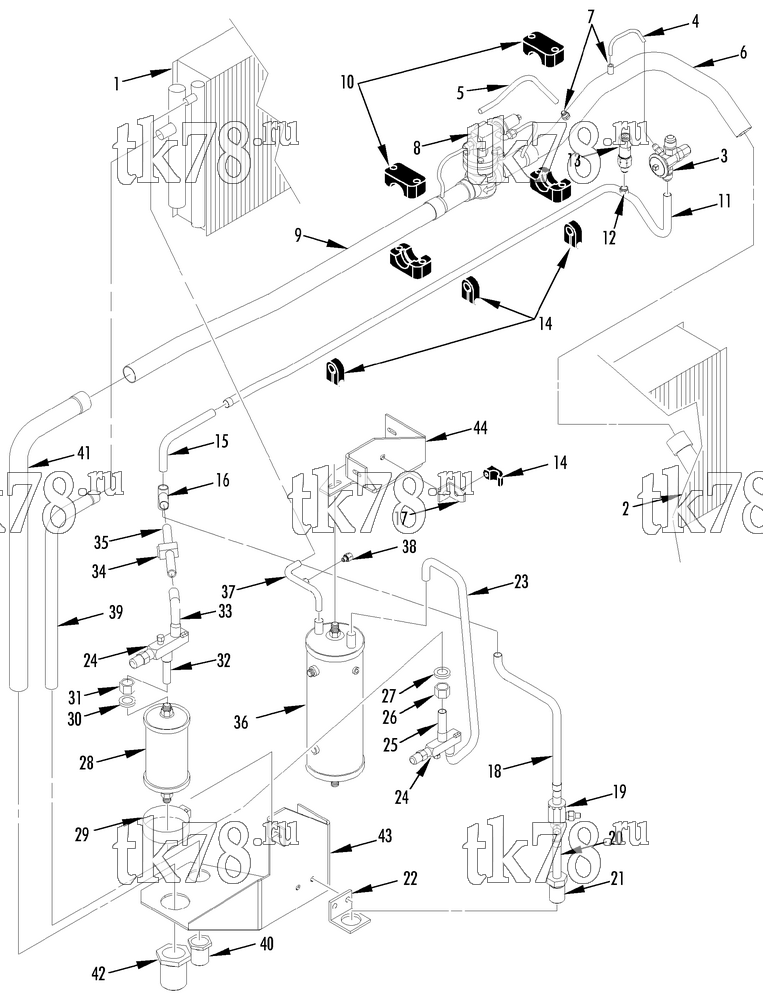

Установкa Thermo King схема REFRIGERATION COMPONENTS (M8) – 151C4
Обновление от: 1/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1553 | COIL - condenser | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-2977 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 2 | 67-1554 | COIL - evaporator/heater | 1 | |
| 91-9300 | STRIP - sealing (48 in) | 1 | ||
| 91-9299 | INSULATION - coil | 1 | ||
| 55-2977 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-8711 | INSERT | 6 | ||
| 3 | 66-9666 | VALVE - expansion | 1 | |
| 4 | 66-9667 | TUBE - equalizer | 1 | |
| 5 | 66-9668 | TUBE - epr to pilot | 1 | |
| 6 | 66-9456 | TUBE - epr to coil | 1 | |
| 7 | 66-874 | FITTING - flare | 2 | |
| 8 | 66-5136 | VALVE - epr (see 129C13) | 1 | |
| 9 | 66-9455 | TUBE - suction to epr | 1 | |
| 10 | 55-6020 | CLAMP - suction tube | 2 | |
| 55-3344 | SCREW - clamp | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 11 | 66-9453 | TUBE - liquid to expansion valve | 1 | |
| 12 | 66-4139 | FITTING - saddle | 1 | |
| 13 | 44-6349 | SWITCH - condenser fan speed (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 14 | 91-758 | CLAMP - tube | 5 | |
| 55-3121 | SCREW - clamp | 5 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-4953 | NUT | 5 | ||
| 15 | 66-9452 | TUBE - tee to swage | 1 | |
| 16 | 55-904 | TEE | 1 | |
| 17 | 91-9289 | BRACKET - tube support | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 18 | 66-9449 | TUBE - valve to tee | 1 | |
| 19 | 66-9450 | VALVE - ball | 1 | |
| 20 | 66-9451 | TUBE - adapter to valve | 1 | |
| 21 | 55-9699 | ADAPTER - bulkhead | 1 | |
| 55-6812 | NUT - adapter | 1 | ||
| 55-7199 | LOCKWASHER - adapter | 1 | ||
| 22 | 91-9290 | BRACKET - adapter | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 23 | 66-9446 | TUBE - receiver to valve | 1 | |
| 24 | 66-7899 | VALVE - shutoff | 2 | |
| 55-2963 | SCREW - valve | 2 | ||
| 55-2985 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 25 | 66-9445 | TUBE - valve to shoulder | 1 | |
| 26 | 55-6396 | NUT - shoulder | 1 | |
| 27 | 55-6356 | SHOULDER | 1 | |
| 28 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 29 | 55-2192 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 30 | 55-6837 | SHOULDER | 1 | |
| 31 | 55-6838 | NUT - shoulder | 1 | |
| 32 | 66-9447 | TUBE - valve to shoulder | 1 | |
| 33 | 66-9448 | TUBE - valve to indicator | 1 | |
| 34 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 35 | 66-7546 | TUBE - indicator to tee | 1 | |
| 36 | 67-1191 | TANK - receiver (see 151C8) | 1 | |
| 37 | 66-9444 | TUBE - condenser to receiver | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 38 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 39 | 66-9443 | TUBE - discharge | 1 | |
| 40 | 66-6840 | ADAPTER - bulkhead | 1 | |
| 55-5740 | NUT - bulkhead | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 41 | 66-9459 | TUBE - suction | 1 | |
| 42 | 55-7381 | ADAPTER - bulkhead | 1 | |
| 55-5996 | NUT - bulkhead | 1 | ||
| 55-5999 | LOCKWASHER | 1 | ||
| 43 | 91-9288 | BRACKET - receiver tank (bottom) | 1 | |
| 44 | 91-9287 | BRACKET - receiver tank (top) | 1 |
