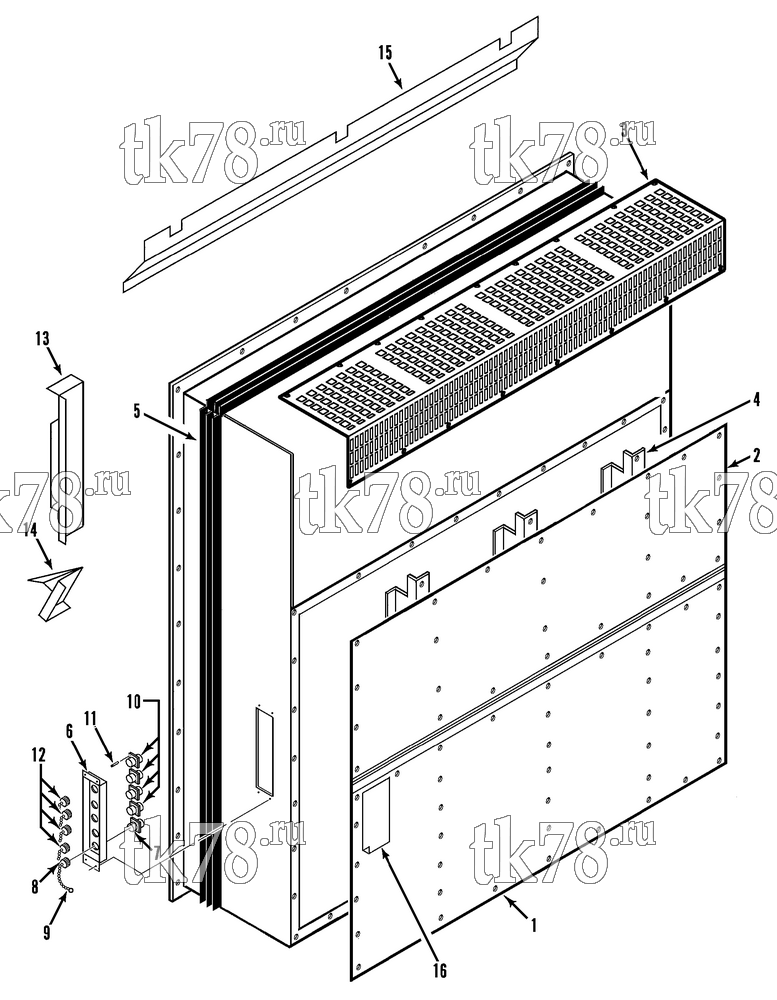

Установкa Thermo King схема EVAPORATOR PANELS – 151A13
Обновление от: 3/19/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 509-557 | PLATE - rear (bottom) | 1 | |
| 55-2264 | RIVET - plate | 36 | ||
| 2 | 98-5203 | PLATE - rear (top) | 1 | |
| 55-8937 | SCREW - plate | 26 | ||
| 3 | 98-5200 | GRILLE - evaporator (CRR 40) | 1 | |
| 509-1766 | GRILLE - evaporator (CRR 20) | 1 | ||
| 55-2264 | RIVET - grille | 17 | ||
| 4 | 91-8097 | CHANNEL - Z | 3 | |
| 55-9055 | RIVET - channel | 21 | ||
| 5 | 33-2983 | GASKET - unit | 1 | |
| 6 | 91-8760 | PANEL - USDA receptacle | 1 | |
| 55-9055 | RIVET - panel | 4 | ||
| 7 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 55-8382 | SCREW - receptacle | 4 | ||
| 55-8410 | FLATWASHER | 8 | ||
| 55-7864 | NUT | 4 | ||
| 8 | 41-2406 | CAP - dust | 1 | |
| 9 | 99-3685 | CHAIN - cap | 5 | |
| 10 | 41-2541 | RECEPTACLE (3-pin) | 4 | |
| 55-2262 | RIVET - receptacle | 16 | ||
| 55-8410 | FLATWASHER | 16 | ||
| 11 | 44-9602 | PIN - sealing | 5 | |
| 12 | 41-890 | CAP - dust | 4 | |
| 13 | 91-8136 | CHANNEL - air | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 55-8891 | SCREW - channel | 6 | ||
| 14 | 91-8141 | INLET - fresh air | 1 | |
| 55-2270 | RIVET - inlet | 10 | ||
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 15 | 91-8135 | CHANNEL - fresh air (CRR 40) | 1 | |
| 509-1764 | CHANNEL - fresh air (CRR 20) | 1 | ||
| 55-2270 | RIVET - channel | 8 | ||
| 16 | 91-8734 | NAMEPLATE - USDA Connections | 1 |
