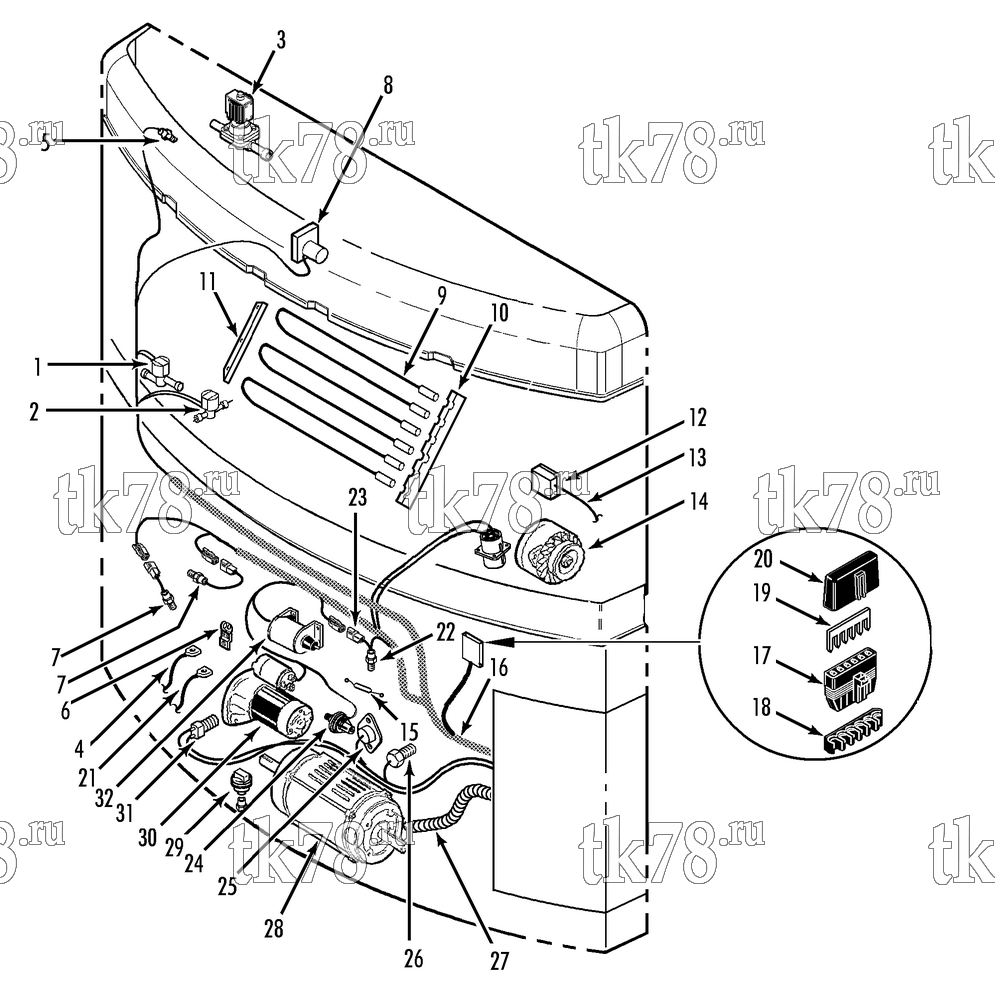

Установкa Thermo King схема ELECTRICAL COMPONENTS (SL-300 50 SR) – 150A7
Обновление от: 6/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-8786 | NUT | 1 | ||
| 2 | 66-5374 | VALVE - solenoid (see 138A7) | 1 | |
| 3 | 66-7789 | VALVE - modulation (see 115B8) | 1 | |
| 44-5175 | COIL | 1 | ||
| 4 | 44-9551 | CABLE - battery (negative) | 1 | |
| 5 | 44-6534 | SENSOR - coolant level | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 6 | 44-8244 | FUSE LINK | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 55-3000 | SCREW - link | 2 | ||
| 55-3006 | WASHER - insulating | 4 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 91-8971 | BRACKET - link | 1 | ||
| 55-5022 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 7 | 41-4523 | SWITCH - hpco | 2 | |
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 8 | 41-1990 | MOTOR - damper (w/ Deutsch connectors, see 100D8) | 1 | |
| 9 | 45-1451 | HEATER | 3 | |
| 10 | 91-4842 | BRACKET - heater support | 1 | |
| 11 | 91-2982 | BRACKET - heater | 2 | |
| 55-5639 | SCREW - bracket | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 12 | 44-7354 | BOX - junction | 1 | |
| 55-7036 | SCREW - box | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7040 | INSERT - threaded | 2 | ||
| 13 | 44-9059 | CABLE - heater | 1 | |
| 14 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 15 | 44-7663 | DIODE - assembly | 1 | |
| 16 | 41-2703 | HARNESS - main | 1 | |
| 17 | 41-1789 | CONNECTOR - tower (6-pin) | 3 | |
| 18 | 41-1790 | LOCK - secondary (6-pin connector) | 3 | |
| 19 | 41-2651 | BUSBAR | 3 | |
| 20 | 41-1787 | COVER - connector | 3 | |
| 21 | 41-1160 | CABLE - battery (positive) | 1 | |
| 44-7051 | BOOT - battery cable cover | 2 | ||
| 22 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя, Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 9 650 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя, Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 920 ₽ |
|
| 23 | 41-1538 | HARNESS - water temperature switch | 1 | |
| 24 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 25 | 44-6018 | THERMOSTAT - block temperature | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-4768 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 91-3904 | PLATE - block temperature sensor | 1 | ||
| 55-5022 | SCREW - plate | 1 | ||
| 55-3994 | WASHER - special | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 26 | 44-9588 | BOLT - coolant temperature | 1 | |
| 27 | 44-9056 | CONDUIT - harness | 1 | |
| 55-3676 | CONNECTOR - conduit | 1 | ||
| 28 | 104-735 | MOTOR (230-460/3/50-60, see 149A13) | 1 | |
| 99-4987 | COVER - motor (harness) | 1 | ||
| 55-5760 | SCREW - cover | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 29 | 41-402 | SWITCH - oil level (see 139A14) | 1 | |
|
41-402 OEM | Датчик уровня масла | 10 090 ₽ |
|
|
10-41-402 | Датчик уровня масла | 6 190 ₽ |
|
| 30 | 45-2323 | STARTER | 1 | |
| 41-2158 | SOLENOID - starter | 1 | ||
|
10-41-2158 | Соленоид стартера, Yanmar 482/486 | 9 300 ₽ |
|
| 31 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 44-7620 | BOOT - rpm sensor | 1 | ||
| 32 | 44-9181 | SOLENOID - throttle (see 146G10) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
