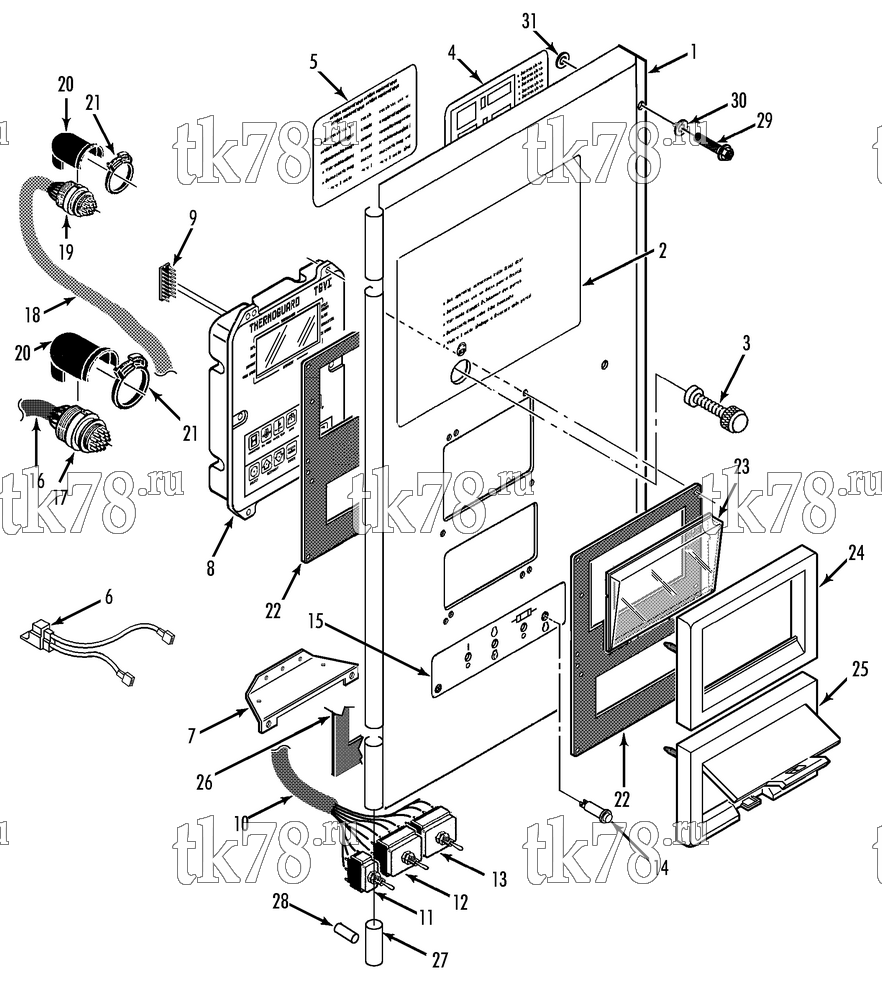

Установкa Thermo King схема CONTROL BOX COVER ASSEMBLY (TG VI) – 150A3
Обновление от: 11/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5405 | COVER - control box | 1 | |
| 2 | 91-8271 | NAMEPLATE - See Operating Instructions | 1 | |
| 3 | 91-3055 | BUTTON - reset (220/230V) | 1 | |
| 91-8270 | BUTTON - reset (380V) | 1 | ||
| 4 | 91-6640 | NAMEPLATE - relay board | 1 | |
| 5 | 91-8721 | NAMEPLATE - factory settings | 1 | |
| 6 | 44-9301 | HARNESS - phase detection | 1 | |
| 7 | 91-7140 | BRACKET - harness | 1 | |
| 8 | 45-1768 | CONTROLLER - microprocessor (std) | 1 | |
| 845-1768 | CONTROLLER - microprocessor (reman) | 1 | ||
| 91-8113 | FACEPLATE | 1 | ||
| 45-2180 | CONTROLLER - microprocessor (Cycle Sentry) | 1 | ||
| 45-1767 OEM | Контроллер TG VI, SL/SLe | по запросу |
|
|
| 91-8114 | FACEPLATE | 1 | ||
| 10-91-8114 | Панель кнопок, SL-100e/200e | 4 250 ₽ |
|
|
| 45-2181 | CONTROLLER - microprocessor (Cycle Sentry & modulation) | 1 | ||
| 91-8115 | FACEPLATE | 1 | ||
| 55-3623 | SCREW - controller | 8 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 9 | 40-931 | KIT - eprom chip | 1 | |
| 10 | 41-2017 | HARNESS - switch (50s, std) | 1 | |
| 41-2019 | HARNESS - switch (50s, Cycle Sentry or modulation) | 1 | ||
| 41-2015 | HARNESS - switch (30s) | 1 | ||
| 41-2018 | HARNESS - switch (30s, Cycle Sentry) | 1 | ||
| 11 | 44-7929 | SWITCH - on/off (Cycle Sentry) | 1 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 41-2020 | RESISTOR (1 Kohm) | 1 | ||
| 12 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 13 | 44-7930 | SWITCH - diesel/electric | 1 | |
| 14 | 44-9085 | LIGHT - indicator (amber) | 1 | |
| 15 | 91-7922 | NAMEPLATE - switch panel (50, std) | 1 | |
| 91-7923 | NAMEPLATE - switch panel (50, Cycle Sentry) | 1 | ||
| 91-7920 | NAMEPLATE - switch panel (30, std) | 1 | ||
| 91-7921 | NAMEPLATE - switch panel (30s, Cycle Sentry) | 1 | ||
| 16 | 41-1917 | HARNESS - sensor | 1 | |
| 17 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 18 | 41-2014 | HARNESS - interconnect | 1 | |
| 19 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 20 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 21 | 55-7618 | CLAMP (plastic) | 2 | |
| 91-7143 | BEZEL - TG VI (complete) | 1 | ||
| 22 | 33-2797 | GASKET - bezel | 2 | |
| 23 | 91-7142 | WINDOW - bezel | 1 | |
| 24 | 91-7141 | BEZEL (upper) | 1 | |
| 25 | 91-7926 | BEZEL (lower) | 1 | |
| 26 | 33-2973 | GASKET - control box | 1 | |
| 27 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 28 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 29 | 55-6352 | SCREW - cover | 3 | |
| 30 | 55-3028 | WASHER - sealing | 3 | |
| 31 | 55-6772 | WASHER - split | 3 |
