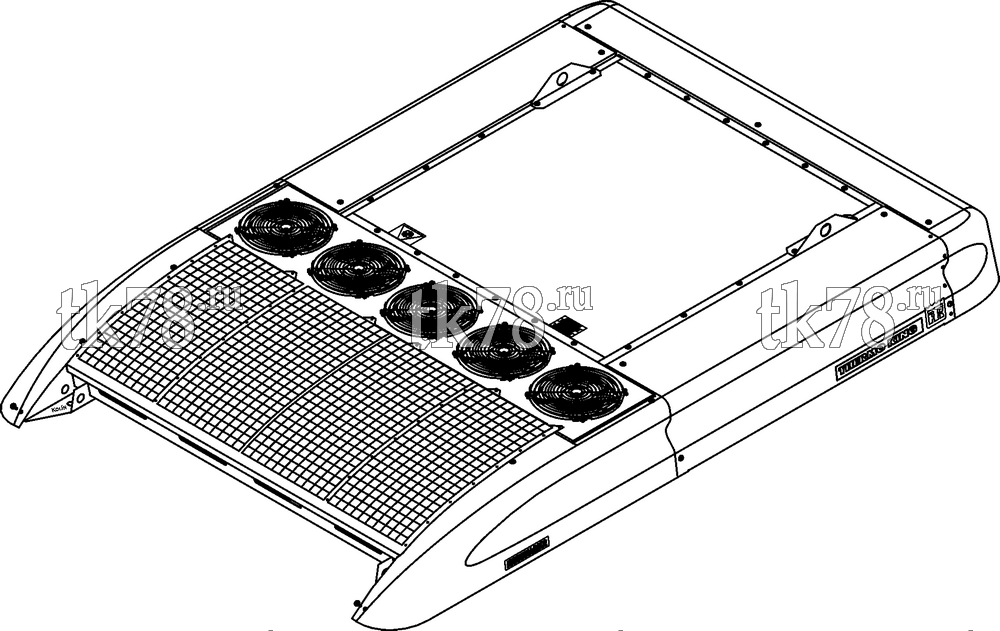

Установкa Thermo King схема CITI-RT N AP REFERENCE SHEET – 14U85

Обновление от: 2/8/10

Каталог запчастей для Thermo King CITI-RT N AP REFERENCE SHEET
№TK #ОписаниеКол-во
Цена
900928System - Citi RT N AP 1000 R134a11/09
900929System - Citi RT N AP 1000 R407c10/09
900930System - Citi RT N AP 1000 R407c10/09
900931System - Citi RT N AP 1004 R134a11/09
900932System - Citi RT N AP 1004 R407c10/09
900933System - Citi RT N AP 1004 R407c10/09
900989System - Citi RT N AP 1000 R134a11/09
006532Tube Heating System With Valve10/09
006533Tube Heating System Without Valve10/09
006547ClimaAIRE II Control System 1000, 1004 (R407c) - Control Panel, Brush Fans, Brush Blowers10/09
006812ClimaAIRE II Control System 1000, 1004 (R407c) - Control Panel, EBM Brushless Fans & Blowers10/09
007075Fresh Air Damper (Electric) for Citi RT10/09
008304Harness CanAIRE From Unit To Compressor 14m10/09
008517CITI RT-N AP 1000 R134a Radius 10-18M11/09
008518CITI RT-N AP 1004 R134a Radius 10-18M11/09
008519CITI RT-N AP 1000 R134a Radius 7.5M11/09
008520Citi RT-N AP 1000 R407c Radius 10-18M10/09
008521Citi RT-N AP 1004 R407c Radius 10-18M10/09
008523Citi RT-N AP 1000 R407c Radius 7.5M10/09
008524Citi RT-N AP 1004 R407c Radius 7.5M10/09
008724CanAIRE Control system Kit10/09
099058Kit - 130 amp Fuse10/09
099279Eprom w/o Diagnostic for IntelligAIRE I10/09
099280Eprom w/ Diagnostic for IntelligAIRE I10/09
099309No Fresh Air Damper10/09
099603IntelligAIRE I Control System (for unit 1000, 1004 - R134a)11/09
099606ClimaAIRE I Control System10/09
099607IntelligAIRE I Control System (for unit 1000, 1004 - R407c)10/09
099721Kit - Bottom Insulation - Citi RT, Coach RT10/09
700127Harness Kit 10 m Water Valve10/09
700128Harness Kit 20 m Water Valve10/09
700129Water Valve Kit10/09
700136Kit - ClimaAIRE II with 2 m Harness - STA10/09
700137Harness Boost Pump Kit 16 m10/09
700383Air Filter Kit10/09
700389Kit - Air Filter Grille10/09
700446SmartAIRE W/ 18.3M Harness10/09
700459SmartAIRE W/ 12 M Harness10/09
700461Harness - ClimaAIRE (Unit to Compressor - 14 m length)10/09
700500Fitting Kit10/09
700565ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18 m length)10/09
700590Kit - Tube Heating Valve10/09
700606Kit - Battery Cables, 5 m, Red & Black10/09
700627Compressor X430-HPC R134a Pulley 2B/2A11/09
700628Compressor X430-HPC R407c , pulley 2B/2A10/09
700689Kit - Hose, Citi RT10/09
700702Compressor - Bitzer 4NFCY, 24V11/09
700736Kit - Hose, Citi RT10/09
700835Compressor X430-HPC R407c, Pulley 9K/6K10/09
700890Alternator Capacitance Wire10/09
700891Alternator Accessory Kit10/09
700909Kit Insulation10/09
700910Kit Tube Connection10/09
700932Drier And Controller Kit10/09
700947Kit Install Bracket10/09
700969ClimaAIRE II & Harness10/09
700970Driver Panel Extension Harness10/09
701008Citi RT-N AP 1000 R407c10/09
701009Kit Harness to Compressor10/09
701027Harness - ClimaAIRE II (12 m)10/09
701028Harness - Citi RT-N 1000/100410/09
701037Kit - 150 amp Fuse10/09
701038Driver Panel On/Off Kit w/ Harness10/09
701078ClimaAIRE Display Panel Harness 1.5M11/09
701142SmartAIRE Control System10/09
701175Hose Kit10/09
701192Compressor X430-HPC R134a w/ 2B/2A Pulley2/10
701194Compressor X430-HPC R407c w/ 2B/2A Pulley2/10
701253Alternator w/ 8 groove pulley10/09
701259Fan and Blower Mounting Kit10/09
701402High/Low Pressure Tube on Left Side10/09
701435Citi RT-N Cover Assembly 18 m10/09
701442Tube Heating System With Valve10/09
701487Controller Mounted Within Return Air Opening10/09
701514EPR Valve Option10/09
701515EPR Valve Option10/09
701550Relay For Screw Compressor10/09
701605Compressor S391 R407c w/ 9K/6K Pulley10/09
701604Compressor S391 R134a w/ 6K/9K Pulley11/09
701725Left Side Tube Kit10/09
701726Drier In Evaporator, Wiring Right10/09
701729Cover Kit 10-18 m10/09
701730Cover Kit 7.5 m10/09
701732Drier In Evaporator, Wiring Right10/09
701734Driver Panel And Harness 12 m10/09
701735Relay For Screw Compressor10/09
701736Compressor Harness10/09
701744Filter Drier in Air Return10/09
702024ClimaAIRE I & SmartAIRE Control System11/09
702025ClimaAIRE I & SmartAIRE Control System10/09
702026ClimaAIRE I & SmartAIRE Control System11/09
702027ClimaAIRE I & SmartAIRE Control System10/09
702029ClimaAIRE II Control System11/09
702030ClimaAIRE II Control System10/09
709797Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in10/09
715245Compressor Muffler Kit11/09
718460Kit - Harness, 14 m to Compressor10/09
718660Kit - Harness, 8.6 m to Compressor10/09
718665Boost Pump Kit10/09
718672Kit - Hose, Citi (SS #16, #20 - 0.8 m length & Flange Fitting (unit), ORS Fitting (Comp)10/09
718884Compressor Harness 10m11/09
719006Harness Boost Pump Kit 14 m10/09
719007Harness Boost Pump Kit 9 m10/09
719008Harness Boost Pump Kit 7.6 m10/09
719135ClimaAIRE II DP with Display w/Harness (Unit to Driver Panel - 18.3 m length)10/09
719302Harness - ClimaAIRE (Unit to Compressor - 8.3 m length)10/09
719305Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE10/09
719343Compressor Harness 10m11/09
719360ClimaAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length)10/09
719361IntelligAIRE I DP w/Harness (Unit to Driver Panel - 18.3 m length)10/09
720028Harness - ClimaAIRE (Unit to Compressor - 14 m length)10/09
720171Kit - Muffler, without Hose10/09
720320Adapter Kit For Boost Pump10/09
720428Compressor S391 R134a11/09
720429Compressor S391 R407c10/09
800149Kit - Installation, 1000/100410/09
880091Kit - Installation, 1000/1004 (for unit with TK X430 Compressor)10/09
