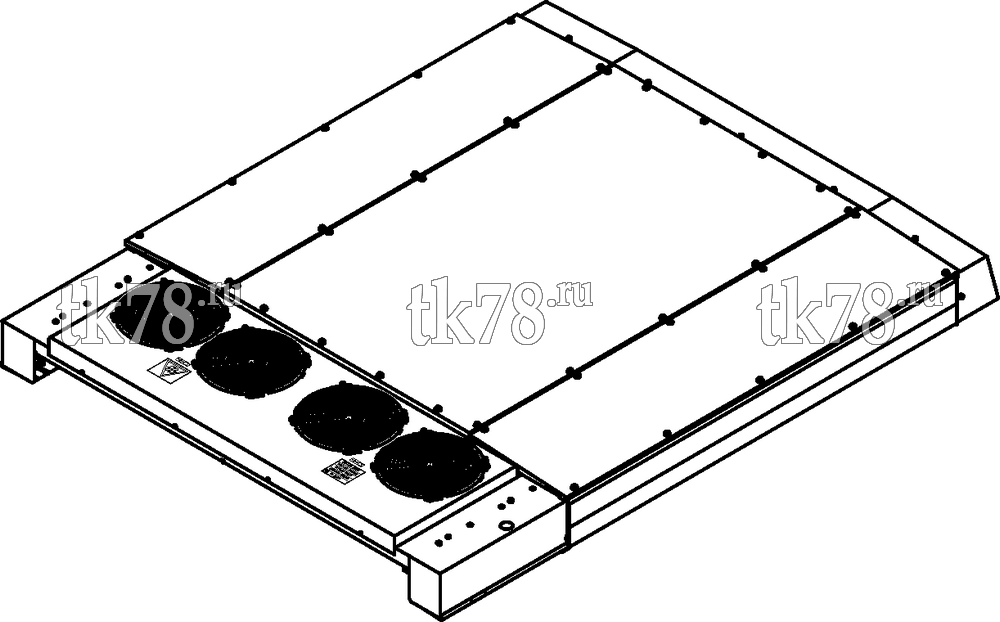

Установкa Thermo King схема X900 BOX REFERENCE SHEET – 14U39
Обновление от: 8/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901199 | System - X900 1000 BOX | 08 09 | ||
| 901201 | System - X900 1004 BOX | 08 09 | ||
| 008695 | X900 1004 BOX | 04 13 | ||
| 008670 | X900 1000 BOX | 04 13 | ||
| 008671 | Option - Electro X900 STD 24V CANAIRE | 03 11 | ||
| 008672 | Fresh Air Damper X900 (electric) | 08 09 | ||
| 008673 | No Fresh Air Damper | 08 09 | ||
| 008675 | Fresh Air Deflector X900 | 08 09 | ||
| 008696 | Kit - Installation - Insulation X900 | 03 11 | ||
| 008729 | Air Duct Plates Distributor X900 | 08 09 | ||
| 008730 | Kit - Add Air Duct Plates Distribution Box X900 | 05 13 | ||
| 008892 | Fresh Air - Baffled X900 1000 | 03 11 | ||
| 013002 | Option - Electro X900 24V CANAIRE | 03 11 | ||
| 013543 | Option - Control Panel X900 on the left Side | 05 13 | ||
| 013763 | Option - Electro X900 24V PLAXTON CANAIRE | 05 13 | ||
| 013827 | Option - Electro X900 24V CANAIRE PLAXTON | 05 13 | ||
| 013839 | Option - Evaporator Filters X900 | 05 13 | ||
| 700009 | Kit - Harness Water Valve, 6m | 08 09 | ||
| 700043 | Kit - Compressor Bock FKX 40 470 | 05 13 | ||
| 700044 | Kit - Compressor Bock FKX 40 470 | 05 13 | ||
| 700045 | Kit - Compressor Bock FKX 40 470 | 05 13 | ||
| 700129 | Kit - Water Valve 2-way Servomotor | 08 09 | ||
| 700130 | Kit - Water Valve 3-way Servomotor | 08 09 | ||
| 700257 | Kit - T-Hose Fitting | 03 11 | ||
| 700296 | Kit - Floor Temperature Sensor for ClimaAIRE II, 9m | 08 09 | ||
| 700470 | Kit - Compressor S616 No Clutch | 08 09 | ||
| 700474 | Kit - Adapters Compressor S616 (#16, #20) | 08 09 | ||
| 700544 | Kit - Temperature Sensor for ClimaAIRE | 08 09 | ||
| 700574 | Kit - Compressor S391-HPC, R134A, Pulley 2B 2A | 08 09 | ||
| 701135 | Kit - Compressor X430-2B, 8.03 Dia | 08 09 | ||
| 701339 | Kit - Compressor Bock FKX 40 560 | 05 13 | ||
| 701823 | Kit - ClimaAIRE I D CAN, 9m | 08 09 | ||
| 701824 | Kit - ClimaAIRE I D CAN, 18m | 08 09 | ||
| 701825 | Kit - Harness Power | 08 09 | ||
| 701826 | Kit - Harness Compressor, 8m | 08 09 | ||
| 701827 | Kit - Harness Compressor, 14m | 08 09 | ||
| 701828 | Kit - Harness Water Valve, 10m | 08 09 | ||
| 701829 | Kit - Harness Water Valve, 20m | 08 09 | ||
| 701830 | Kit - CAN Terminator | 08 09 | ||
| 701831 | Kit - Harness Excitation CANAIRE, 14m | 08 09 | ||
| 701833 | Kit - Harness Unit Boost Pump CAN, 14m | 08 09 | ||
| 701843 | Kit - Harness Compressor, 20m | 08 09 | ||
| 701844 | Kit - Harness CAN, 9m | 08 09 | ||
| 701845 | Kit - Harness CAN, 18m | 08 09 | ||
| 701846 | Kit - Harness Floor Module, 2m | 08 09 | ||
| 701847 | Kit - Harness Forced Air Blower, 2m | 08 09 | ||
| 701848 | Kit - Harness Extension Forced Air, 10m | 08 09 | ||
| 701849 | Kit - Harness Extension Forced Air, 20m | 08 09 | ||
| 701850 | Kit - Harness Floor Module, 5m | 08 09 | ||
| 701851 | Kit - Harness Forced Air Blower, 5m | 08 09 | ||
| 701857 | Kit - Harness Excitation CANAIRE, 20m | 08 09 | ||
| 701869 | Kit - Harness Floor - Pump, 7m | 08 09 | ||
| 701870 | Kit - Harness Floor Preheater, 7m | 08 09 | ||
| 701894 | Kit - Return Air X900 Central | 08 09 | ||
| 701895 | Kit - Return Air Side | 08 09 | ||
| 702187 | Kit - Harness CAN, 15m | 05 13 | ||
| 702192 | Kit - Compressor Bock FKX 40 470K Clutch LA16.0151Y | 05 13 | ||
| 702194 | Kit - Compressor Bock FKX 40 470K Clutch LA16.0228Y | 05 13 | ||
| 702195 | Kit - Compressor Bock FKX 40 560K Clutch LA16.0151Y | 05 13 | ||
| 702196 | Kit - Compressor Bock FKX 40 560K Clutch LA16.0205Y | 05 13 | ||
| 702197 | Kit - Compressor Bock FKX 40 560K Clutch LA16.0228Y | 05 13 | ||
| 702251 | Kit - Compressor Bock FKX 40 560 24V Pulley 2B Dia 203mm | 05 13 | ||
| 702353 | Kit - Grille Return Air Complete X900 Central Return Air | 03 11 | ||
| 702354 | Kit - Grille Return Air Complete X900 Side Return Air | 03 11 | ||
| 702619 | Kit - CAN Terminator | 05 13 | ||
| 702735 | Kit - Crate Dry X900 | 05 13 | ||
| 702844 | Kit - Harness Compressor S391 S616 CANAIRE, 8m | 05 13 | ||
| 702845 | Kit - Harness Compressor S391 S616 CANAIRE, 14m | 05 13 | ||
| 702846 | Kit - Harness Compressor S391 S616 CANAIRE, 20m | 05 13 | ||
| 702860 | Kit - Multipack Crate 5 pcs X900 | 05 13 | ||
| 703330 | Kit - Multipack Crate 4 pcs X900 | 05 13 | ||
| 703331 | Kit - Multipack Crate 3 pcs X900 | 05 13 | ||
| 703462 | Kit - CANAIRE Driver Panel w Harness, 5m | 05 13 | ||
| 703465 | Kit - CANAIRE Driver Panel w Harness, 9m | 05 13 | ||
| 703591 | Kit - CANAIRE Driver Panel w Harness, 14m | 05 13 | ||
| 703615 | Kit - CANAIRE Driver Panel w Harness, 18m | 05 13 | ||
| 715245 | Kit - Muffler Compressor | 08 09 | ||
| 718220 | Kit - Compressor X430, 24V, Pulley 2B 2A, 9"" | 08 09 | ||
| 719004 | Kit - Water Boost Pump | 08 09 | ||
| 719005 | Kit - Water Boost Pump | 08 09 | ||
| 719305 | Kit - Alternator ClimaAIRE 24V 150A | 08 09 | ||
| 719306 | Kit - Alternator ClimaAIRE 12V 125A | 08 09 | ||
| 719842 | Kit - Harness Water Valve, 5m | 08 09 | ||
| 720084 | Kit - Harness Water Valve, 1m | 08 09 | ||
| 720208 | Kit - Fitting - Compressor X430 Side (Suct 0 deg, Disch 0 deg) | 08 09 | ||
| 720209 | Kit - Fitting - Compressor X430 Side (Suct 45 deg, Disch 45 deg) | 08 09 | ||
| 720210 | Kit - Fitting - Compressor X430 Side (Suct 90 deg, Disch 90 deg) | 08 09 | ||
| 720211 | Kit - Fitting - Refrigeration Unit Side (Suct 0 deg, Disch 0 deg) | 08 09 | ||
| 720212 | Kit - Fitting - Refrigeration Unit Side (Suct 90 deg, Disch 90 deg) | 08 09 | ||
| 720213 | Kit - Fitting - Refrigeration Unit Side (Suct 45 deg, Disch 45 deg) | 08 09 | ||
| 720214 | Kit - Fitting - Refrigeration Unit Side (Suct 90 deg, Disch 0 deg) | 08 09 | ||
| 720215 | Kit - Refrigerant Hose (#16, #20, 1m - without Fittings) | 08 09 | ||
| 720216 | Kit - Refrigerant Hose (#16, #20, 6m - without Fittings) | 08 09 | ||
| 720217 | Kit - Refrigerant Hose (#16 ,#20, 7m - without Fittings) | 08 09 | ||
| 720218 | Kit - Refrigerant Hose (#16, #20, 8m - without Fittings) | 08 09 | ||
| 720219 | Kit - Refrigerant Hose (#16, #20, 9m - without Fittings) | 08 09 | ||
| 720220 | Kit - Refrigerant Hose (#16, #20, 10m - without Fittings) | 08 09 | ||
| 720221 | Kit - Refrigerant Hose (#16, #20, 12m - without Fittings) | 08 09 | ||
| 720222 | Kit - Refrigerant Hose (#16, #20, 14m - without Fittings) | 08 09 | ||
| 720223 | Kit - Refrigerant Hose (#16, #20, 16m - without Fittings) | 08 09 | ||
| 720224 | Kit - Refrigerant Hose (#16, #20, 18m - without Fittings) | 08 09 | ||
| 720365 | Kit - Fitting - Refrigeration Unit Side (Suct 0 deg, Disch 90 deg) | 08 09 | ||
| 720366 | Kit - Fitting - Refrigeration Unit Side (Suct 90 deg, Disch 45 deg) | 08 09 | ||
| 720367 | Kit - Fitting - Refrigeration Unit Side (Suct 45 deg, Disch 90 deg) | 08 09 | ||
| 720395 | Kit - Fitting for Tube Installation | 08 09 | ||
| 720587 | Kit - Compressor X430-HPC, 24V, Pulley 2B 2A, 8.03 | 08 09 | ||
| 720590 | Kit - Compressor X430-HPC, 24V, 12-K-W 2.28 | 08 09 | ||
| 720702 | Kit - Compressor S616 | 08 09 | ||
| 800355 | Kit - Drain Water Hose, 20m | 03 11 | ||
| 800356 | Kit - Drain Water Hose, 40m | 03 11 | ||
| 800388 | Kit - Installation | 08 09 | ||
| 880110 | Kit - Ports for Compressor X430 | 08 09 | ||
| 880153 | Kit - Adapters Compressor (#20,#24) | 08 09 | ||
| 008672 | Fresh Air Damper X900 (electric) | 08 09 | ||
| 008673 | No Fresh Air Damper | 08 09 | ||
| 008675 | Fresh Air Deflector X900 | 08 09 | ||
| 008696 | Kit - Installation - Insulation X900 | 03 11 | ||
| 008729 | Air Duct Plates Distributor X900 | 08 09 | ||
| 008730 | Kit - Add Air Duct Plates Distribution Box X900 | 05 13 | ||
| 008892 | Fresh Air - Baffled X900 1000 | 03 11 |
