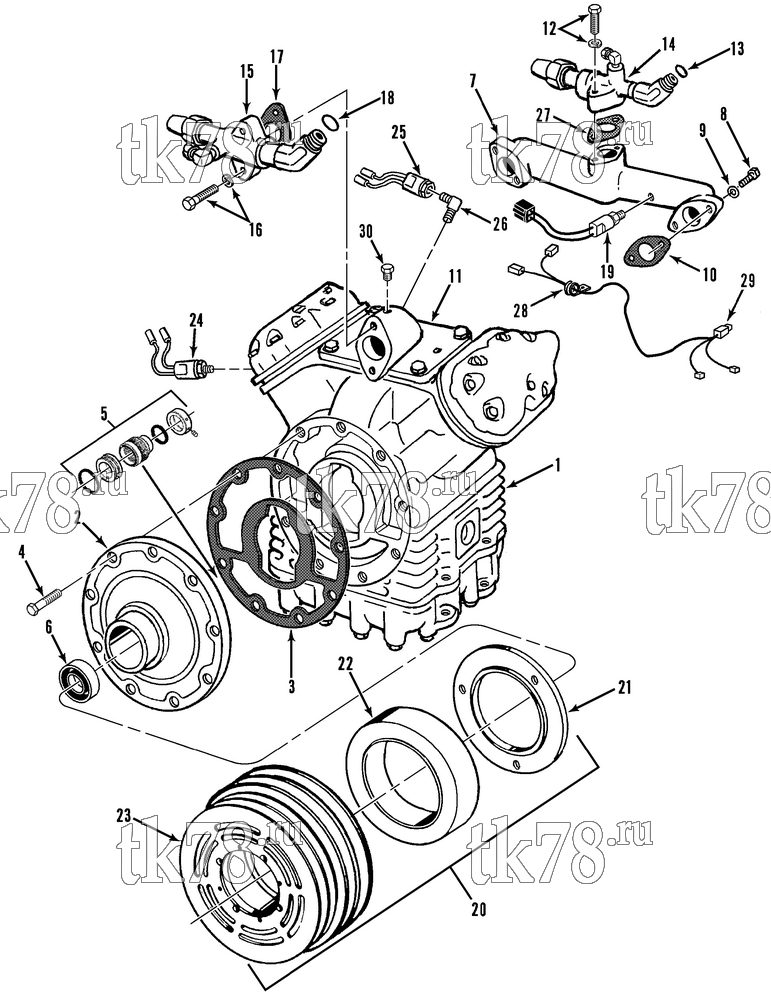

Установкa Thermo King схема COMPRESSOR GROUP (9150C89G08, KIT 718073) – 149F14
Обновление от: 12/17/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 (see 231A2) | 1 | |
| 2 | 22-790 | PLATE - drive bearing (use w/ stainless steel bellows) | 1 | |
| 22-754 | PLATE - drive bearing (use w/ neoprene bellows) | 1 | ||
| 3 | 33-2513 | GASKET - plate | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 4 | 55-2381 | SCREW - plate | 9 | |
| 55-896 | FLATWASHER | 9 | ||
| 5 | 22-751 | SEAL - crankshaft (stainless steel bellows) | 1 | |
| 22-778 | SEAL - crankshaft (neoprene bellows) | 1 | ||
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
| 6 | 33-2120 | SEAL - oil | 1 | |
|
10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 7 | 22-660 | MANIFOLD - discharge | 1 | |
|
10-22-660 | Коллектор компрессора X430 | 29 550 ₽ |
|
| 8 | 55-183 | SCREW - manifold | 4 | |
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 9 | 55-6804 | WASHER - sealing | 4 | |
| 10 | 33-2805 | GASKET - manifold | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 11 | 66-1896 | ADAPTER - suction valve | 1 | |
| 33-1221 | O-RING - adapter to compressor | 1 | ||
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 12 | 55-6776 | SCREW - discharge valve | 2 | |
| 55-6804 | FLATWASHER | 2 | ||
| 13 | 33-1785 | O-RING | 1 | |
| 14 | 66-4655 | VALVE - discharge (assembly, see 120F1) | 1 | |
| 15 | 66-4701 | VALVE - suction (assembly, see 121A6) | 1 | |
| 16 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 17 | 33-2541 | GASKET - suction valve | 1 | |
| 18 | 33-1777 | O-RING | 1 | |
| 19 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 41-5394 | SENSOR - only | 1 | ||
| 20 | NSS | CLUTCH - assembly | 1 | |
| 107-150 | KIT - clutch drive repair (see 153E7) | 1 | ||
| 21 | 77-1083 | PLATE | 1 | |
| 22 | 45-271 | FIELD - clutch (24VDC) | 1 | |
| 23 | 77-2148 | PULLEY (2-5V groove, 9.0 in od) | 1 | |
| 24 | 41-2236 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 44-6265 | SWITCH - only | 1 | ||
| 25 | 41-2235 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 26 | 55-308 | ELBOW | 1 | |
| 33-768 | GASKET - flare | 1 | ||
| 27 | 33-2805 | GASKET - valve | 1 | |
|
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 28 | 55-5261 | CLAMP - harness | 3 | |
| 29 | 41-2358 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 30 | 55-433 | PLUG - pipe | 1 |
