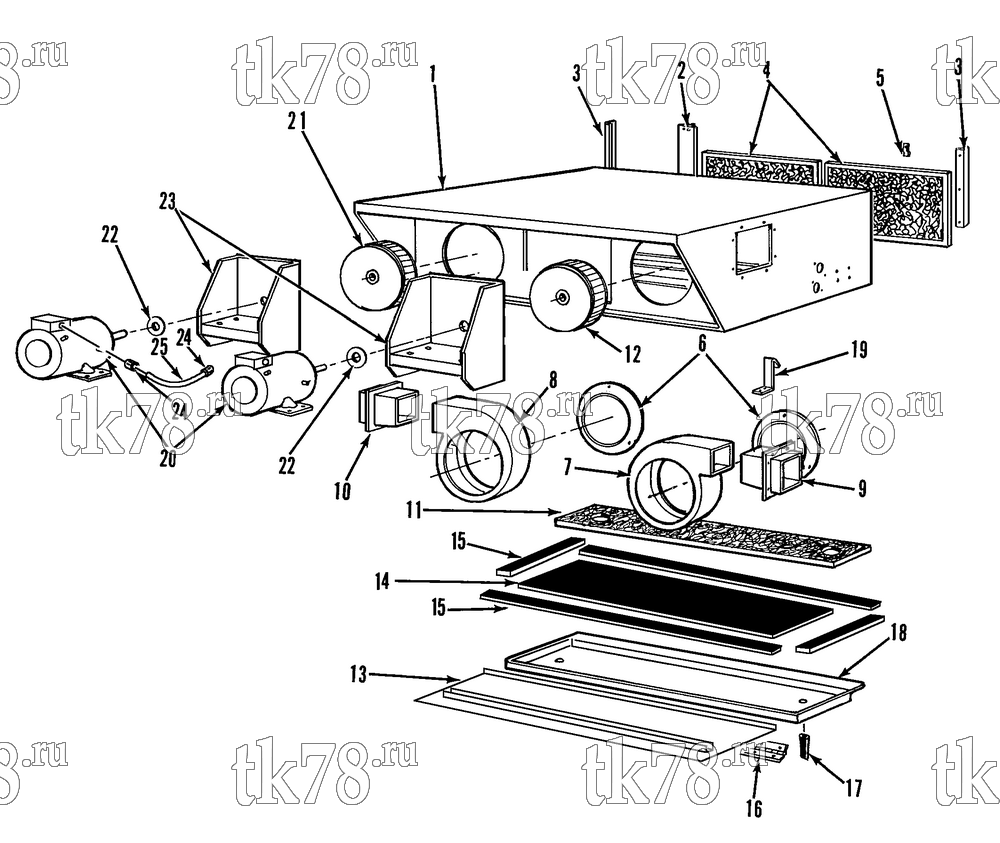

Установкa Thermo King схема FRAME MOTOR & BLOWER GROUP – 148D10
Обновление от: 7/1/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5366 | FRAME | 1 | |
| 91-8953 | PLATE - washer (unit mounting) | 6 | ||
| 2 | 91-8945 | CHANNEL - air filter | 1 | |
| 91-284 | BRACKET - safety latch catch | 1 | ||
| 55-1587 | SCREW - channel & bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 3 | 91-285 | ANGLE - air filter (side) | 2 | |
| 55-3035 | RIVET - angle | 12 | ||
| 4 | 11-6471 | FILTER - air | 2 | |
| 5 | 55-4422 | FASTENER - snap (filter) | 4 | |
| 55-3136 | RIVET - fastener | 4 | ||
| 6 | 77-1834 | RING - inlet | 2 | |
| 55-5638 | SCREW - ring | 10 | ||
| 7 | 98-5369 | HOUSING - blower (curbside) | 1 | |
| 8 | 98-5368 | HOUSING - blower (roadside) | 1 | |
| 55-2979 | SCREW - housing | 6 | ||
| 55-2086 | FLATWASHER | 18 | ||
| 55-4953 | NUT (hexstop) | 6 | ||
| 9 | 91-287 | DUCT - air (curbside) | 1 | |
| 10 | 91-286 | DUCT - air (roadside) | 1 | |
| 55-3561 | SCREW - air duct | 12 | ||
| 11 | 91-288 | INSULATION - access door | 1 | |
| 12 | 77-2518 | WHEEL - blower (cw, front) | 1 | |
| 13 | 98-5371 | PANEL - bottom | 1 | |
| 55-5639 | SCREW - panel | 20 | ||
| 14 | 91-8952 | INSULATION - panel | 1 | |
| 15 | 91-8951 | STRIP - insulation (4.2 ft) | A/R | |
| 16 | 91-8961 | HINGE - access panel | 3 | |
| 55-3027 | SCREW - hinge | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 12 | ||
| 17 | 99-8790 | TRAP - evaporator drain | 2 | |
| 55-2686 | CLAMP - hose (drain) | 2 | ||
| 18 | 98-5370 | COVER - access | 1 | |
| 99-1006 | FASTENER - screw to cover | 3 | ||
| 55-692 | WASHER - split | 3 | ||
| 19 | 91-292 | LATCH - safety | 1 | |
| 55-3027 | SCREW - safety latch | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT (hexstop) | 2 | ||
| 20 | 104-662 | MOTOR (20VAC, 3 phase) | 2 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | WASHER | 16 | ||
| 55-4954 | NUT | 8 | ||
| 21 | 77-2519 | WHEEL - blower (ccw, rear) | 1 | |
| 22 | 33-1870 | SEAL - shaft | 2 | |
| 23 | 98-5367 | BRACKET - motor | 2 | |
| 55-3490 | SCREW - bracket | 12 | ||
| 55-2958 | FLATWASHER | 24 | ||
| 55-4954 | NUT | 12 | ||
| 24 | 55-9134 | CONNECTOR - conduit | 4 | |
| 55-2635 | NUT - connector | 4 | ||
| 25 | 91-8949 | TUBE - conduit (20 in) | 2 |
