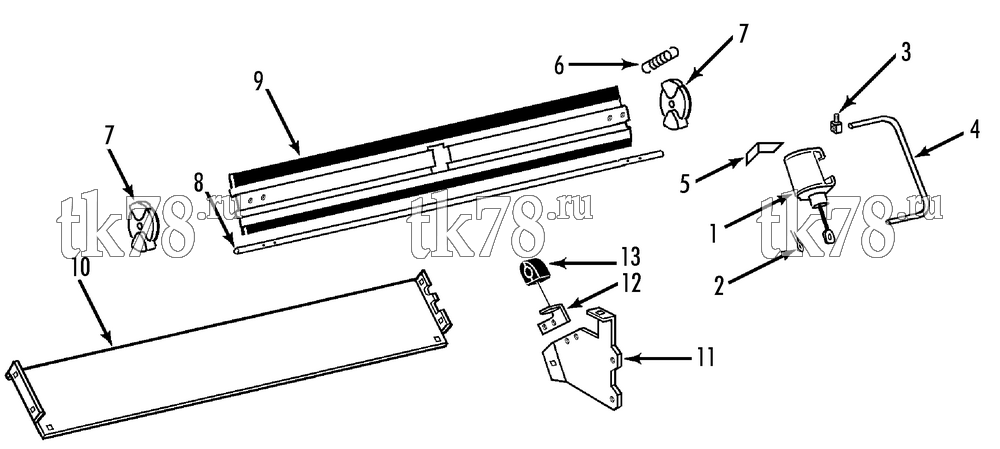

Установкa Thermo King схема DAMPER GROUP – 148C6
Обновление от: 11/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 99-3095 | COVER - plunger | 1 | ||
| 55-2762 | BOLT - eye | 1 | ||
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 55-6994 | SCREW - solenoid | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7740 | FLATWASHER | 4 | ||
| 91-3944 | NUTSTRIP - solenoid | 2 | ||
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 2 | 55-2550 | PIN - cotter | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 55-7374 | SCREW - special (solenoid rod) | 1 | |
| 55-7033 | FLATWASHER | 2 | ||
| 55-7034 | NUT | 1 | ||
| 4 | 99-9953 | ROD - damper solenoid | 1 | |
| 5 | 99-2244 | STRAP - ground (solenoid) | 1 | |
| 6 | 91-861 | SPRING - damper blade | 2 | |
| 7 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 55-7366 | SCREW - bearing | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 4 | ||
| 8 | 92-9436 | ROD - blade | 1 | |
| 55-6534 | FLATWASHER - damper blade | 2 | ||
| 9 | 91-1843 | BLADE - damper | 1 | |
| 10 | 91-3942 | PANEL - damper stop | 1 | |
| 11 | 91-3943 | BRACKET - housing support | 1 | |
| 12 | 91-1848 | ANGLE - damper blade clamp | 1 | |
| 13 | 55-6558 | CLAMP - damper blade | 1 | |
| 55-6994 | SCREW - clamp | 2 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 2 |
