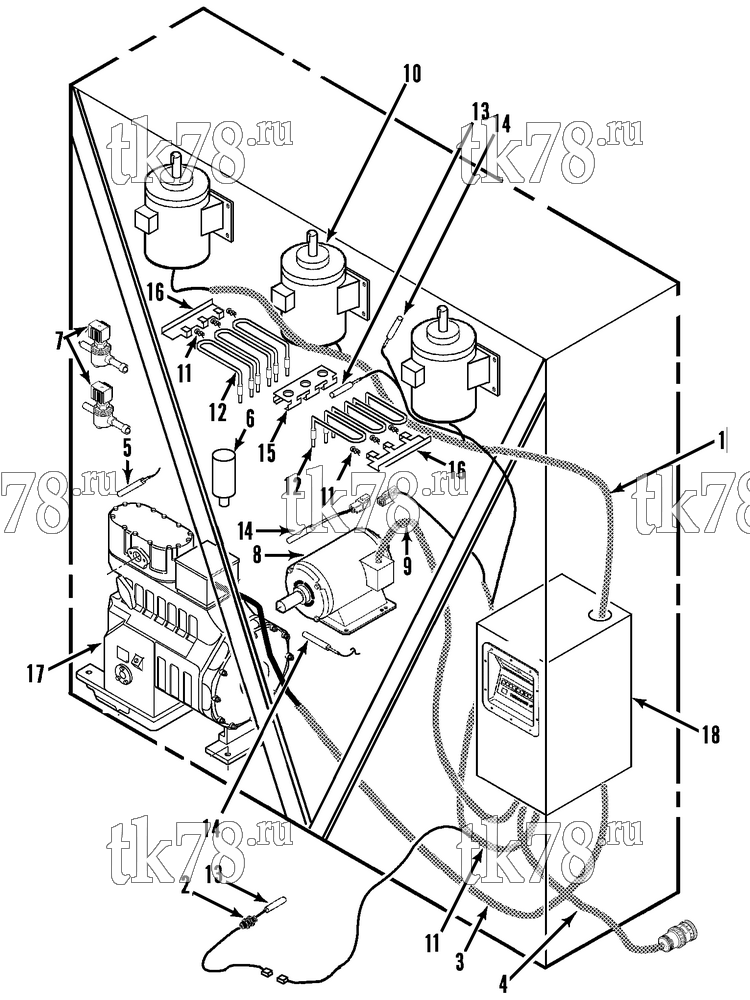

Установкa Thermo King схема ELECTRICAL COMPONENTS – 148A2
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2205 | HARNESS - evaporator | 1 | |
| 2 | 91-8206 | CAP | 1 | |
| 33-2960 | GASKET | 1 | ||
| 3 | 41-1423 | HARNESS - compressor | 1 | |
| 4 | 41-2213 | CABLE - power (complete) | 1 | |
| 504-112 | CABLE - power | 1 | ||
| 41-2471 | TERMINAL - spade | 4 | ||
| 41-1976 | PLUG - electrical | 1 | ||
| 5 | 41-2447 | SENSOR - head temperature | 1 | |
| 6 | 504-980 | KVQ 28 ACTUATOR (see 146E6) | 1 | |
| 7 | 41-2603 | WIRING - KVQ actuator | 2 | |
| 8 | 41-5460 | COIL - valve (24V, 50/60 Hz) | 1 | |
| 8 | 104-639 | MOTOR - condenser fan (see 146D1) | 1 | |
| 9 | 41-2504 | HARNESS - condenser fan | 1 | |
| 10 | 104-691 | MOTOR - evaporator fan (see 146D2) | 3 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 11 | 91-8140 | SPRING - heater | 6 | |
| 12 | 45-1791 | HEATER | 6 | |
| 13 | 41-741 | SENSOR - temp graded | 3 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 14 | 41-742 | SENSOR - temp ungraded | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 15 | 509-1763 | BRACKET - heater | 1 | |
| 16 | 509-1767 | BRACKET - heater | 2 | |
| 55-8891 | SCREW - bracket | 11 | ||
| 17 | 502-254 | COMPRESSOR (see 146D4) | 1 | |
| 18 | NSS | BOX - control (see 146D6) | 1 | |
| 55-7172 | SCREW - control box | 4 | ||
| 55-6995 | WASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 4 |
