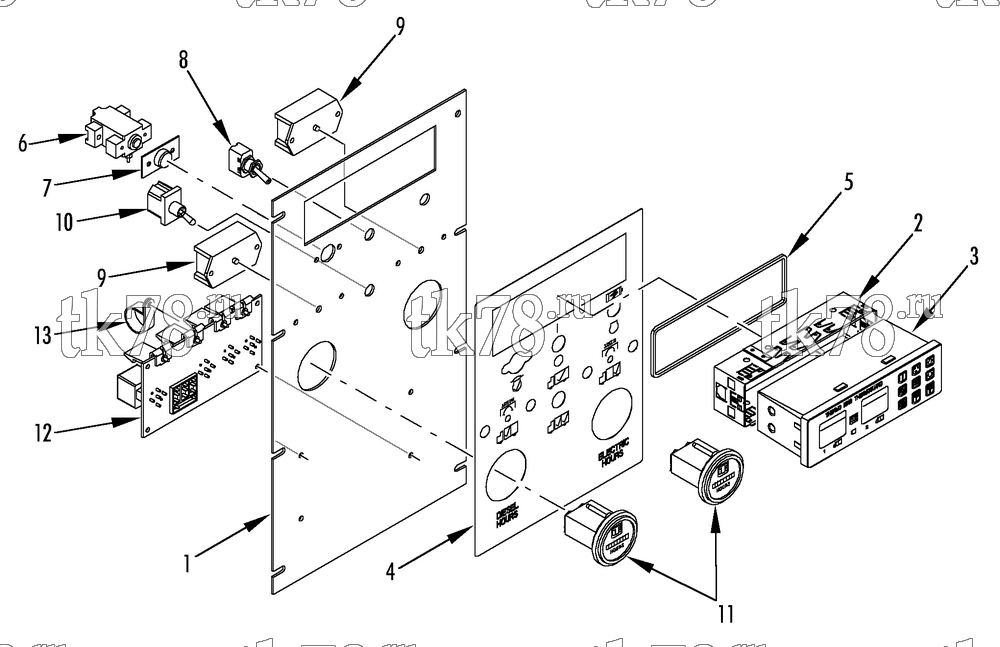

Установкa Thermo King схема CONTROL PANEL – 147E8
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8825 | PANEL - control | 1 | |
| 55-2957 | SCREW - panel | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 2 | 92-5199 | BRACKET - controller | 1 | |
| 55-5975 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 3 | 41-3310 | CONTROLLER | 1 | |
| 91-8118 | FACEPLATE | 1 | ||
| 4 | 91-8824 | NAMEPLATE - panel | 1 | |
| 5 | 33-3201 | GASKET - controller | 1 | |
| 6 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 55-5974 | SCREW - switch | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 7 | 44-2119 | SEAL - pushbutton | 1 | |
| 8 | 44-1357 | SWITCH - toggle | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 9 | 44-6688 | SWITCH - temperature | 2 | |
| 55-5974 | SCREW - switch | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | LOCKNUT | 4 | ||
| 10 | 44-2368 | SWITCH - toggle | 1 | |
| 11 | 44-8764 | HOURMETER | 2 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 12 | 41-2600 | BOARD - pc (see 147E9) | 1 | |
| 55-2748 | SCREW - board | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 44-5710 | SPACER | 4 | ||
| 55-7585 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 13 | 55-6052 | CLAMP - harness | 1 |
