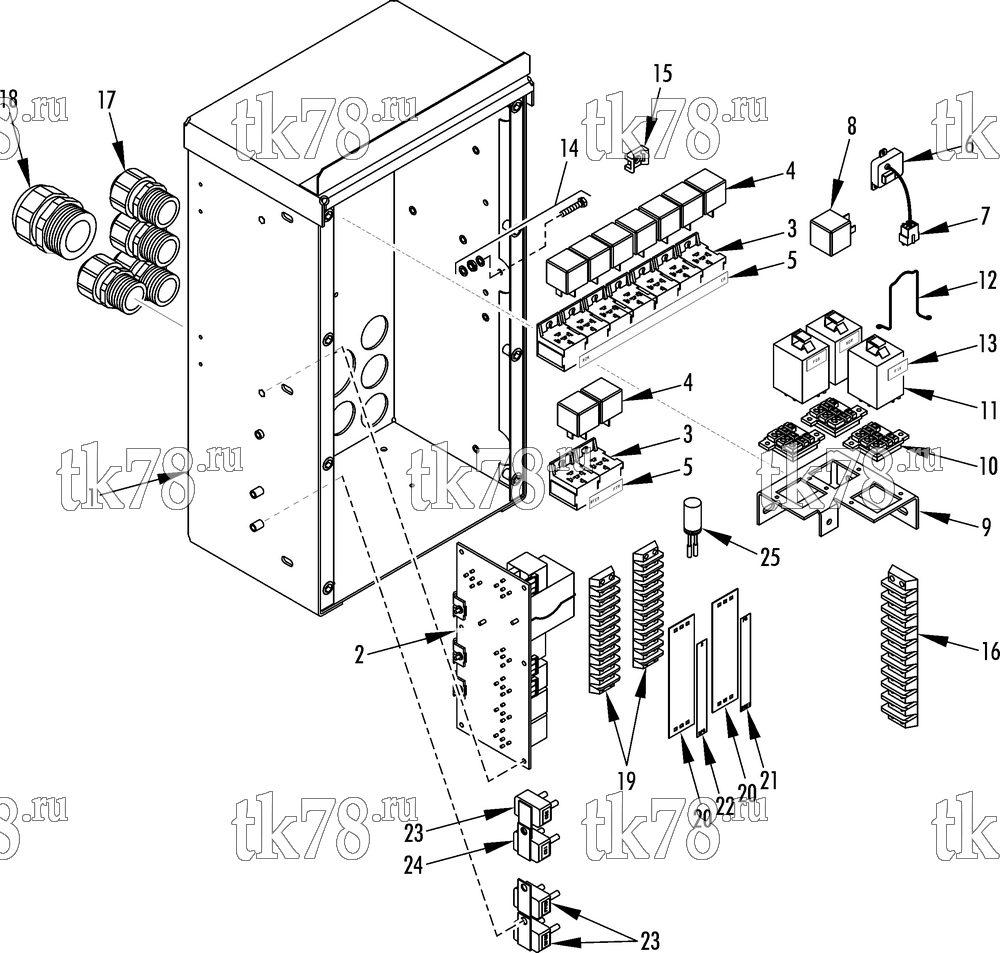

Установкa Thermo King схема LOW VOLTAGE CONTROL BOX – 147E7
Обновление от: 4/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5348 | BOX - control | 1 | |
| 55-6722 | INSERT (10-32, aluminum) | 10 | ||
| 55-5206 | INSERT (10-32, stainless steel) | 1 | ||
| 55-8711 | INSERT (1/4-20) | 8 | ||
| 55-8122 | INSERT (8-32) | 9 | ||
| 55-7662 | STUD (6-32) | 2 | ||
| 2 | 44-9865 | BOARD - pc option (see 147D14) | 1 | |
| 91-2528 | GUIDE - board | 2 | ||
| 55-4222 | SCREW - board | 4 | ||
| 55-5997 | FLATWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 3 | 44-5537 | SOCKET - relay | 7 | |
| 55-3015 | SCREW - socket | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 4 | 41-895 | RELAY - mini | 9 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 5 | 91-8815 | MARKSTRIP (R2K, ER) | 1 | |
| 91-8816 | MARKSTRIP (RFER, FTR) | 1 | ||
| 6 | 41-7067 | MODULE - timer | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 7 | 44-5827 | CONNECTOR - male (4-pin) | 1 | |
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 8 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 | |
| 9 | 91-8811 | BRACKET - relay | 1 | |
| 55-3027 | SCREW - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 10 | 44-3184 | SOCKET - relay | 3 | |
| 11 | 44-3186 | RELAY (3pdt) | 3 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 12 | 99-2027 | SPRING - holddown | 3 | |
| 55-2270 | RIVET - spring | 6 | ||
| 13 | 91-8821 | MARKSTRIP (FDR) | 1 | |
| 91-8822 | MARKSTRIP (RDR) | 1 | ||
| 91-8823 | MARKSTRIP (FIK) | 1 | ||
| 14 | 55-3000 | SCREW - ground | 5 | |
| 55-2996 | LOCKWASHER | 5 | ||
| 55-346 | NUT | 10 | ||
| 15 | 99-3281 | MOUNT - cable tie | 5 | |
| 55-5130 | RIVET - mount | 5 | ||
| 16 | 44-3414 | BOARD - terminal | 1 | |
| 55-3511 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 44-2915 | STRIP - jumper | 1 | ||
| 17 | 55-5919 | CONNECTOR - liquid tite | 4 | |
| 55-2636 | NUT - connector | 4 | ||
| 18 | 55-8661 | CONNECTOR - liquid tite | 1 | |
| 55-8662 | LOCKNUT - connector | 1 | ||
| 19 | 44-4186 | BOARD - terminal | 2 | |
| 55-3022 | SCREW - board | 4 | ||
| 55-9097 | STANDOFF | 4 | ||
| 44-3579 | STRIP - jumper | 1 | ||
| 20 | 41-2605 | COVER - terminal board | 2 | |
| 21 | 91-8812 | MARKSTRIP | 1 | |
| 22 | 91-8813 | MARKSTRIP | 1 | |
| 23 | 44-3181 | BREAKER - circuit (CB2, CB3, CB4) | 3 | |
| 24 | 44-5575 | BREAKER - circuit (CB1) | 1 | |
| 91-8817 | MARKSTRIP (RFCB) | 1 | ||
| 91-8818 | MARKSTRIP (FFCB) | 1 | ||
| 91-8819 | MARKSTRIP (CBI) | 1 | ||
| 91-8820 | MARKSTRIP (CB2) | 1 | ||
| 55-3027 | SCREW - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 25 | 41-2593 | CAPACITOR - assembly | 1 | |
| 44-8759 | CAPACITOR (only) | 1 |
