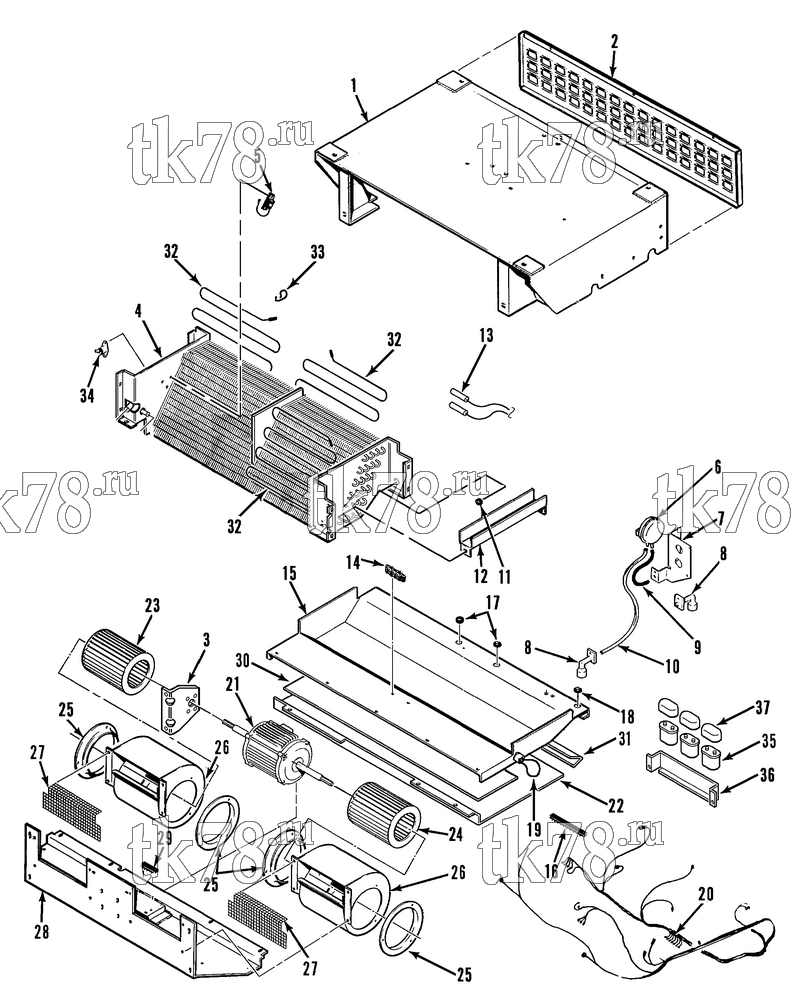

Установкa Thermo King схема EVAPORATOR STRUCTURAL/ELECTRICAL (ECT-I 50, 714465) – 147E2
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4033 | HOUSING - evaporator | 1 | |
| 2 | 98-3490 | GRILLE - evaporator | 1 | |
| 55-2977 | SCREW - grille | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4415 | NUT - captive | 6 | ||
| 3 | 91-1273 | BRACKET - motor | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 4 | 67-1522 | COIL - evaporator | 1 | |
| 55-2977 | SCREW - coil to housing | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 5 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5638 | SCREW - switch | 2 | ||
| 6 | 66-4487 | SWITCH - air pressure differential | 1 | |
| 7 | 91-765 | BRACKET - air switch | 1 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 8 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 9 | 99-1143 | HOSE (black) | A/R | |
| 10 | 99-1142 | HOSE (clear) | A/R | |
| 11 | 33-740 | GROMMET (7/16 id) | 2 | |
| 12 | 91-3331 | CHANNEL - harness | 1 | |
| 13 | 41-418 | SENSOR | 2 | |
| 55-547 | CLAMP - sensor | 2 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 1 | ||
| 14 | 44-4449 | BOARD - terminal (7 terminal) | 1 | |
| 91-1666 | MARKSTRIP - terminal board | 1 | ||
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 15 | 98-5350 | PAN - defrost drain | 1 | |
| 33-1708 | INSULATION - drain pan | 1 | ||
| 55-2977 | SCREW - pan | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 91-841 | NAMEPLATE | 1 | ||
| 16 | 44-4186 | BOARD - terminal (10 terminal) | 1 | |
| 91-1642 | NAMEPLATE | 1 | ||
| 55-3684 | SCREW - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 17 | 33-451 | GROMMET (3/8 id) | 4 | |
| 18 | 33-452 | GROMMET (3/4 id) | 1 | |
| 19 | 44-6026 | WIRE - resistance (50 ft) | A/R | |
| 20 | 41-2601 | HARNESS - low voltage (for connectors see 112D9) | 1 | |
| 21 | 44-7172 | MOTOR - evaporator | 1 | |
| 44-7050 | BRUSH - motor | 2 | ||
| 77-1926 | BEARING | 2 | ||
| 55-6285 | SCREW (5/16-18 x .75) | 4 | ||
| 55-6286 | SCREW (5/16-18 x 1.25) | 4 | ||
| 55-5900 | CONNECTOR - liquid tite | 1 | ||
| 22 | 91-1636 | COVER - heater | 1 | |
| 23 | 77-1667 | WHEEL - blower (cw, see note) | 1 | |
| 24 | 77-1668 | WHEEL - blower (ccw, see note) | 1 | |
| 25 | 77-1669 | ORIFICE - blower | 4 | |
| 55-5635 | SCREW - orifice | 12 | ||
| 26 | 99-9202 | HOUSING - blower | 2 | |
| 55-2977 | SCREW - housing | 8 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 8 | ||
| 27 | 91-770 | SCREEN | 2 | |
| 28 | 91-3339 | PANEL - evaporator motor | 1 | |
| 99-3247 | NAMEPLATE - R502 | 2 | ||
| 55-2977 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 29 | 44-2876 | BOARD - terminal (3 terminal, 20 amp) | 1 | |
| 91-8839 | MARKSTRIP | 1 | ||
| 30 | 44-8419 | HEATER - drain pan | 1 | |
| 91-4627 | PAD - insulating heater | 1 | ||
| 31 | 91-1633 | ANGLE - heater | 1 | |
| 32 | 45-1403 | HEATER (825W) | 3 | |
| 33 | 91-240 | RETAINER - heater | 24 | |
| 34 | 44-6691 | SWITCH - high temperature cutout | 1 | |
| 55-5638 | SCREW - switch | 2 | ||
| 35 | 44-4299 | CAPACITOR (4 MFD) | 3 | |
| 36 | 91-1634 | BRACKET - capacitor | 1 | |
| 37 | 91-1638 | BOOT - capacitor | 3 |
