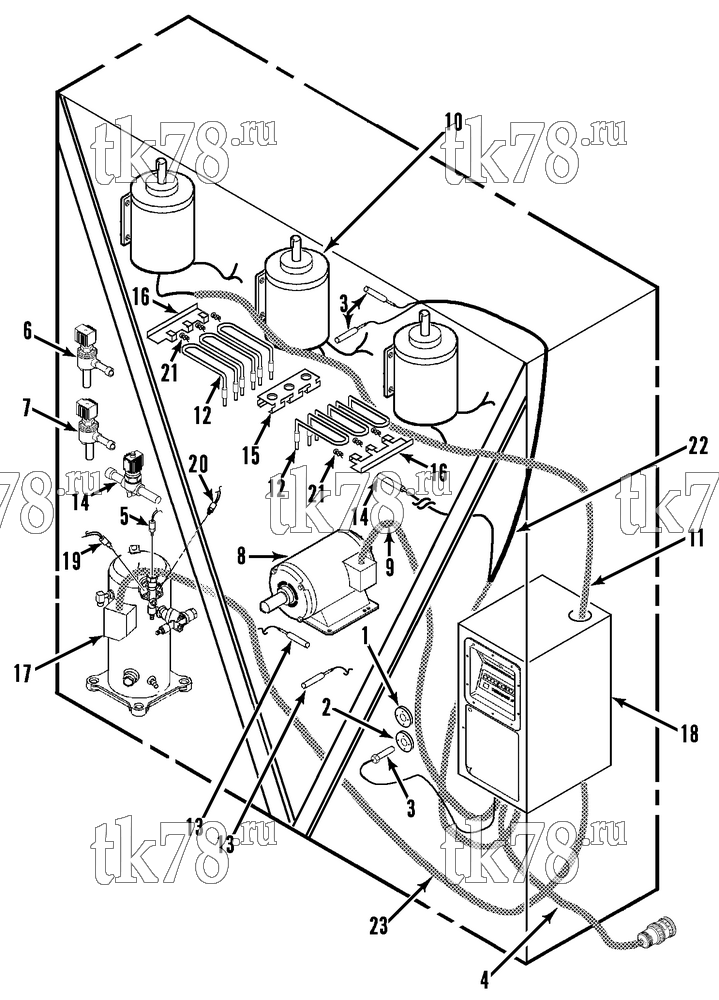

Установкa Thermo King схема ELECTRICAL COMPONENTS – 146E2
Обновление от: 6/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8098 | RETAINER - probe | 1 | |
| 2 | 91-8206 | CAP - retainer | 1 | |
| 33-2960 | GASKET - probe | 2 | ||
| 3 | 40-974 | KIT - sensor (supply air, return air & evap coil, graded) | 3 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 4 | 45-1908 | CABLE - power | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 44-4051 | PLUG - power (MIPCO) | 1 | ||
| 41-2820 | PLUG - power (ESL) | 1 | ||
| 44-9891 | TERMINAL - pin (cable end) | 3 | ||
| 44-6310 | TERMINAL - pin (plug end) | 4 | ||
| 5 | 41-2447 | SENSOR - head temperature | 1 | |
| 6 | 60-327 | VALVE - solenoid (liquid injection) | 1 | |
| 7 | 60-328 | VALVE - solenoid | 1 | |
| 8 | 104-639 | MOTOR - condenser fan (see 143D3) | 1 | |
| 9 | 41-2349 | HARNESS - main (external) | 1 | |
| 10 | 104-691 | MOTOR - evaporator | 3 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 11 | 41-2205 | HARNESS - evaporator | 1 | |
| 12 | 45-1791 | HEATER - evaporator (680V) | 6 | |
| 13 | 40-975 | SENSOR - temperature (condenser coil & ambient, ungraded) | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 91-2197 | BRACKET - sensor | 2 | ||
| 14 | 66-7865 | VALVE - modulation (see 123A8) | 1 | |
| 15 | 91-8142 | BRACKET - heater | 1 | |
| 16 | 91-8467 | BRACKET - heater | 1 | |
| 17 | 20-166 | COMPRESSOR - scroll (CSR 40, see 146E1) | 1 | |
| 18 | NSS | BOX - control (CSR 40, see 143D1) | 1 | |
| 19 | 41-1642 | SWITCH - hpco (CSR 40) | 1 | |
| 20 | 41-4523 | SWITCH - hpco | 1 | |
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 21 | 91-8140 | SPRING - heater | 6 | |
| 22 | 41-2400 | HARNESS - sensor (external) | 1 | |
| 23 | 40-781 | CABLE - power | 1 |
