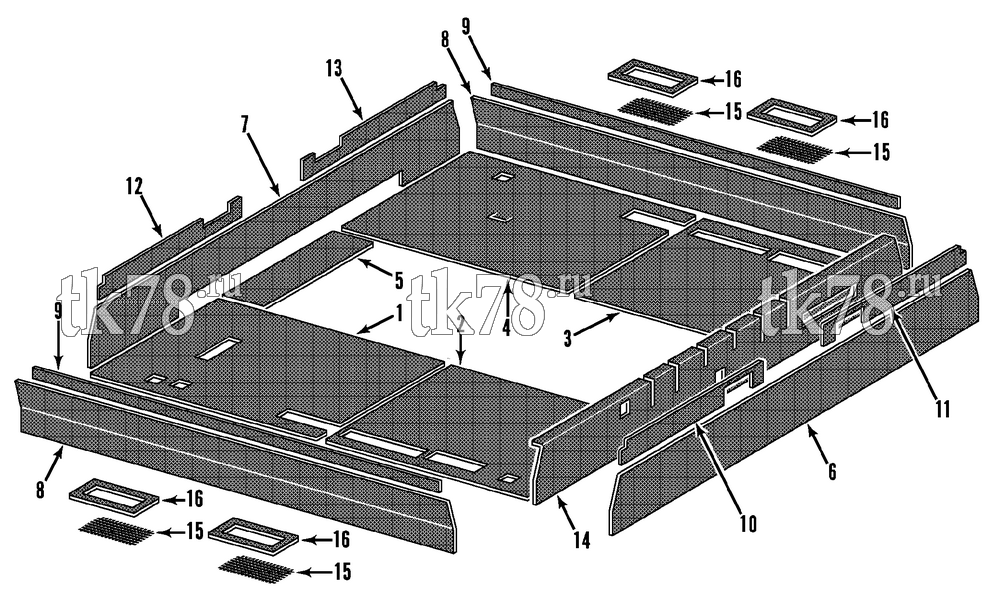

Установкa Thermo King схема EVAPORATOR INSULATION – 144E3
Обновление от: 12/5/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8506 | INSULATION (front, roadside) | 1 | |
| 2 | 91-8507 | INSULATION (rear, roadside) | 1 | |
| 3 | 91-8509 | INSULATION - floor (rear) | 1 | |
| 4 | 91-8508 | INSULATION (front, curbside) | 1 | |
| 5 | 91-8504 | INSULATION (center, curbside) | 1 | |
| 6 | 91-8505 | INSULATION (center, roadside) | 1 | |
| 7 | 91-8495 | INSULATION - bulkhead (front) | 1 | |
| 8 | 91-8502 | INSULATION - bulkhead (side) | 2 | |
| 9 | 91-8503 | INSULATION - bulkhead (side) | 2 | |
| 10 | 91-8500 | INSULATION - bulkhead (rear, roadside) | 1 | |
| 11 | 91-8499 | INSULATION - bulkhead (rear, curbside) | 1 | |
| 12 | 91-8496 | INSULATION - bulkhead (front, curbside) | 1 | |
| 13 | 91-8498 | INSULATION - bulkhead (front, roadside) | 1 | |
| 14 | 91-8501 | INSULATION - bulkhead (rear) | 1 | |
| 15 | 91-3957 | SCREEN - duct | 4 | |
| 16 | 33-2635 | GASKET - duct | 4 |
